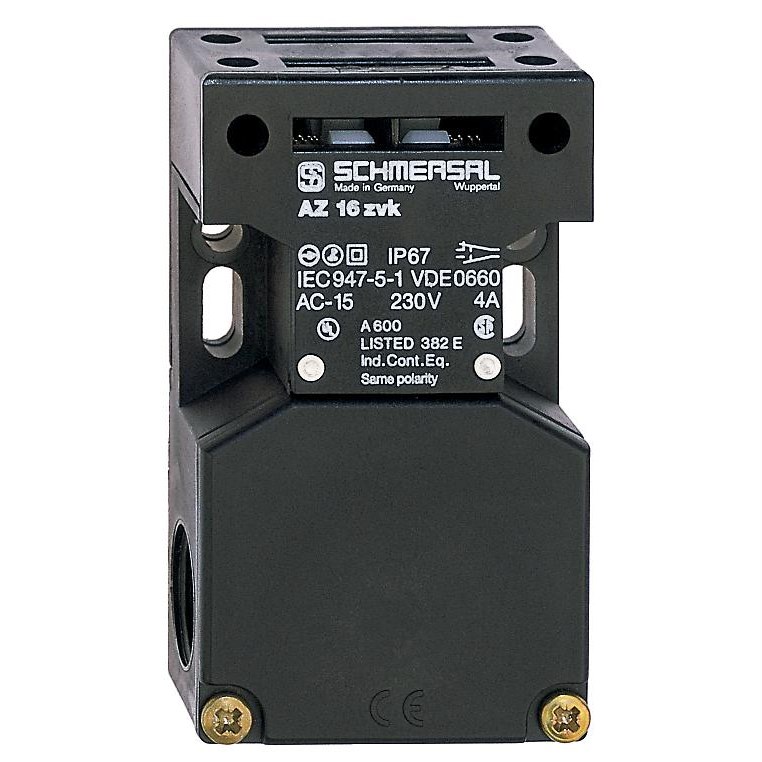

Schmersal 101164456 Safety Switch with Separate Actuator 230VAC, 24VDC 1NO+1NC

Product Code: 101164456

  • Handles 230 VAC & 24 VDC, 1000 A
  • Durable with 1 million cycles
  • IP67 for robust protection
  • Operates in -30 to 80°C range
  • Complies with EN IEC & ISO standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Cable Cross Section (mm²) 2.5
Pollution Degree 3
Rated Insulation Voltage (V) 500
Rated Impulse Withstand Voltage (kV) 6
Maximum Ambient Temperature (°C) 80
Latching Force (N) 5
Minimum Cable Cross Section (mm²) 0.25
Maximum Actuating Speed (m/s) 2
Rated Operational Current AC-15 (A) Auxiliary Contacts - 4A, Safety Contacts - 4A
Rated Operational Current DC-13 (A) Auxiliary Contacts - 4A, Safety Contacts - 4A
No. of Safety Contacts 2
No. of Cable Glands 3
Thermal Test Current (A) 10
Minimum Ambient Temperature (°C) -30
Termination Screw Terminals
Sensor Length (mm) 30
No. of Auxiliary Contacts 1
Switching Principle Slow Action, Positive Break NC Contact
Switching Frequency 4000/h
Sensor Width (mm) 52
Sensor Height (mm) 90
Rated Short-circuit Current (A) 1000
Minimum Mechanical Life 1000000 Operations
Positive Break Travel (mm) 8
Maximum Fuse Rating 6 A gG D-fuse
Switching Element NO Contact, NC Contact
Rated Operational Voltage AC-15 (V) 230V AC
Rated Operational Voltage DC-13 (V) 24 VDC
Maximum Storage Temperature (°C) 85
Minimum Storage Temperature (°C) -40
Product Type Safety Switch with Separate Actuator
Brand SCHMERSAL
Action Slow Action, Positive Break NC Contact
Actuating Speed 2 m/s
Cable Entry 3 x M20 x 1.5
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 1000000 Cycles
Operational Temperature -30 to 80 deg C
Rated Current 1000 A
Rated Frequency 4000/h
Rated Insulation Voltage 500 V
Rated Voltage 230 VAC, 24 VDC
Sensor Size 30 mm L x 52 mm W x 90 mm H
Standards and Approvals EN IEC 60947-5-1, EN ISO 13849-1
