Specifications

Cable Length (m)	5
Pollution Degree	3
Rated Insulation Voltage (V)	250
Rated Impulse Withstand Voltage (kV)	4
Maximum Ambient Temperature (°C)	80
Latching Force (N)	5
Maximum Actuating Speed (m/s)	2
Rated Operational Current AC-15 (A)	Auxiliary Contacts - 4A, Safety Contacts - 4A
Rated Operational Current DC-13 (A)	Auxiliary Contacts - 4A, Safety Contacts - 4A
No. of Cable Glands	1
Thermal Test Current (A)	10
Minimum Ambient Temperature (°C)	-30
Termination	Cable
Wire Cross Section (mm²)	0.75mm² (Diameter)
Sensor Length (mm)	30
No. of Auxiliary Contacts	1
Switching Principle	Slow Action, Positive Break NC Contact
Switching Frequency	2000/h
Sensor Width (mm)	30
Sensor Height (mm)	65
Rated Short-circuit Current (A)	1000
Minimum Mechanical Life	1000000 Operations
Positive Break Travel (mm)	11
Maximum Fuse Rating	6 A gG D-fuse
Switching Element	NO Contact, NC Contact
Rated Operational Voltage AC-15 (V)	230V AC
Rated Operational Voltage DC-13 (V)	24 VDC
No. of Safety Contacts	1

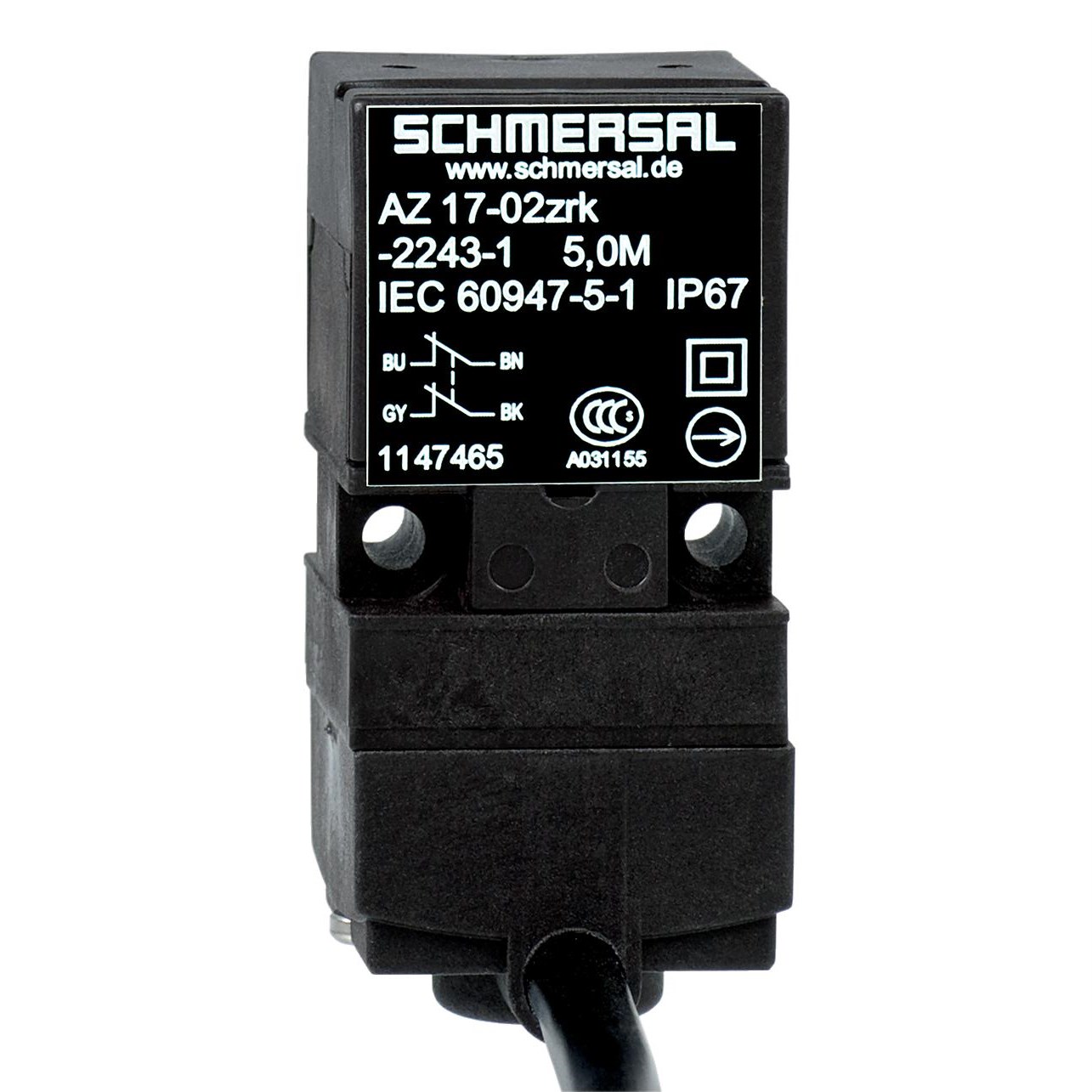

Product Type	Safety Switch with Separate Actuator
Brand	SCHMERSAL
Action	Slow Action, Positive Break NC Contact
Actuating Speed	2 m/s
Cable Entry	Rear
Cable Length	5 m
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	1000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	1000 A
Rated Frequency	2000/h
Rated Insulation Voltage	250 V
Rated Voltage	230 VAC, 24 VDC
Sensor Size	30 mm L x 30 mm W x 65 mm H
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1
