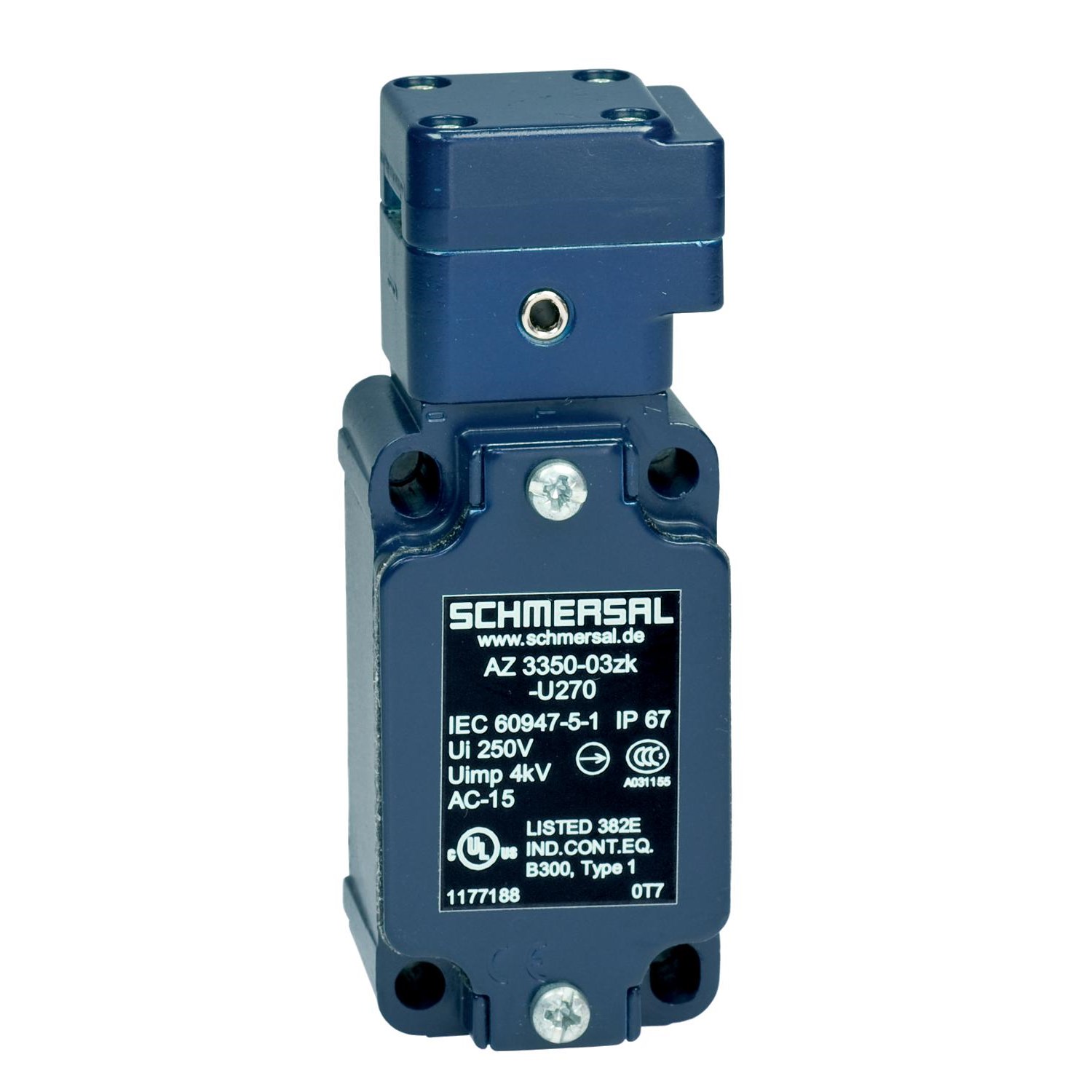

Schmersal 101214052 Safety Switch with Separate Actuator 250VAC NC

Product Code: 101214052

  • Rated for 250 VAC and 4 A
  • Durable aluminium housing, IP67 protection
  • Long mechanical life of 1 million cycles
  • Operates in temperatures from -30 to 90°C
  • Complies with cULus and EN standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 90
Minimum Temperature (°C) -30
Product Type Safety Switch with Separate Actuator
Brand SCHMERSAL
Series AZ3350
Action Slow Action
Actuating Speed 0.2 m/s
Contact Configuration NC
Contact Material Silver
Degree of Protection IP67
Housing Material Aluminium
Mechanical Life 1000000 Cycles
Mounting Type Screw
Operational Temperature -30 to 90 deg C
Rated Current 4 A
Rated Frequency 1200/h
Rated Insulation Voltage 250 V
Rated Voltage 250 VAC
Sensor Size 38 mm L x 40.5 mm W x 114 mm H
Standards and Approvals cULus, EC002592, EN IEC 60947-5-1, EN ISO 13849-1, EN ISO 14119
Weight 245 g

Description

Ensure machine safety with the Schmersal AZ3350 series safety switch, designed for robust performance with a metal enclosure and a latching handle. This safety switch features three safety contacts and operates with a reliable screw connection terminal. The switching element is an opener (NC) with a thermal test current of 10 A. It's suitable for various applications with a utilisation category of AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 4 A. With no auxiliary contacts, this switch focuses on secure operations in industrial settings. Trust in Schmersal's commitment to machine safety with this efficient and durable safety switch.
