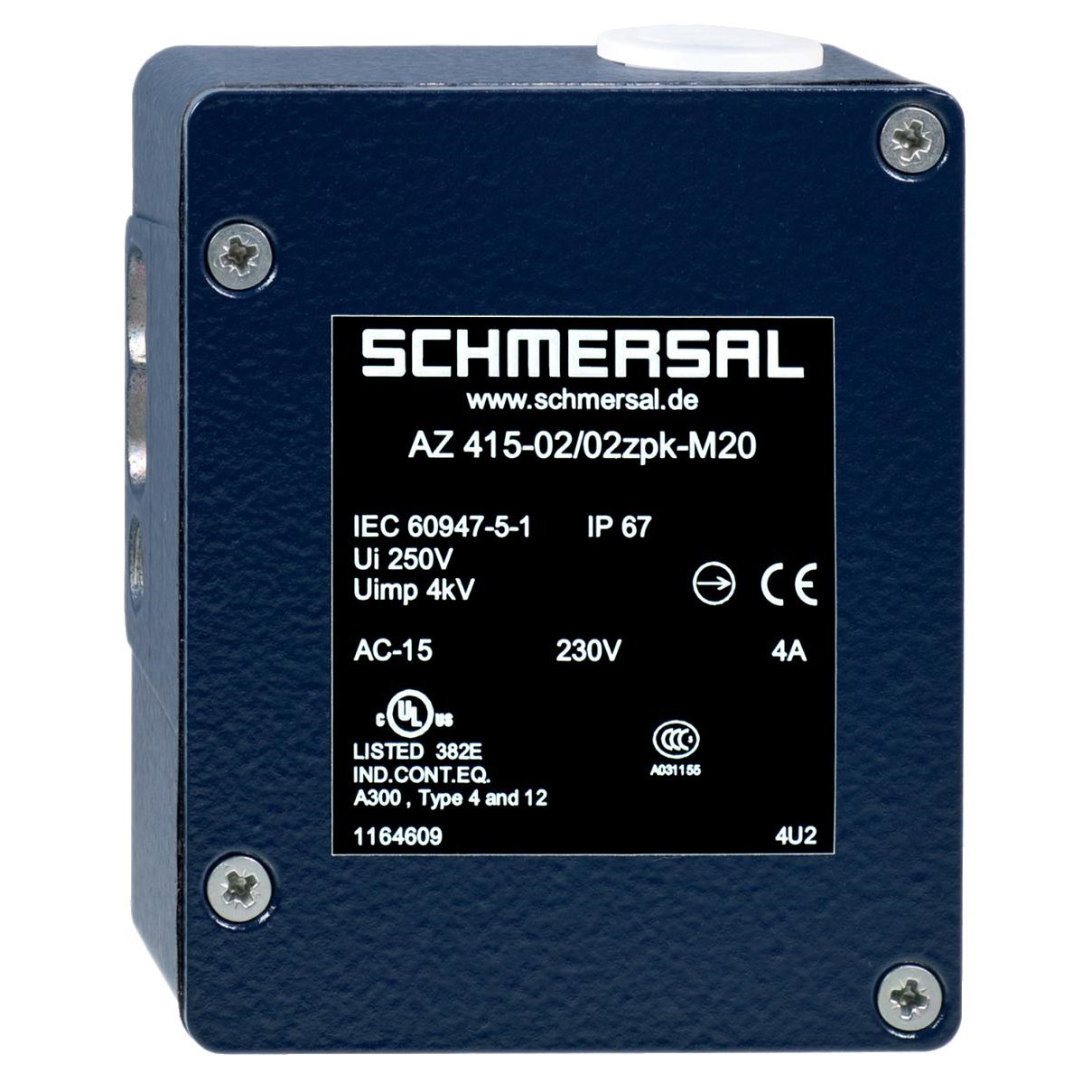

Schmersal 101164609 Safety Switch with Separate Actuator 250VAC NC

Product Code: 101164609

  • Rated for 250 VAC, 4 A with NC contact config.
  • Durable aluminium housing, IP67 protection.
  • Operates in -25 to 80°C temp. range.
  • Long mechanical life of 1 million cycles.
  • Complies with cULus, EN IEC standards.
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -25
Product Type Safety Switch with Separate Actuator
Brand SCHMERSAL
Series AZ415
Action Slow Action
Actuating Speed 0.2 m/s
Contact Configuration NC
Contact Material Silver
Degree of Protection IP67
Housing Material Aluminium
Mechanical Life 1000000 Cycles
Operational Temperature -25 to 80 deg C
Rated Current 4 A
Rated Insulation Voltage 250 V
Rated Voltage 250 VAC
Sensor Size 46.5 mm L x 84.6 mm W x 103.6 mm H
Standards and Approvals cULus, EC002592, EN IEC 60947-5-1, EN ISO 13849-1, EN ISO 14119
Weight 595 g

Description

Ensure machine safety with the Schmersal AZ415 safety switch, designed for robust performance with a metal enclosure and spring-loaded actuators. This switch features separate actuators and is suitable for securing two guard doors. It includes three auxiliary contacts and three safety contacts, ensuring reliable operation. The screw connection terminal connector provides a secure electrical connection, while the switching element comprises both NO and NC contacts for versatile integration into your safety system. With a thermal test current of 6 A, it operates efficiently at 230 VAC under AC-15 utilization category and at 24 VDC under DC-13 utilization category, both rated at 4 A. Ideal for engineers looking to maintain high standards of safety in machine operations.
