Specifications

Ambient Temperature Range (°C)	-30 °C to + 80 °C
Rated Insulation Voltage (V)	500
Weight (kg)	0.1
Enclosure Material	Plastic, Glass-fibre reinforced Thermoplastic
Maximum Switching Voltage DC (V)	24
Maximum Switching Voltage AC (V)	230
Sensor Length (mm)	52
Impulse Withstand Voltage (kV/1.2µS)	6
Sensor Width (mm)	75
Sensor Height (mm)	30
Minimum Mechanical Life	1,000,000 Operations
Maximum Switching Current (A)	4

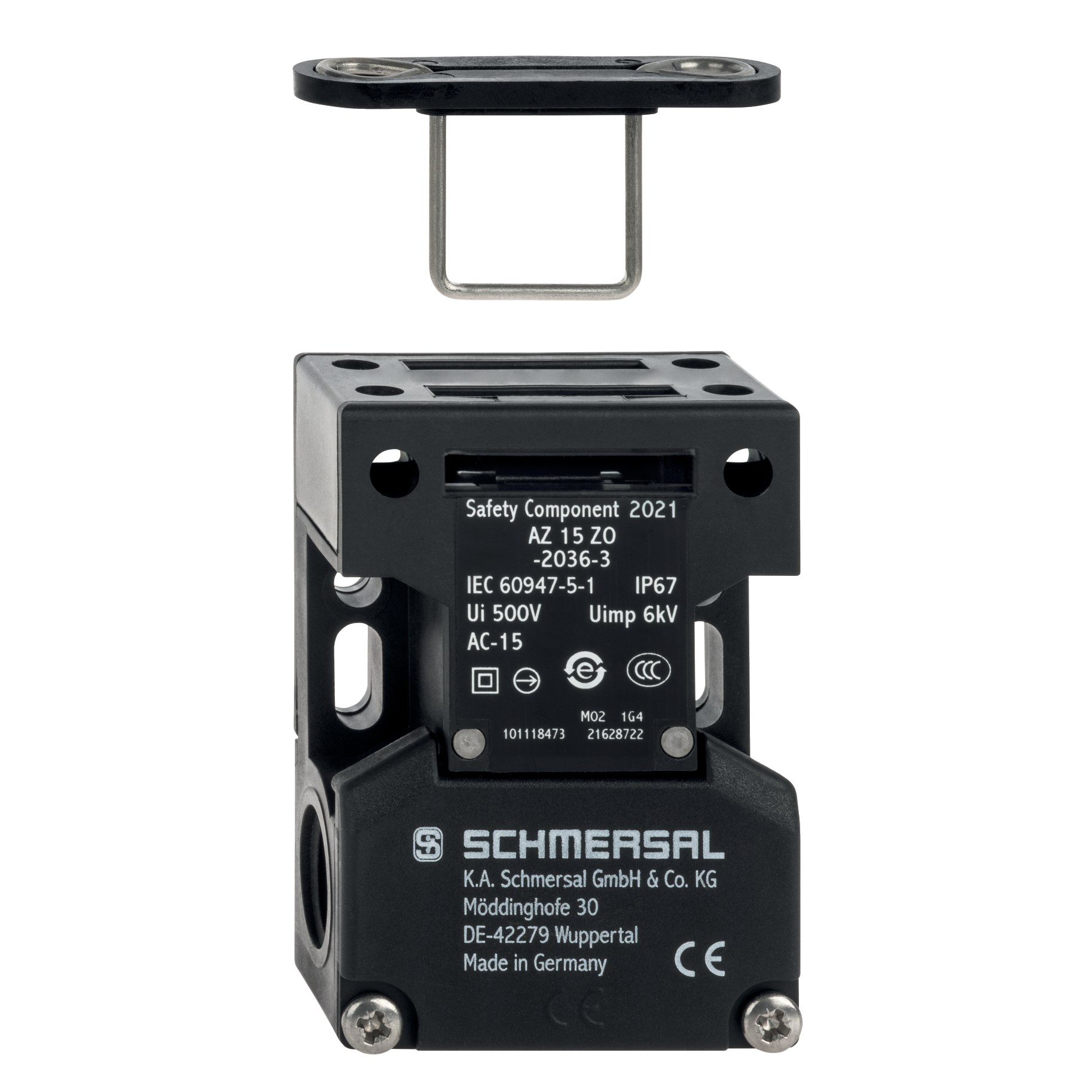

Product Type	Safety Switch
Brand	SCHMERSAL
Degree of Protection	IP67
Housing Material	Plastic, Reinforced Glass Fibre
Mechanical Life	1000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Insulation Voltage	500 V
Sensor Size	52 mm L x 75 mm W x 30 mm H
Weight	0.1 kg
