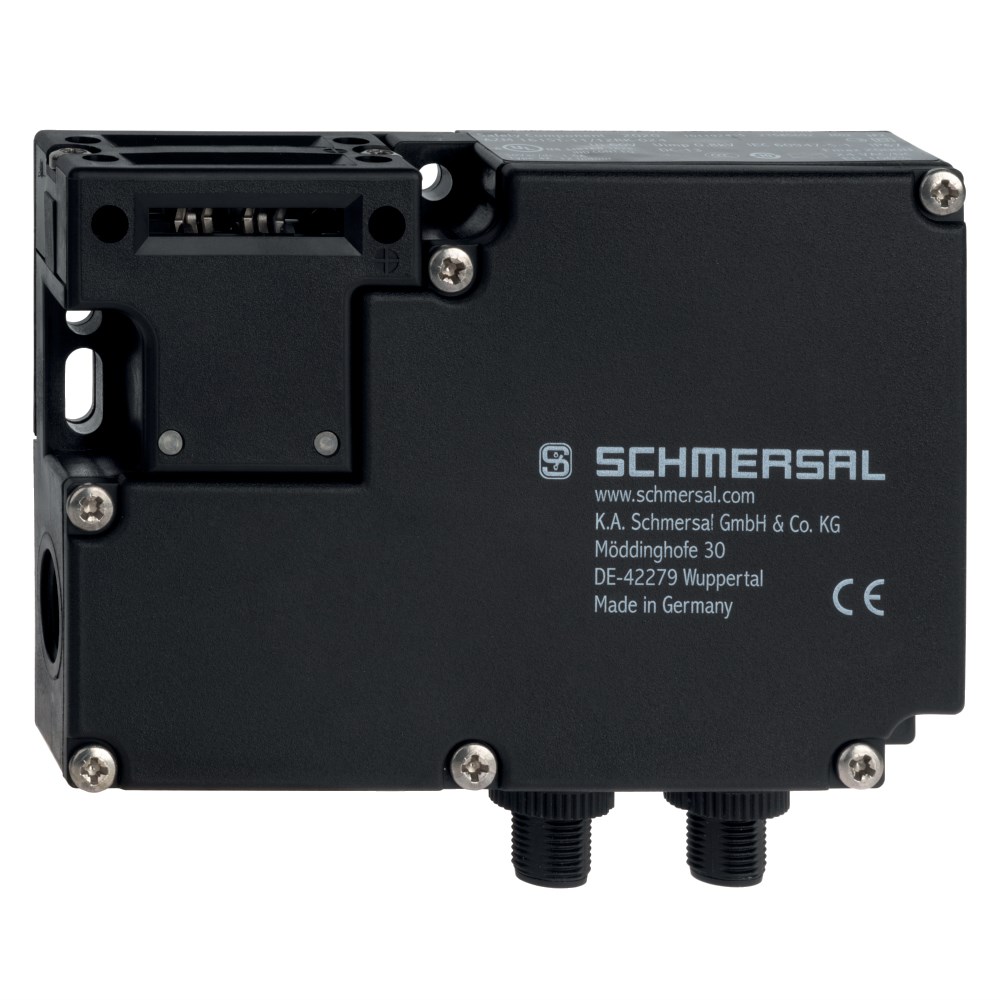

Schmersal 103008020 Solenid Interlock Switch 24/230VAC, 24VDC NO+NC

Product Code: 103008020

  • Dual voltage options: 24/230 VAC, 24 VDC
  • Durable with 1 million mechanical cycles
  • High protection rating: IP67
  • Compact size: 30x130x90 mm
  • Complies with EN IEC & ISO standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Solenid Interlock Switch
Brand SCHMERSAL
Series AZM161
Action Slow Action
Actuating Force 20 N
Actuating Speed 2 m/s
Contact Configuration NO+NC
Contact Material Silver
Degree of Protection IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 1000000 Cycles
Operational Temperature 60 deg C
Rated Current 1000 A
Rated Force 30 N
Rated Insulation Voltage 250 V
Rated Power 10 W
Rated Voltage 24/230 VAC, 24 VDC
Sensor Size 30 mm L x 130 mm W x 90 mm H
Standards and Approvals EN IEC 60947-5-1, EN ISO 13849-1
