Specifications

Maximum Cable Cross Section (mm²)	4
Rated Insulation Voltage (V)	250
Rated Impulse Withstand Voltage (kV)	6
Enclosure Material	Grey cast iron, painted
Utilisation Category	DC-13 \| AC-15
No. of Safety Contacts	1
Working Principle	RFID
Minimum Ambient Temperature (°C)	-30
Standards	EN IEC 60947-5-1 / EN IEC 60947-1
Sensor Length (mm)	76
Switching Principle	Slow action
EAN	4030660000000
eCl@ss Number, Version 9.0	27-27-26-01
Sensor Height (mm)	104
Rated Short-circuit Current (A)	1000
ETIM 7.0	EC001487
ETIM 6.0	EC000030
eCl@ss Number, Version 11.0	27-27-26-01
Minimum Mechanical Life	100 Cycles
Gross Weight (g)	298
Utilisation Category DC-13	1.5 A
Net Weight (g)	185
Cable Note	All indications including the conductor ferrules.
Maximum Fuse Rating	6 A gG D-fuse
Switching Element	NO contact, NC contact
Maximum Ambient Temperature (°C)	80
Minimum Cable Cross Section (mm²)	0.25
Maximum Actuating Speed (m/s)	0.2

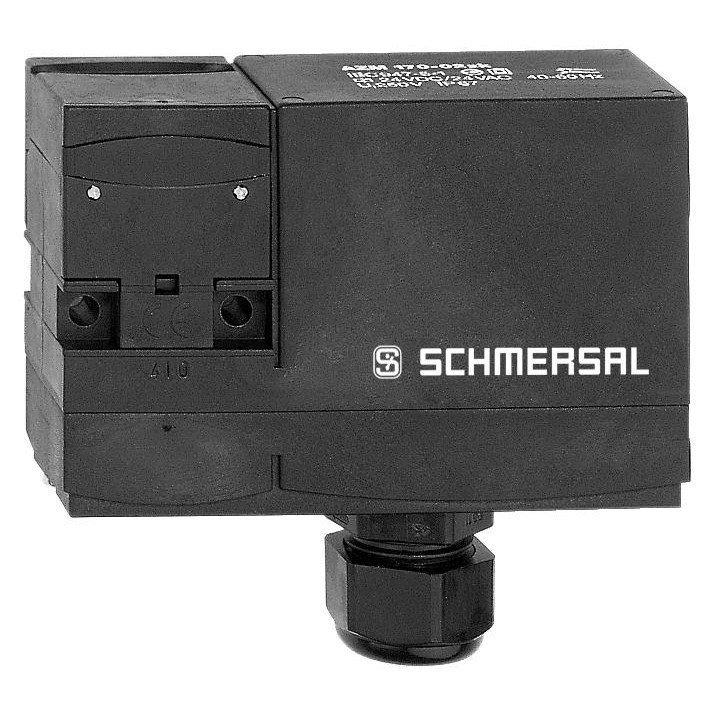

Product Type	Solenid Interlock Switch
Brand	SCHMERSAL
Action	Slow Action
Actuating Speed	0.2 m/s
Actuator Type	Roller Lever
Contact Configuration	NO+NC
Contact Material	Silver
Degree of Protection	IP40
Housing Material	Grey Cast Iron, Painted
Mechanical Life	100 Cycles
Operational Temperature	80 deg C
Rated Current	1000 A
Rated Insulation Voltage	250 V
Sensor Size	76 mm L x 104 mm H
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1
Terminal Type	Screw terminals M20 x 1.5
