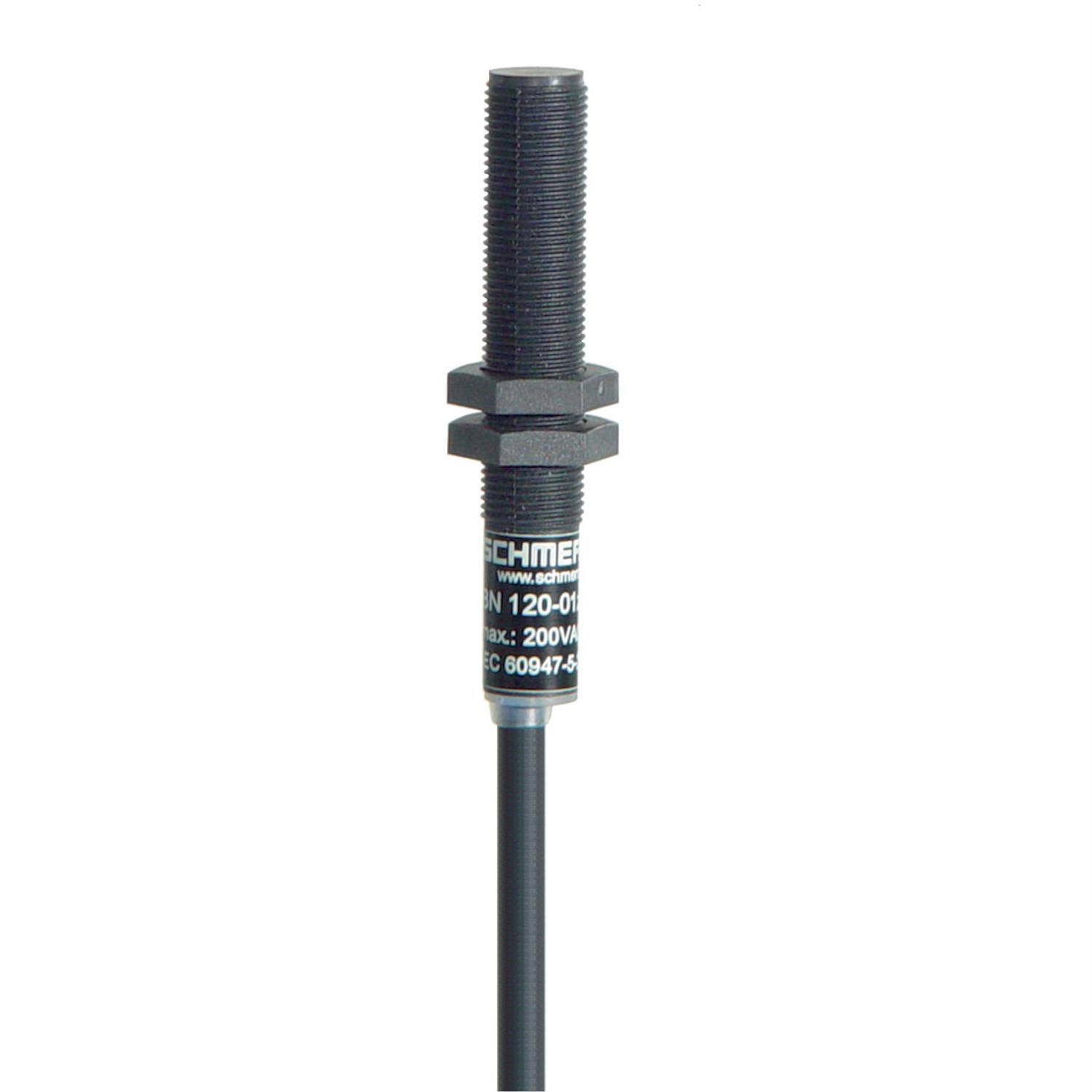

Discover the Schmersal BN 120 Series Magnetic Reed Switch, a robust position sensor designed for precision and durability. Encased in a thermoplastic housing with a bias magnet, this switch features a cylindrical thread design and comes equipped with a terminal connector cable for easy installation. With an actuation range of 5 mm to 50 mm from the side, it ensures reliable operation as an opener (NC) switching element.
Engineered for high-performance applications, the BN 120 can handle switching voltages up to 200 VAC and currents up to 1 A, with a maximum switching capacity of 30 W at frequencies up to 300 Hz. Its reed contacts are centrally mounted for stability, and while actuators are not included, they can be ordered separately to meet your specific needs.
Built for longevity and resilience in challenging environments, this magnetic reed switch operates between -25°C and 70°C and boasts an IP67 rating according to IEC/EN 60530 standards. Whether you're dealing with industrial controls or safety applications, trust in the long life and reliability that Schmersal's expertly crafted sensors provide.
