Specifications

Maximum Ambient Temperature (°C)	90
Maximum Switching Capacity (W)	120
Maximum Switching Current (A)	3
Maximum Actuating Speed (m/s)	18
Minimum Ambient Temperature (°C)	-25
Sensor Length (mm)	47
Switching Frequency	1080000/h
Sensor Width (mm)	104
Sensor Height (mm)	52
Minimum Mechanical Life	1000000000 Operations
Maximum Switching Capacity (VA)	120
Repeat Accuracy (mm)	0.25
Recommended Actuator	BP 10 S
No. of Snap in Contacts	2

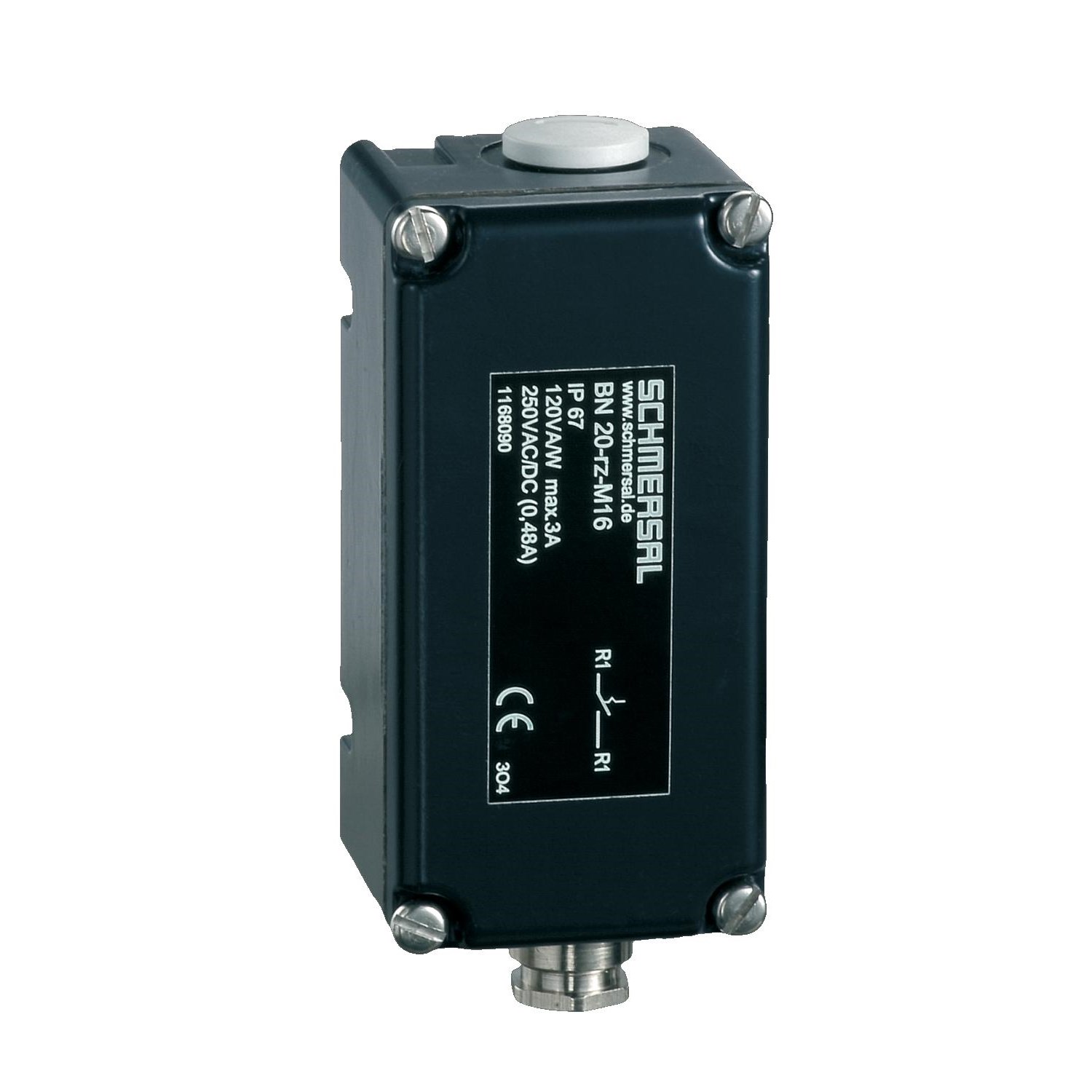

Product Type	Magnetic Reed Switch
Brand	SCHMERSAL
Accuracy	0.3 mm
Actuating Element	Magnet
Actuating Speed	18 m/s
Control Element	Reed Contacts
Housing Material	Aluminium
Mechanical Life	1000000000 Operations
Operational Temperature	-25 to 90 deg C
Rated Current	3 A
Resistance	50 g/ms
Standards and Approvals	EN IEC 60947-5-1
Switching Capacity	120 W
Switching Type	Magnetic Drive
Weight	292 g
