Specifications

Cable Length (m)	4
Minimum Ambient Temperature (°C)	-25
Wire Cross Section (mm²)	0.75mm² (Diameter)
Sensor Length (mm)	13
Sensor Width (mm)	88
Sensor Height (mm)	25
Minimum Mechanical Life	1000000000 Operations
Maximum Switching Capacity (VA)	80
Repeat Accuracy (mm)	0.25
Resistance to Shock (g/ms)	30g / 11ms
Recommended Actuator	BP 10 S
Resistance to Vibrations	10 ... 55Hz, Amplitude 1mm
No. of Snap in Contacts	1
Maximum Ambient Temperature (°C)	75
Maximum Switching Capacity (W)	80
Maximum Switching Current (A)	3
Maximum Actuating Speed (m/s)	18

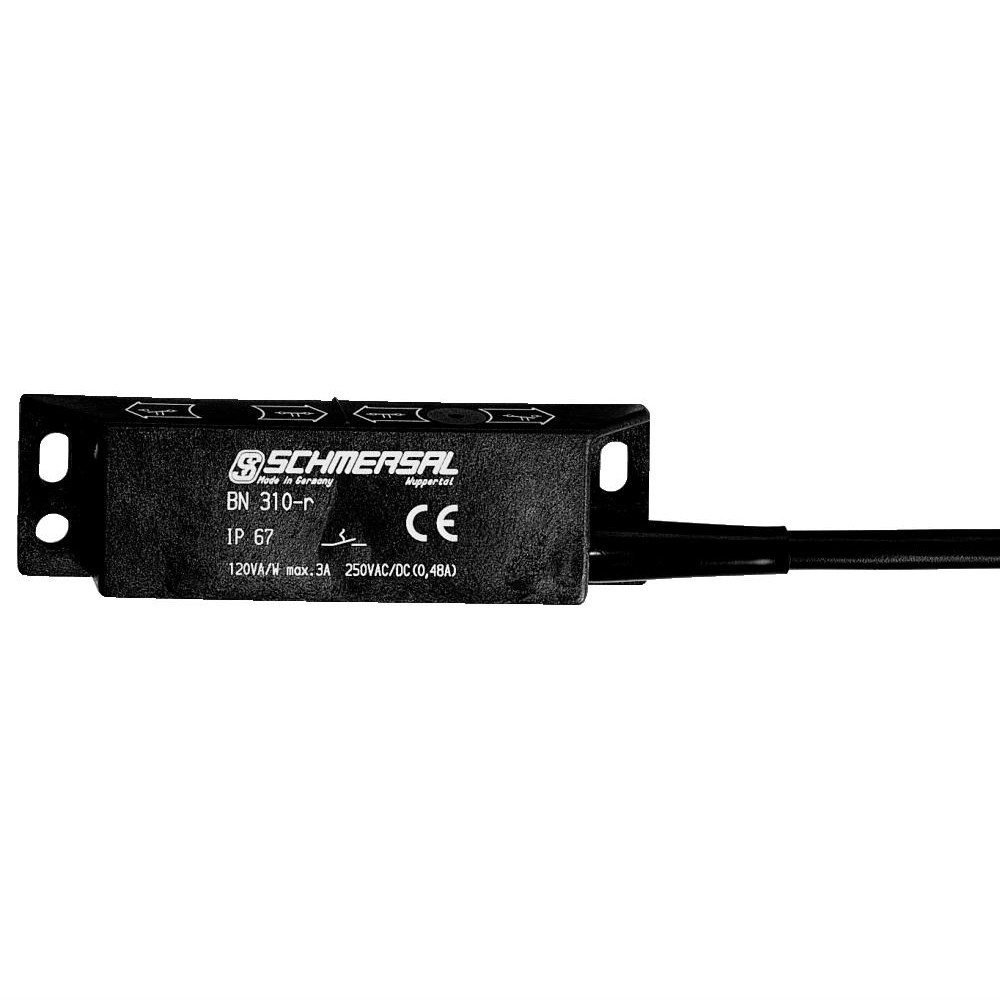

Product Type	Magnetic Reed Switch
Brand	SCHMERSAL
Accuracy	0.3 mm
Actuating Element	Magnet
Actuating Speed	18 m/s
Cable Length	4 m
Control Element	Reed Contacts
Degree of Protection	IP67
Housing Material	Glass Fibre Reinforced Thermoplastic
Mechanical Life	1000000000 Operations
Operational Temperature	-25 to 75 deg C
Rated Current	3 A
Resistance	10-55 Hz
Switching Capacity	80 W
Switching Type	Magnetic Drive
Weight	200 g
