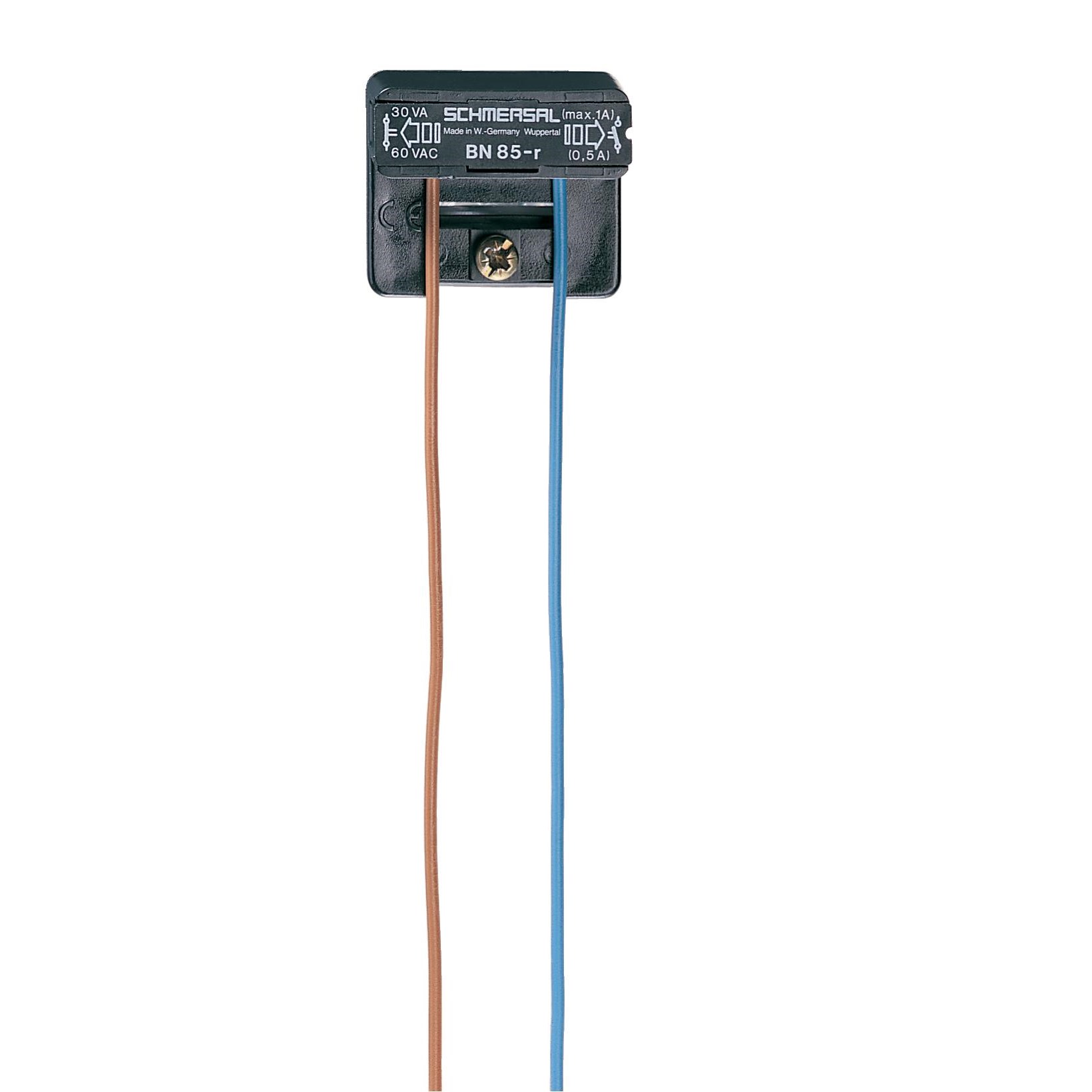

SCHMERSAL BN 85-R-1824-2 3,0M MAGNETIC REED SWITCH 101095308

Product Code: 101095308

Explore the Schmersal BN 85 Series Magnetic Reed Switch, a robust position sensor designed for precision and durability. Encased in a thermoplastic block, this switch features a bistable contact with actuation from the front and offers a flexible sensing distance ranging from 2 mm to 40 mm. Engineered for both AC and DC applications, it can handle up to 60 VAC/DC switching voltage, with a maximum switching current of 1 A and a switching capacity of 30 VA. The BN 85 is equipped with reed contacts known for their long life, ensuring reliable performance over time. Please note that actuators are available but must be purchased separately. Installation is made easy with C profile rails and sheathed cable secured by screws. This switch operates effectively within a temperature range of 0°C to 75°C and maintains an IP40 rating for protection against solid objects. Ideal for engineers seeking dependable solutions in position sensing, the Schmersal BN 85 Series offers precision operation in a compact design.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP40
Maximum Nominal Output Voltage AC (V) 60
Maximum Nominal Output Voltage DC (V) 60
Maximum Temperature (°C) 75
Minimum Temperature (°C) 0
Mounting Type Threaded
Nominal Output Current (A) 1
Nominal Power (W) 30
Series BN 85
