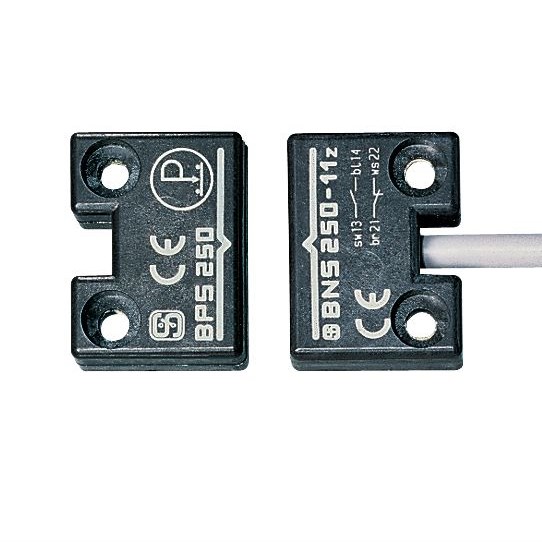

Schmersal 101138010 Magnetic Safety Sensor 6m Cable

Product Code: 101138010

  • Operates at 24 VDC and 0.1 A
  • Magnet actuator with IP67 protection
  • Durable glass fibre reinforced thermoplastic housing
  • 6 m cable length for flexible installation
  • Complies with BG-GS-ET-14, cULus, EN IEC 60947-5-3 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Magnetic Safety Sensor
Brand SCHMERSAL
Actuator Type Magnet
Cable Length 6 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Operational Temperature -25 to 70 deg C
Rated Current 0.1 A
Rated Frequency 5 Hz
Rated Power 1 W
Rated Voltage 24 VDC
Sensor Size 13 mm L x 33 mm W x 25 mm H
Standards and Approvals BG-GS-ET-14, cULus, EN IEC 60947-5-3
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm
