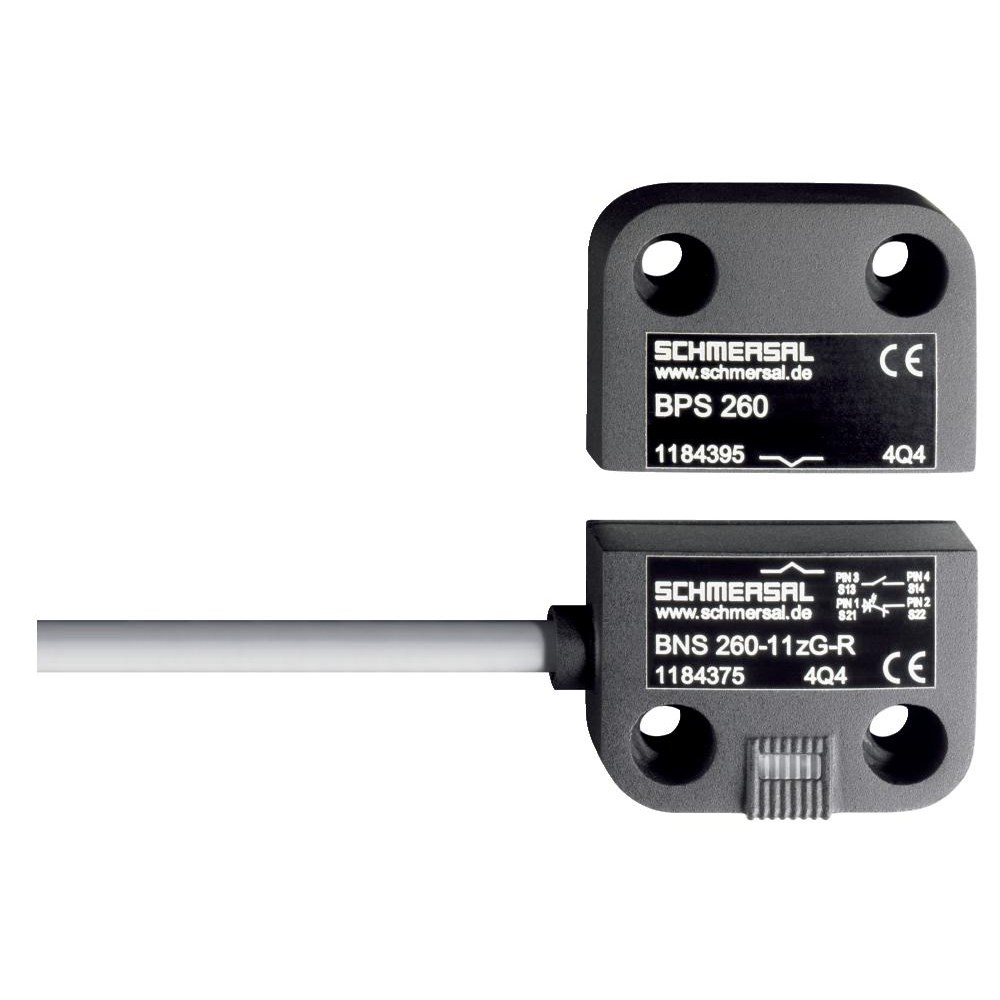

Schmersal 101184386 Magnetic Safety Sensor 1m Cable

Product Code: 101184386

  • Rated for 75 VDC and 0.4 A
  • Durable with 25 million cycle life
  • IP67 protection for harsh conditions
  • Compact size: 13 x 26 x 36 mm
  • Operates in -25 to 70°C range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 0.4
Rated Maximum Operational Voltage DC (V) 75
Nominal Power (W) 10
Product Type Safety Sensor
Brand SCHMERSAL
Series BNS260
Actuating Element Magnet
Cable Length 1 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 70 deg C
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Insulation Voltage 50 VAC
Rated Power 10 VA
Rated Voltage 75 VDC
Sensor Size 13 mm L x 26 mm W x 36 mm H
Short Circuit Protection 100 A
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm

Description

Enhance machine safety with the Schmersal BNS260 series safety sensor, designed for reliability and durability. This thermoplastic-encased sensor features a magnetic actuating element and is engineered for left-hinged doors. It comes equipped with three openers and two safety contacts, ensuring secure operations. The unit includes a 1-meter cable with six wires for easy installation and connects via terminal connector. With a switching voltage of 75 VDC, current of 0.4 A, and capacity of 10 VA, it's built to handle demanding industrial environments. Trust in Schmersal's commitment to safety with this robust sensor solution for your machinery.
