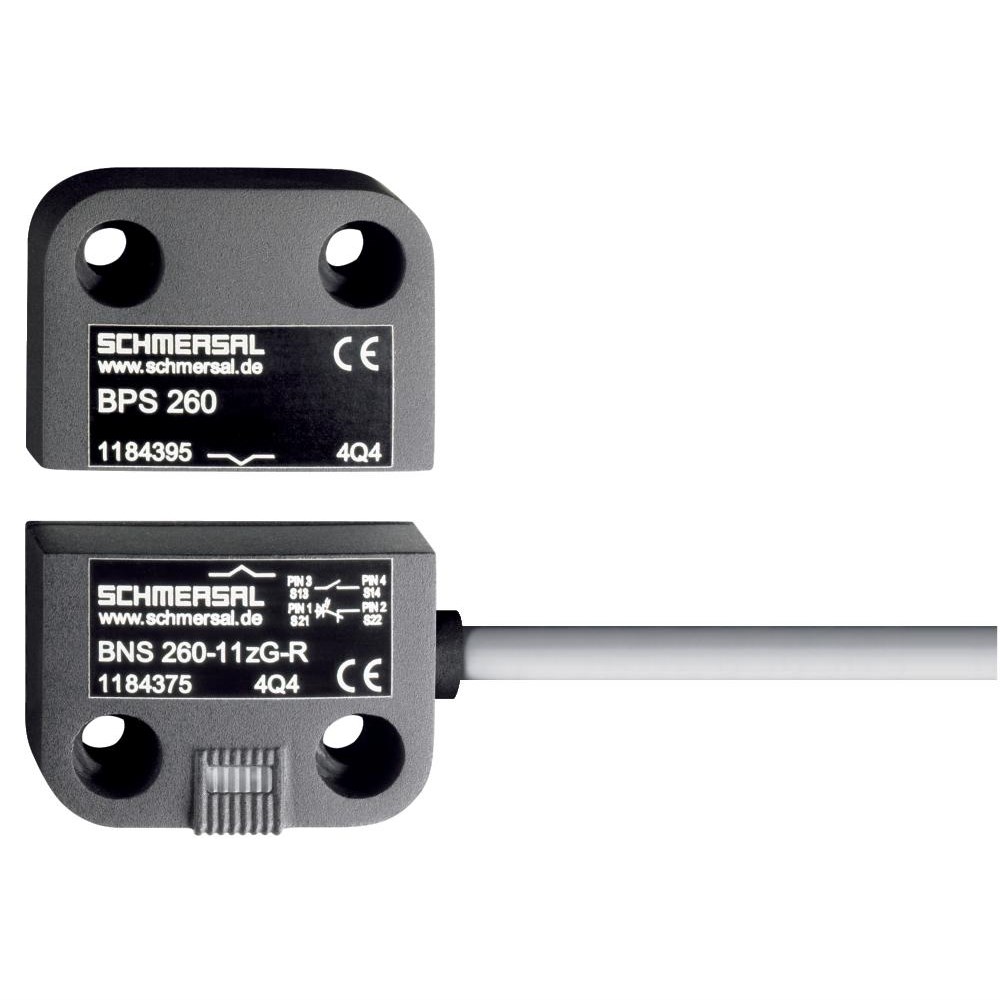

Schmersal 101184370 Magnetic Safety Sensor 3NC 1m Cable

Product Code: 101184370

  • Compact size: 13x26x36 mm
  • Durable glass fibre thermoplastic housing
  • Reliable IP67 protection rating
  • Operates up to 70°C
  • Meets BG-GS, cULus, EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 0.4
Rated Maximum Operational Voltage DC (V) 75
Nominal Power (W) 10
Product Type Magnetic Safety Sensor
Brand SCHMERSAL
Series BNS260
Cable Length 1 m
Contact Configuration 3NC
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Operational Temperature 70 deg C
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Power 10 W
Rated Voltage 75 VDC
Sensor Size 13 mm L x 26 mm W x 36 mm H
Shock Resistance 30 g/ms, 11 g/ms
Standards and Approvals BG-GS-ET-14, cULus, EN IEC 60947-5-3
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm

Description

Enhance machine safety with the Schmersal BNS260 series safety sensor, designed for reliable operation and straightforward integration. This robust sensor features a thermoplastic enclosure and utilizes a magnetic actuating element for precise performance. It's equipped with three openers and two safety contacts, ensuring multiple redundancy levels for your safety circuits. The unit comes with six cable wires and a 1-meter long cable for easy installation. Engineered to operate at a switching voltage of 75 VDC, current of 0.4 A, and a switching capacity of 10 VA, it is suitable for various industrial applications. The right door hinge orientation complements its versatile design, making it an essential component in any machine safety system.
