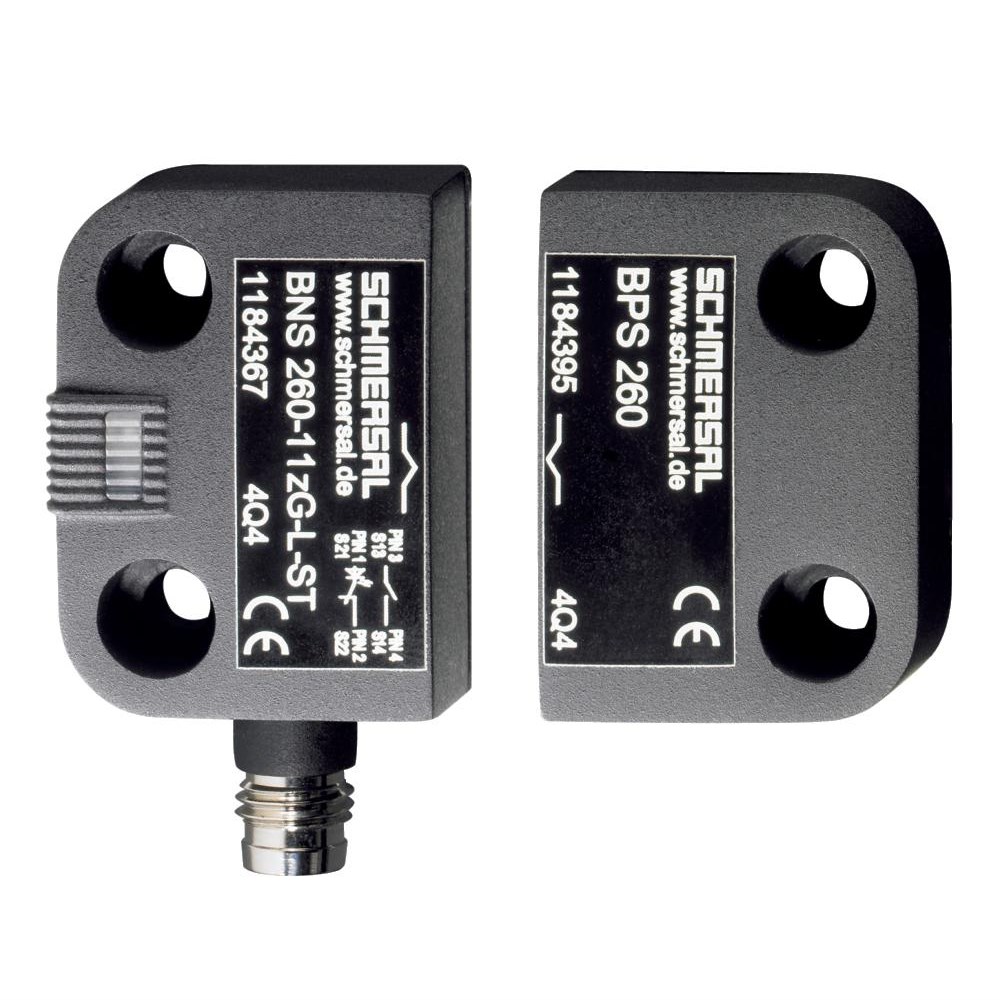

Schmersal 101184362 Magnetic Safety Sensor

Product Code: 101184362

  • Operates at 30 VDC and 0.4 A
  • Durable with 25 million cycles
  • Quasi-flush mounting design
  • IP67 protection against dust/water
  • Safe operation from -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Nominal Power (W) 10
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 0.4
Rated Maximum Operational Voltage DC (V) 30
Product Type Safety Sensor
Brand SCHMERSAL
Series BNS260
Actuating Element Magnet
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Number of Poles 6
Operational Temperature -25 to 70 deg C
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Insulation Voltage 50 VAC
Rated Power 10 VA
Rated Voltage 30 VDC
Sensor Size 13 mm L x 26 mm W x 36 mm H
Short Circuit Protection 100 A
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance 10-55 Hz

Description

The Schmersal BNS260 series safety sensor is a robust machine safety solution designed with a thermoplastic enclosure and magnetic actuation to ensure secure operation. This sensor features three openers and two safety contacts, enhancing its protective functions. It's engineered for right-hinged doors and utilizes a convenient 8 mm 6-pole connector with latching interlocking for reliable connectivity. With a switching voltage of 30 VDC, current of 0.4 A, and capacity of 10 VA, this sensor maintains operational integrity in demanding environments. Ideal for engineers looking to integrate dependable safety mechanisms into their machinery without the need for additional cable wiring.
