Specifications

Thermal Test Current (A)	0.25
Minimum Ambient Temperature (°C)	-25
Standards	EN IEC 60947-5-1
Sensor Length (mm)	48
EAN	4030660000000
eCl@ss Number, Version 9.0	27-27-26-01
Sensor Height (mm)	220
ETIM 7.0	EC000030
ETIM 6.0	EC000030
eCl@ss Number, Version 11.0	27-27-26-01
Minimum Mechanical Life	20000000 Operations
Gross Weight (g)	457.45
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Net Weight (g)	251.429
Maximum Fuse Rating	16 A gG D-fuse
Switching Element	NO contact, NC contact
Maximum Cable Cross Section (mm²)	2.5
Enclosure Material	Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C)	70

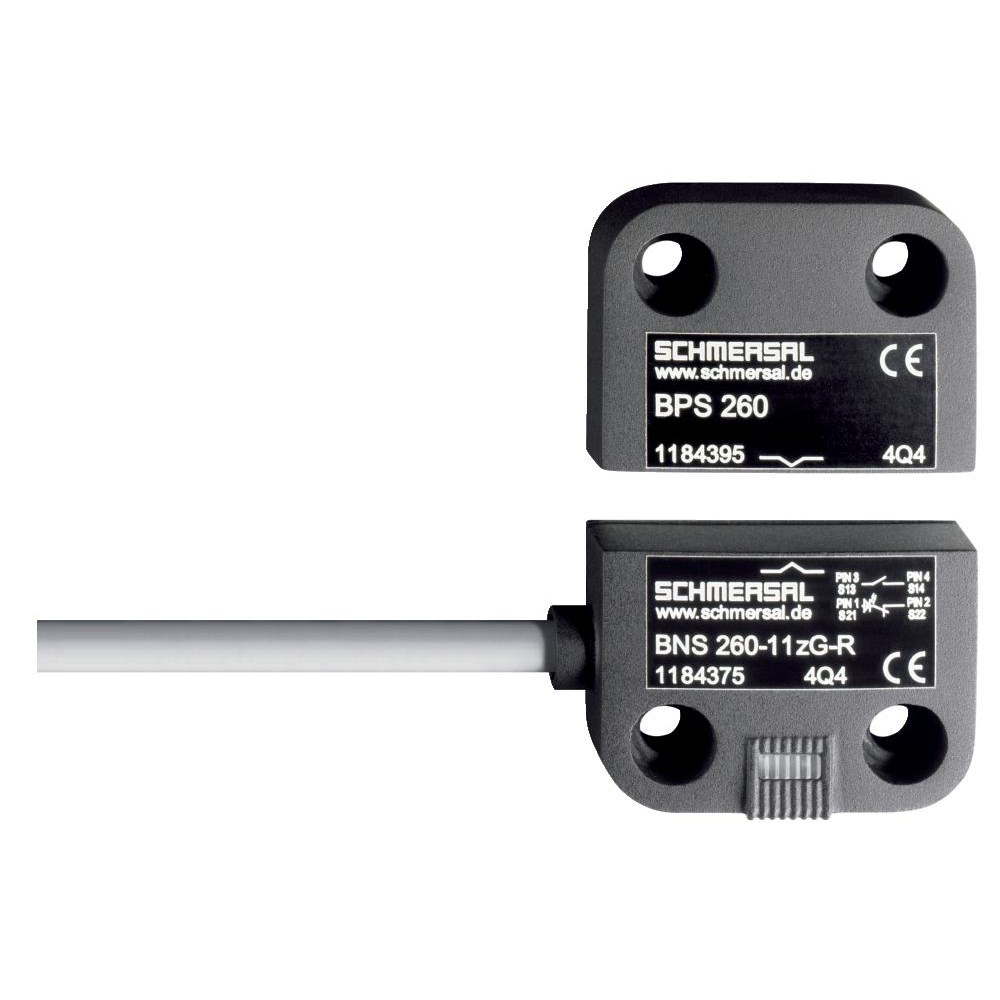

Product Type	Magnetic Safety Sensor
Brand	SCHMERSAL
Actuating Element	Magnet
Cable Length	3 m
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Glass Fibre Reinforced Thermoplastic
Mechanical Life	25000000 Cycles
Mounting Type	Quasi-Flush
Operational Temperature	-25 to 70 deg C
Rated Current	0.4 A
Rated Frequency	5 Hz
Rated Insulation Voltage	50 VAC
Rated Power	10 VA
Rated Voltage	75 VDC
Sensor Size	13 mm L x 26 mm W x 36 mm H
Short Circuit Protection	100 A
Standards and Approvals	BG-GS-ET-14 EN IEC 60947-5-3
Terminal Type	Screw terminals M20 x 1.5
Vibration Resistance	10-55 Hz
Wire Size	0.25 sq-mm
