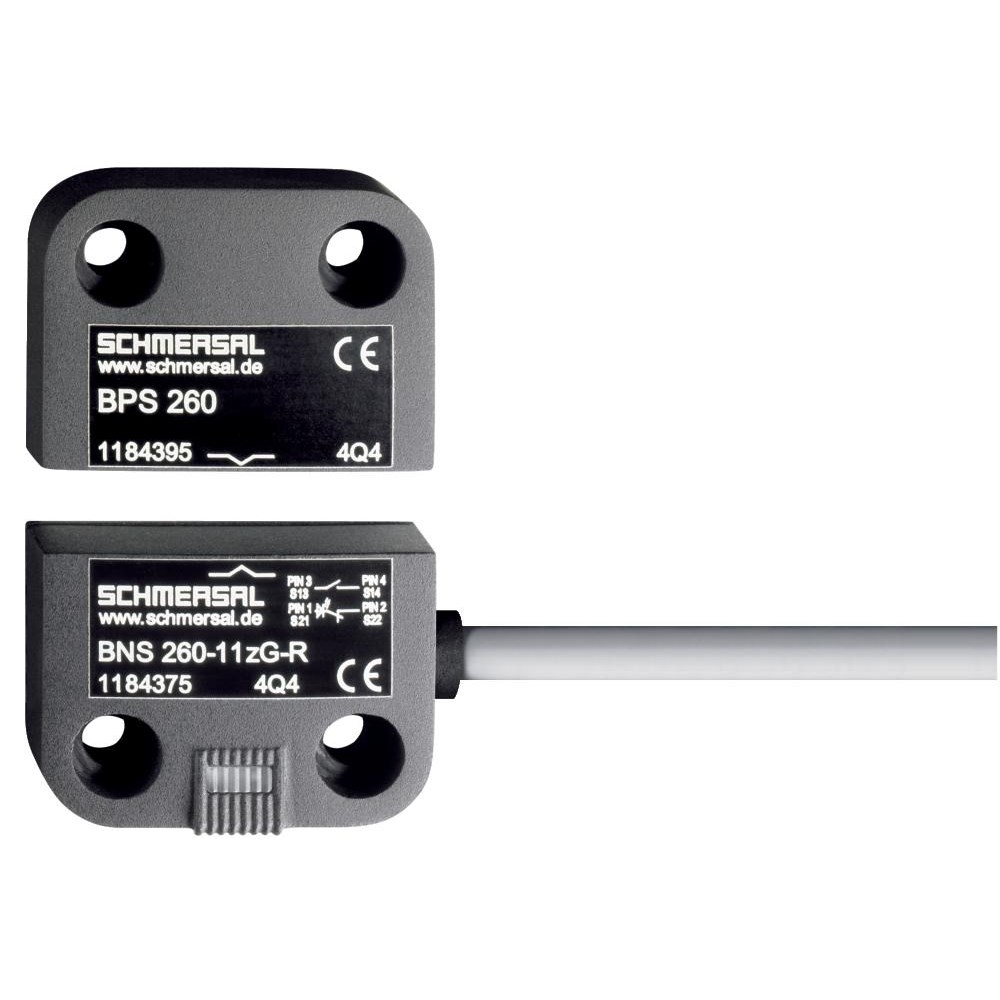

Schmersal 101184372 Magnetic Safety Sensor 1m Cable

Product Code: 101184372

  • Quasi-flush mount for streamlined installation
  • Durable with 25 million mechanical cycles
  • IP67 protection against dust and water
  • Operates in -25 to 70°C temperature range
  • Compact size: 13mm x 26mm x 36mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 0.4
Rated Maximum Operational Voltage DC (V) 75
Nominal Power (W) 10
Product Type Safety Sensor
Brand SCHMERSAL
Series BNS260
Actuating Element Magnet
Cable Length 1 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 70 deg C
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Insulation Voltage 50 VAC
Rated Power 10 VA
Rated Voltage 75 VDC
Sensor Size 13 mm L x 26 mm W x 36 mm H
Short Circuit Protection 100 A
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm

Description

Enhance your machine safety with the Schmersal BNS260 series safety sensor. This robust device features a thermoplastic enclosure designed for durability and reliability. It comes equipped with a magnetic actuating element and is suitable for right-hinged doors, ensuring secure operations. The sensor includes two openers, one shutter, and two safety contacts, along with a six-wire cable connection for comprehensive safety coverage. With a 1-meter cable length, this sensor operates at a switching voltage of 75 VDC, current of 0.4 A, and has a switching capacity of 10 VA. Ideal for engineers looking to maintain high safety standards in their machinery setups.
