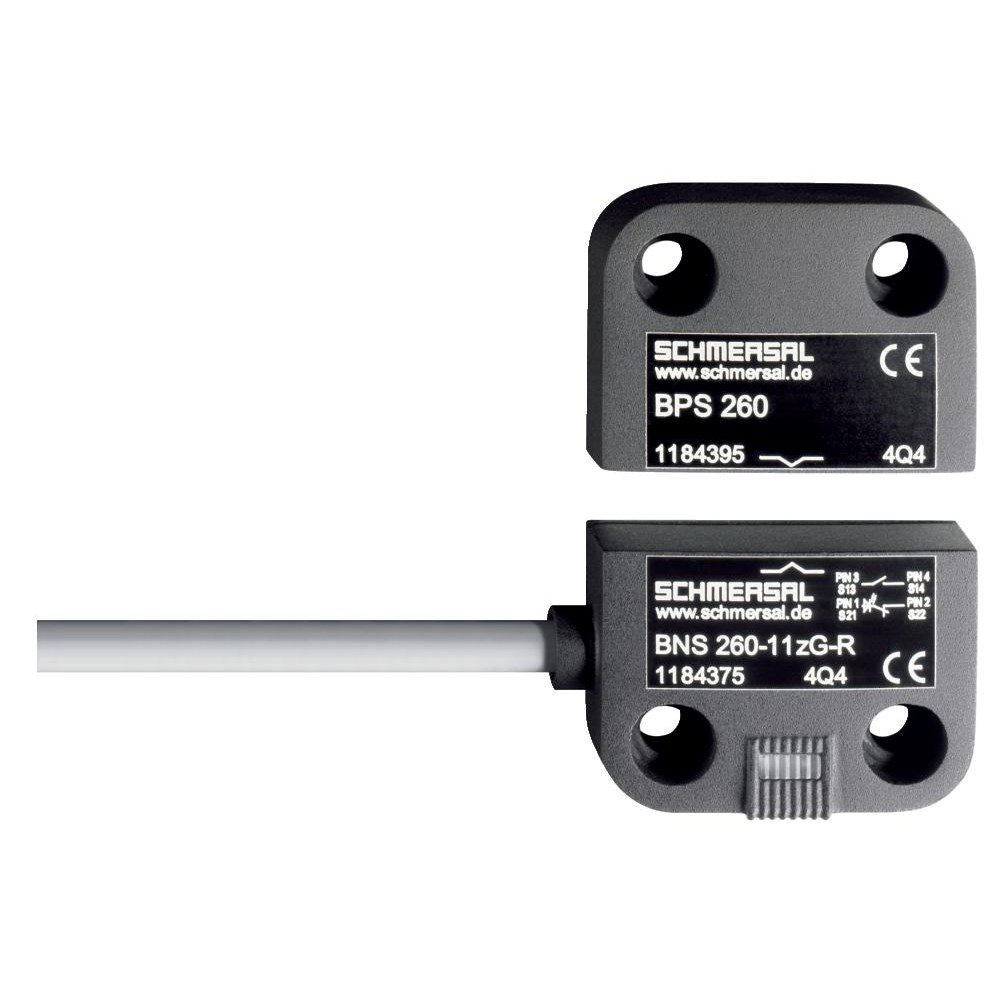

Schmersal 101184387 Magnetic Safety Sensor 1m Cable

Product Code: 101184387

  • Quasi-flush mounting for compact installation
  • Durable with 25M cycle mechanical life
  • IP67 protection ensures dust and water resistance
  • Operates in temperatures from -25 to 70°C
  • Glass fibre reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Insulation Voltage (V) 300
Rated Impulse Withstand Voltage (kV) 4
Enclosure Material Plastic, glass-fibre-reinforced
Utilisation Category DC-13 | AC-15
Maximum Ambient Temperature (°C) 80
Nominal Power (W) 10
Minimum Cable Cross Section (mm²) 0.25
Maximum Actuating Speed (m/s) 0.3
No. of Safety Contacts 4
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Minimum Ambient Temperature (°C) 0
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Sensor Length (mm) 32.5
Switching Principle Slow action
EAN 4030660000000
Nominal Output Current (A) 0.4
eCl@ss Number, Version 9.0 27-27-27-04
Sensor Height (mm) 90
Rated Short-circuit Current (A) 100
ETIM 7.0 EC001832
ETIM 6.0 EC002549
eCl@ss Number, Version 11.0 27-27-27-04
Minimum Mechanical Life 20000000 Operations
Gross Weight (g) 80
Net Weight (g) 60
Maximum Fuse Rating 10 A gG D-fuse slow blow
Switching Element NO contact, NC contact
Rated Maximum Operational Voltage DC (V) 75
Maximum Cable Cross Section (mm²) 2.5
Product Type Safety Sensor
Brand SCHMERSAL
Series BNS260
Actuating Element Magnet
Actuator Type Roller plunger R200
Cable Length 1 m
Contact Material Ag-Ni, self-cleaning, positive drive
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 70 deg C
Rated Current 0.4 A
Rated Insulation Voltage 50 VAC
Rated Power 10 VA
Rated Voltage 75 VDC
Sensor Size 13 mm L x 26 mm W x 36 mm H
Short Circuit Protection 100 A
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Terminal Type Cable
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm

Description

The Schmersal BNS260 series safety sensor is a robust machine safety solution designed with a thermoplastic enclosure to ensure durability. This sensor features a magnetic actuating element and is suitable for applications requiring one opener and one shutter. It includes two safety contacts and a four-wire cable connection, with the cable length provided being 1 meter for easy installation. Engineered for left-hinged doors, this sensor operates at a switching voltage of 75 VDC, a current of 0.4 A, and has a switching capacity of 10 VA. The BNS260 series is an essential component for engineers looking to enhance machine safety without compromising on reliability or performance.
