Specifications

Cable Length (m)	3
No. of Cables	4
Rated Insulation Voltage (V)	75DC
Rated Impulse Withstand Voltage (kV)	0.8
No. of Safety Contacts	2
Minimum Ambient Temperature (°C)	-25
Termination	Cable
Wire Cross Section (mm²)	0.25mm² (Diameter)
Sensor Length (mm)	13
No. of Normally-open Contacts	1
No. of Normally-closed Contacts	1
Sensor Width (mm)	26
Sensor Height (mm)	36
Rated Short-circuit Current (A)	100
Maximum Ambient Temperature (°C)	70
Maximum Switching Capacity (W)	0.24
Maximum Switching Frequency (Hz)	5
Maximum Switching Current (A)	0.01
Resistance to Shock (g/ms)	30g / 11ms
Recommended Safety Switchgear	SRB-E-301ST
Direction of Motion	Head-on to the Active Surface
Recommended Actuator	BPS 260
Resistance to Vibrations	10 ... 55Hz, Amplitude 1mm
Maximum Storage Temperature (°C)	70
Minimum Storage Temperature (°C)	-25

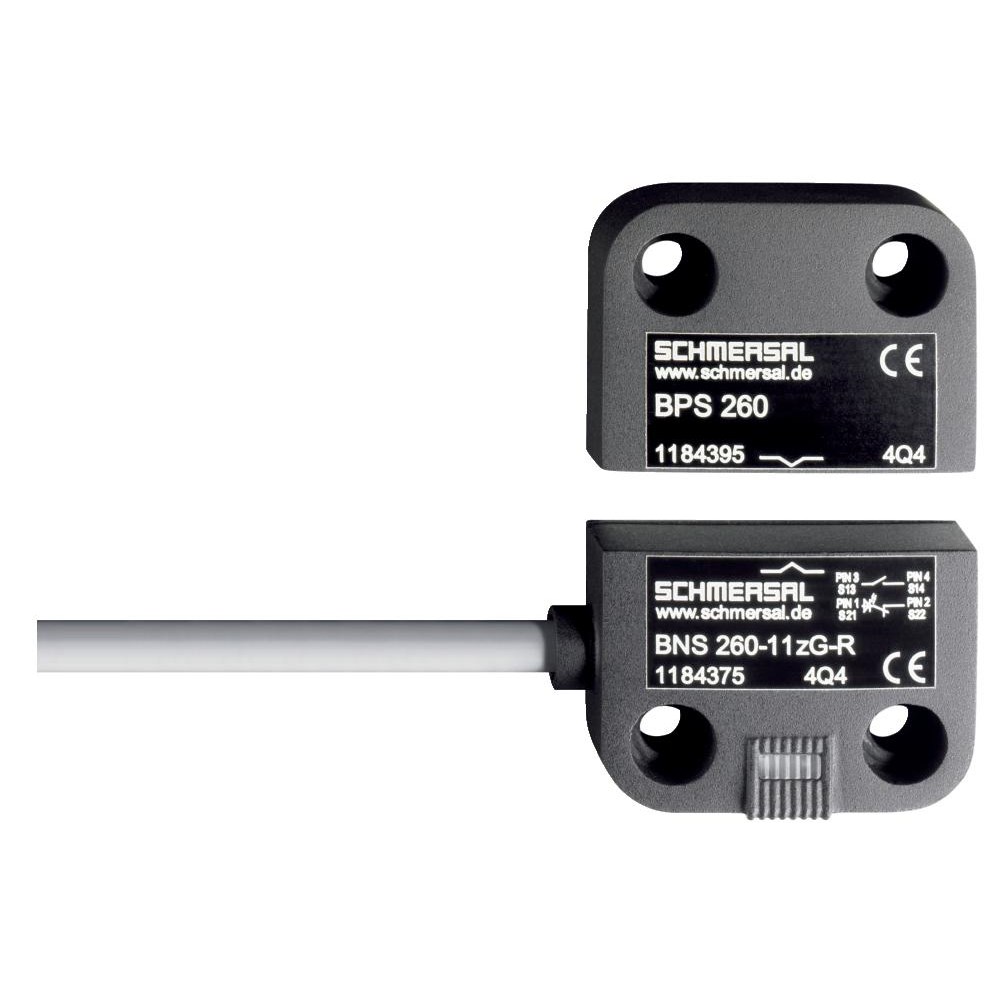

Product Type	Magnetic Safety Sensor
Brand	SCHMERSAL
Actuating Element	Magnet
Cable Length	3 m
Degree of Protection	IP67
Housing Material	Glass Fibre Reinforced Thermoplastic
Installation Conditions	Quasi-flush
Mechanical Life	25000000 Cycles
Mounting Type	Quasi-Flush
Operational Temperature	-25 to 70 deg C
Rated Current	0.01 A
Rated Frequency	5 Hz
Rated Insulation Voltage	75 VDC
Rated Power	0.24 W
Sensor Size	13 mm L x 26 mm W x 36 mm H
Short Circuit Protection	100 A
Standards and Approvals	BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance	10-55 Hz
Wire Size	0.25 sq-mm
