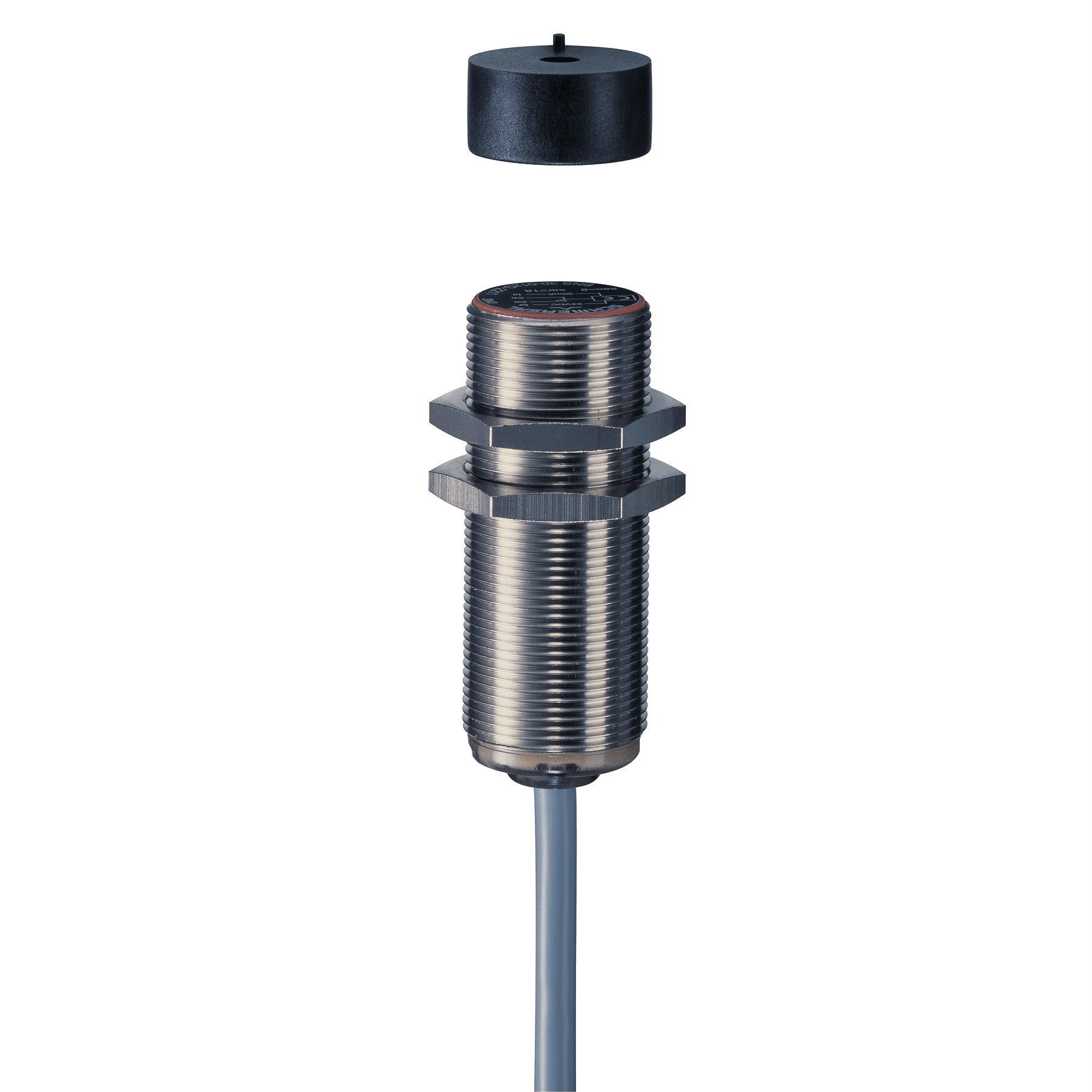

Schmersal 101181851 Magnetic Safety Sensor 1NC

Product Code: 101181851

  • Rated for 250 VAC, 3 A, 750 W
  • IP67 protection for harsh environments
  • Brass housing with quasi-flush mount
  • Magnet actuated with 1NC contact
  • Complies with BG-GS-ET-14 & EN standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 3
Rated Maximum Operational Voltage AC (V) 250
Nominal Power (W) 750
Product Type Safety Sensor
Brand SCHMERSAL
Series BNS30
Actuating Element Magnet
Contact Configuration 1NC
Degree of Protection IP67
Housing Material Brass
Mounting Type Quasi-Flush
Operational Temperature -25 to 55 deg C
Rated Current 3 A
Rated Frequency 5 Hz
Rated Power 750 W
Rated Voltage 250 VAC
Sensor Size 78 mm L
Shock Resistance 30 g/ms
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance 10-55 Hz

Description

Enhance machine safety with the Schmersal BNS30 Series safety sensor, designed for robust performance with its metal enclosure. This sensor features an integrated safety monitoring module and utilizes a magnet as its actuating element. It is equipped with an M30 ISO thread, has a compact length of 78 mm, and can handle switching voltages up to 250 VAC, currents up to 3 A, and has a switching capacity of 750 W. Ideal for engineers looking for reliable safety sensors in machine safeguarding applications.
