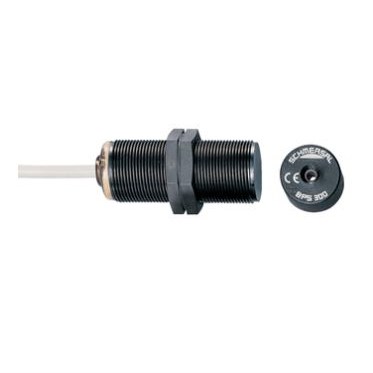

Schmersal 101155150 Safety Sensor 4m Cable

Product Code: 101155150

  • Operates at 24 VDC and 3 A
  • Durable with 20 million cycles
  • IP67 rated for robust protection
  • Quasi-flush mounting design
  • Glass fibre reinforced housing
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Safety Sensor
Brand SCHMERSAL
Cable Length 4 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 20000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 55 deg C
Rated Current 3 A
Rated Frequency 5 Hz
Rated Power 750 W
Rated Voltage 24 VDC
Sensor Size 78 mm L
Shock Resistance 30 g/ms
Standards and Approvals cULus
Vibration Resistance 10-55 Hz
Wire Size 0.75 sq-mm
