Specifications

Ambient Temperature Range (°C)	-25 to 55
Cable Length (m)	2
Working Principle	Magnetic Drive
Sensor Length (mm)	78
Installation	Quasi-Flush
Gross Weight (g)	210
Resistance to Shock (g/ms)	30 g / 11 ms
Resistance to Vibrations	10 - 55Hz, Amplitude 1mm
Maximum Switching Capacity (W)	750
Maximum Switching Capacity (A)	3

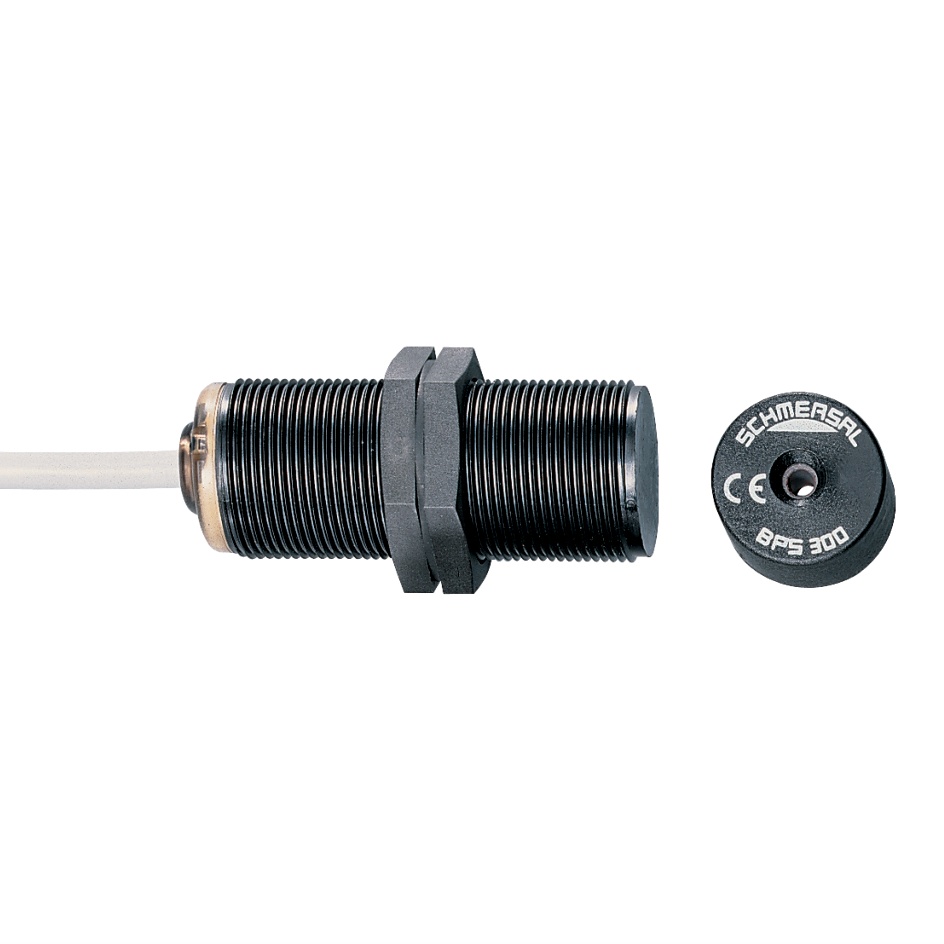

Product Type	Magnetic Safety Sensor
Brand	SCHMERSAL
Actuating Element	Magnet
Cable Length	2 m
Degree of Protection	IP67
Housing Material	Glass Fibre Reinforced Thermoplastic
Mounting Type	Quasi-Flush
Operational Temperature	-25 to 55 deg C
Rated Current	3 A
Rated Frequency	5 Hz
Rated Power	750 W
Rated Voltage	24 VDC
Sensor Size	78 mm L
Shock Resistance	30 g/11 ms
Vibration Resistance	10-55 Hz
Weight	210 g
Wire Size	0.75 sq-mm
