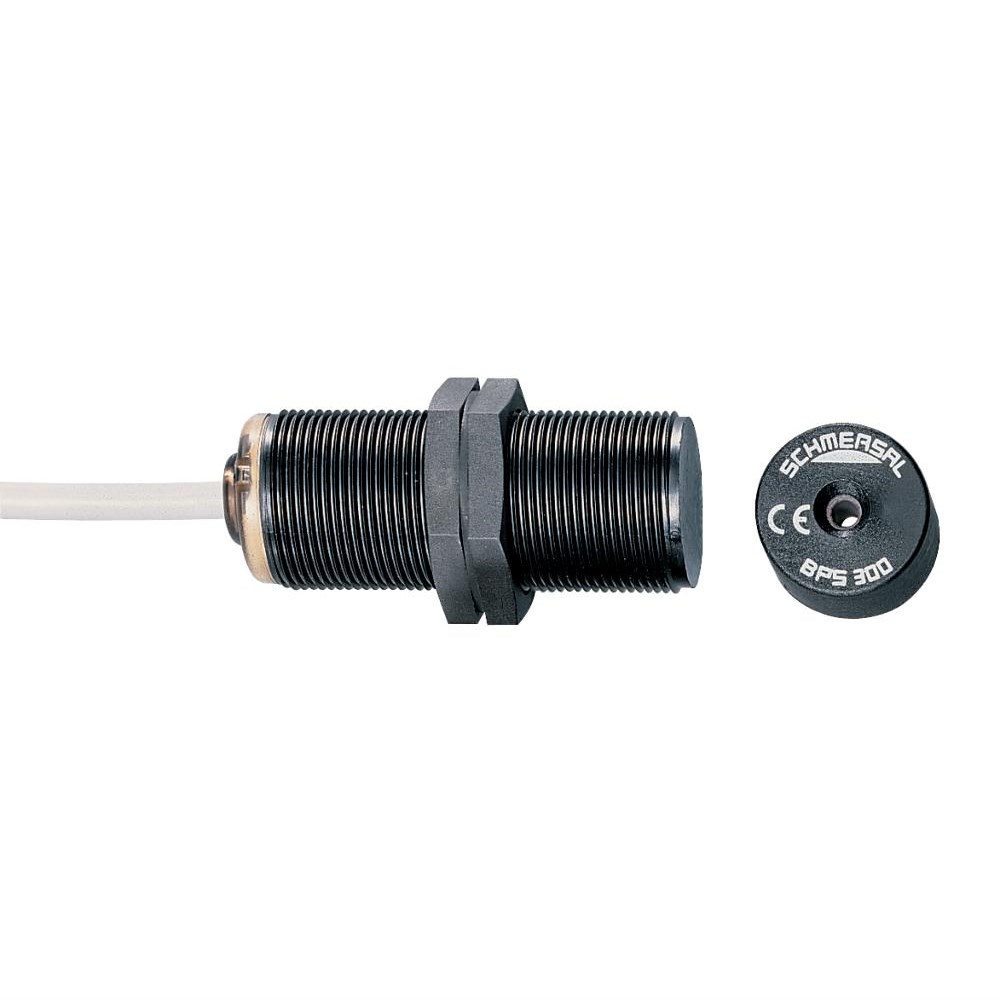

Schmersal 101137433 Magnetic Safety Sensor 2m Cable

Product Code: 101137433

  • Operates at 24 VDC, 3 A, and 750 W
  • Durable with 25 million mechanical cycles
  • IP67 rating for excellent protection
  • Glass fibre reinforced thermoplastic housing
  • Suitable for temperatures from -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 3
Rated Maximum Operational Voltage AC (V) 250
Nominal Power (W) 750
Product Type Safety Sensor
Brand SCHMERSAL
Series BNS300
Actuating Element Magnet
Cable Length 2 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Mounting Type Quasi-Flush
Operational Temperature -25 to 70 deg C
Rated Current 3 A
Rated Frequency 5 Hz
Rated Power 750 W
Rated Voltage 24 VDC
Sensor Size 78 mm L
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance 10-150 Hz
Wire Size 0.75 sq-mm

Description

Enhance your machine safety with the Schmersal BNS300 series safety sensor. This robust thermoplastic device ensures secure operations with its integrated safety monitoring module and system diagnostics. It features a single opener, one safety contact, and a magnetic actuating element for reliable performance. The sensor comes equipped with four cable wires and a 1-meter long cable for easy installation. Designed with an M30 ISO thread, it can handle switching voltages up to 250 VAC, currents of 3 A, and has a switching capacity of 750 W. Trust in the durability and precision engineering of Schmersal for your machine safety needs.
