Specifications

Cable Length (m)	1
No. of Cables	4
Included	2 x Mounting Material M30 x 1.5 Nuts
Maximum Ambient Temperature (°C)	70
Maximum Switching Capacity (W)	10
Maximum Switching Frequency (Hz)	5
Maximum Switching Current (A)	0.4
No. of Safety Contacts	2
Minimum Ambient Temperature (°C)	-25
Wire Cross Section (mm²)	0.25mm² (Diameter)
Sensor Length (mm)	44
No. of Normally-open Contacts	1
No. of Normally-closed Contacts	1
Resistance to Shock (g/ms)	30g / 11ms
Recommended Safety Switchgear	SRB 301AN
Direction of Motion	Head-on to the Active Surface
Recommended Actuator	BPS 300
Resistance to Vibrations	10 ... 55Hz, Amplitude 1mm
Maximum Storage Temperature (°C)	70
Minimum Storage Temperature (°C)	-25

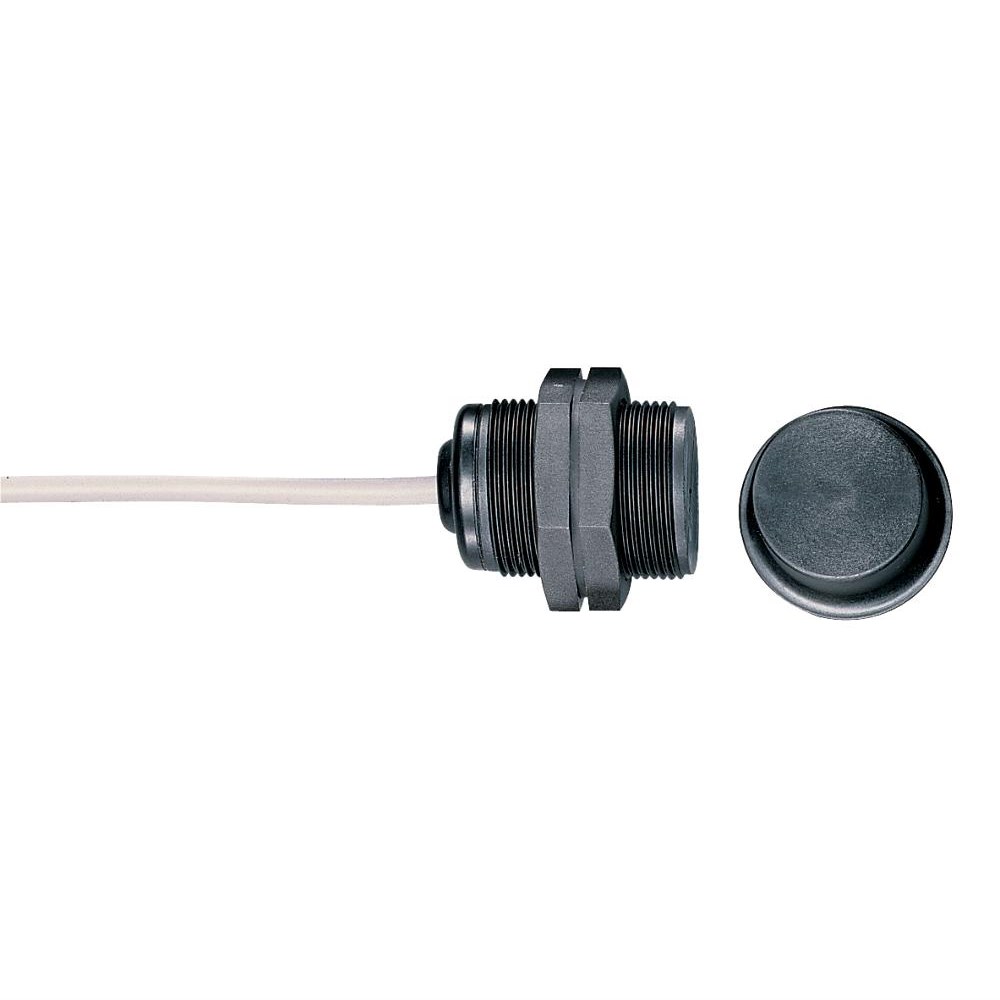

Product Type	Magnetic Safety Sensor
Brand	SCHMERSAL
Actuating Element	Magnet
Cable Length	1 m
Contact Configuration	1NO+1NC
Degree of Protection	IP67
Housing Material	Glass Fibre Reinforced Thermoplastic
Installation Conditions	Quasi-flush
Mounting Type	Quasi-Flush
Operational Temperature	-25 to 70 deg C
Rated Current	0.4 A
Rated Frequency	5 Hz
Rated Power	10 W
Sensor Size	44 mm L
Standards and Approvals	EN IEC 60947-5-3, EN ISO 13849-1
Vibration Resistance	10-55 Hz
Wire Size	0.25 sq-mm
