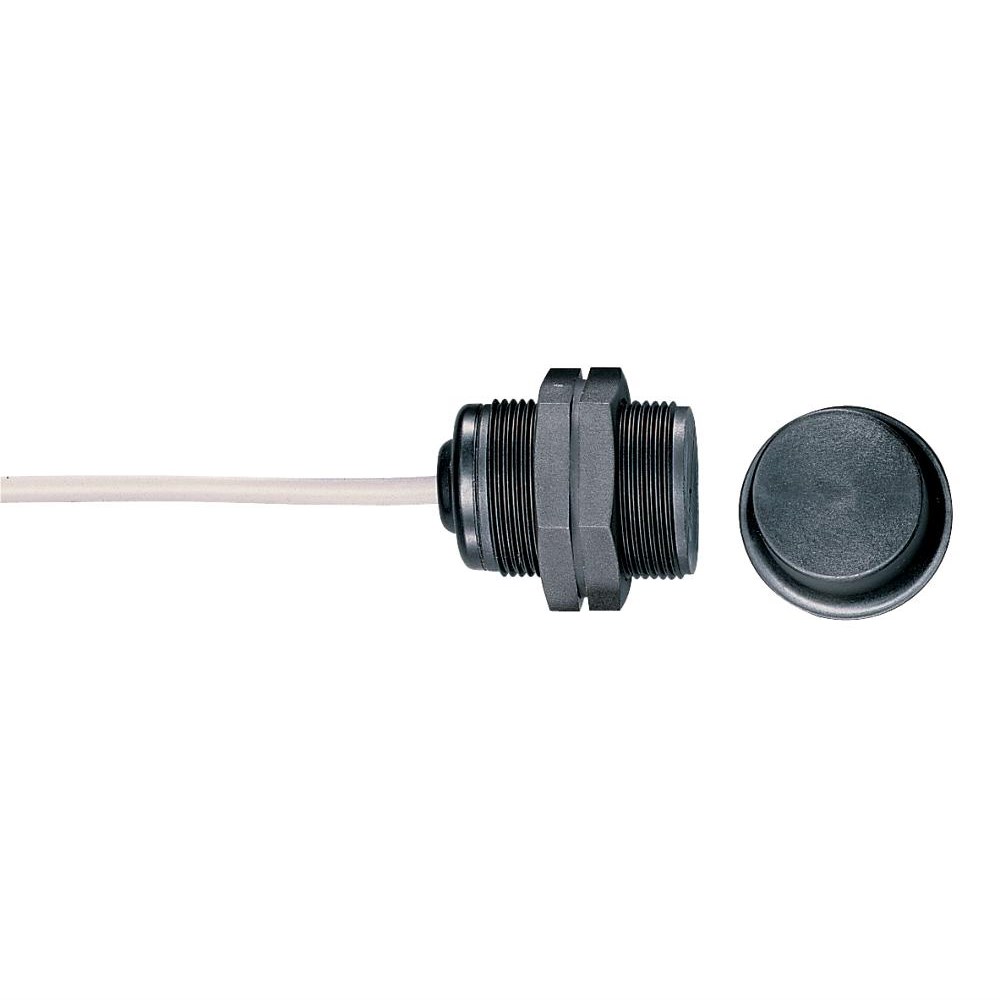

Schmersal 101115681 Magnetic Safety Sensor 1m Cable

Product Code: 101115681

  • Operates at 100 VAC, 0.4 A, 10 W
  • Durable with 25M cycles lifespan
  • IP67 protection for harsh environments
  • Compact sensor size of 44 mm length
  • Glass fibre reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 0.4
Rated Maximum Operational Voltage AC (V) 100
Rated Maximum Operational Voltage DC (V) 100
Nominal Power (W) 10
Product Type Safety Sensor
Brand SCHMERSAL
Series BNS303
Actuating Element Magnet
Cable Length 1 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Operational Temperature -25 to 70 deg C
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Power 10 W
Rated Voltage 100 VAC
Sensor Size 44 mm L
Standards and Approvals EN ISO 13849-1
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm

Description

The Schmersal BNS303 safety sensor is a robust machine safety solution designed with a thermoplastic enclosure to ensure durability. This sensor features a magnetic actuating element and comes equipped with two openers, one shutter, and two safety contacts. It is engineered for secure operations with four cable wires and a 1-meter long cable for easy installation. The M30 ISO thread ensures compatibility with standard fittings. With a switching voltage of 100 V AC/DC, current of 0.4 A, and capacity of 10 W, this sensor maintains reliable performance in various industrial settings. Ideal for engineers looking for efficient coding and connectivity in their safety systems, the BNS303 series stands out in the machine safety category.
