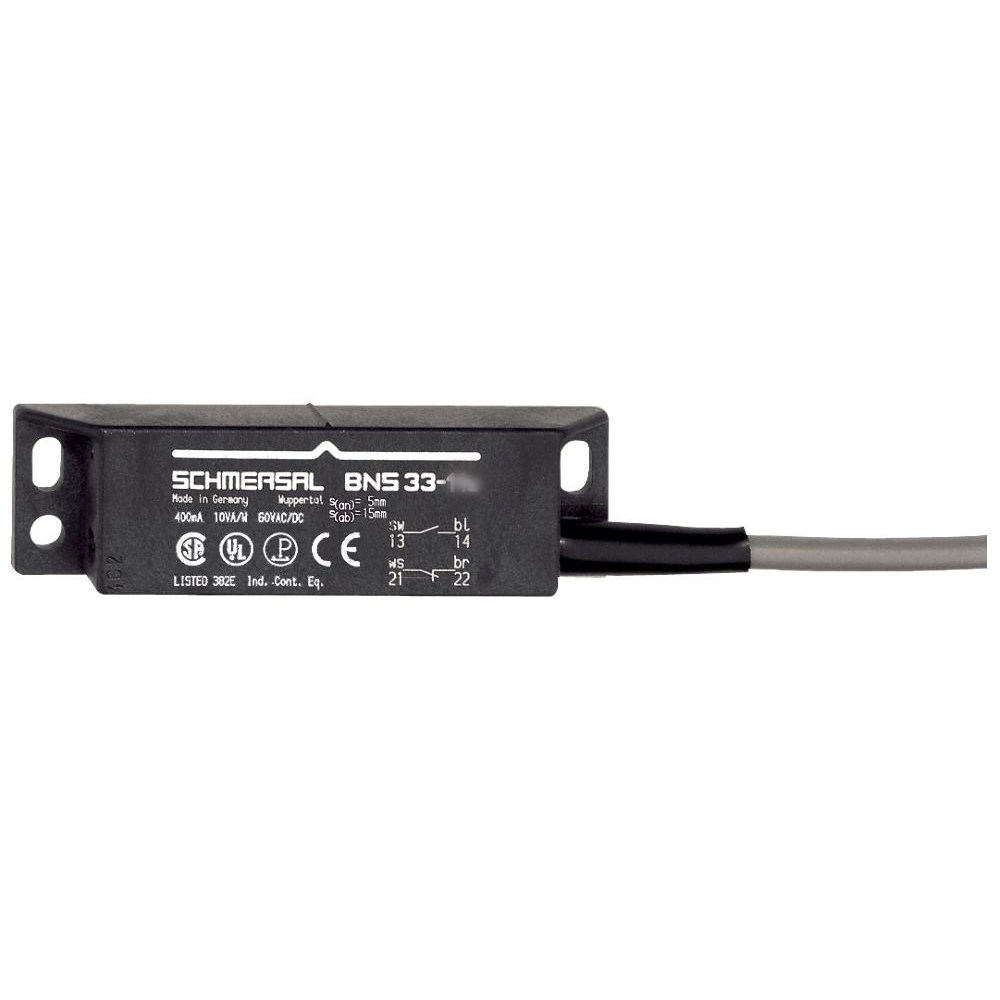

Schmersal 101112628 Magnetic Safety Sensor 1m Cable

Product Code: 101112628

  • Operates at 120 VAC, 0.5 A, and 10 W
  • Durable with 25 million cycles lifespan
  • IP67 rated for excellent protection
  • Compact size: 13 x 88 x 25 mm
  • Withstands -25 to 70°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Nominal Power (W) 10
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 0.5
Rated Maximum Operational Voltage AC (V) 120
Product Type Safety Sensor
Brand SCHMERSAL
Series BNS33
Actuating Element Magnet
Cable Length 1 m
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Mechanical Life 25000000 Cycles
Operational Temperature -25 to 70 deg C
Rated Current 0.5 A
Rated Frequency 5 Hz
Rated Power 10 W
Rated Voltage 120 VAC
Sensor Size 13 mm L x 88 mm W x 25 mm H
Standards and Approvals EN ISO 13849-1
Vibration Resistance 10-55 Hz
Weight 55 g
Wire Size 0.25 sq-mm

Description

Enhance machine safety with the Schmersal BNS33 series safety sensor, designed for reliable monitoring with its thermoplastic enclosure and magnetic actuation. This essential component features a single opener and shutter, lateral active area, and connects seamlessly via a 1-meter cable. Engineered for performance, it operates at a switching voltage of 120 VAC, current of 0.5 A, and has a switching capacity of 10 W. Ensure your machinery meets safety standards with this robust safety sensor from Schmersal's trusted range of machine safety products.
