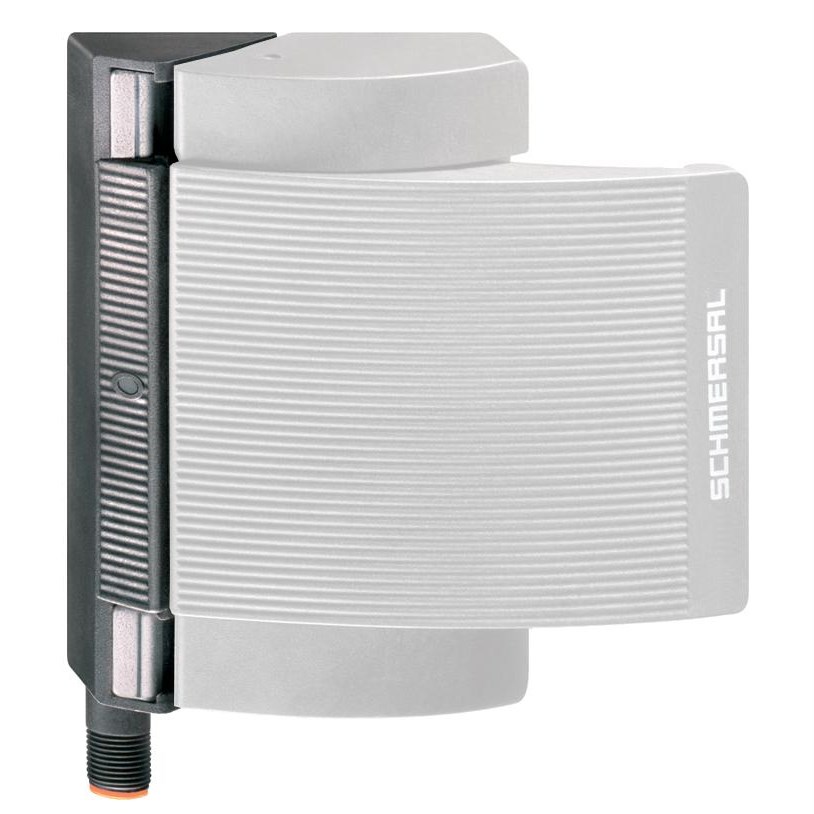

Schmersal 101186261 Magnetic Safety Sensor 1NO+2NC

Product Code: 101186261

  • Compact size: 43.3mm x 119.5mm x 140mm
  • Durable glass fibre reinforced thermoplastic housing
  • High protection rating: IP67
  • Reliable contact config: 1NO+2NC
  • Complies with BG-GS-ET-14, cULus, EN IEC 60947-5-3 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 0.24
Rated Maximum Operational Voltage DC (V) 24
Nominal Power (W) 3
Product Type Magnetic Safety Sensor
Brand SCHMERSAL
Series BNS-B20
Contact Configuration 1NO+2NC
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Operational Temperature 70 deg C
Rated Current 0.24 A
Rated Frequency 5 Hz
Rated Power 3 W
Rated Voltage 24 VDC
Sensor Size 43.3 mm L x 119.5 mm W x 140 mm H
Shock Resistance 30 g/ms, 11 g/ms
Standards and Approvals BG-GS-ET-14, cULus, EN IEC 60947-5-3
Vibration Resistance 10-55 Hz

Description

Enhance machine safety with the Schmersal BNS-B20 series safety sensor, designed for reliability and durability. This thermoplastic-encased sensor features a magnetic actuating element and is suitable for applications requiring two openers and one shutter. It boasts two safety contacts without the need for cable wires, ensuring a streamlined installation process. The left-hinged door design integrates seamlessly with an M12 connector terminal, supporting a switching voltage of 24 VDC, current of 0.24 A, and capacity of 3 W. Ideal for engineers prioritizing robust safety in their machinery setups.
