Brand	SCHMERSAL
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
eCl@ss Number, Version 11.0	27-27-26-01
eCl@ss Number, Version 9.0	27-27-26-01
Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
ETIM 6.0	EC000030
ETIM 7.0	EC000030
Gross Weight (g)	32.319
Maximum Ambient Temperature (°C)	65
Maximum Cable Cross Section (mm²)	2.5
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-25
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	10000000 Operations
Net Weight (g)	1300
Rated Impulse Withstand Voltage (kV)	0.8
Rated Insulation Voltage (V)	250
Sensor Height (mm)	64
Sensor Length (mm)	55
Standards	EN IEC 60947-5-1 / EN IEC 60947-1
Switching Element	NO contact, NC contact
Switching Principle	slow action, positive break NC contact
Terminal Type	Screw terminals
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC

Position Switches & Sensors

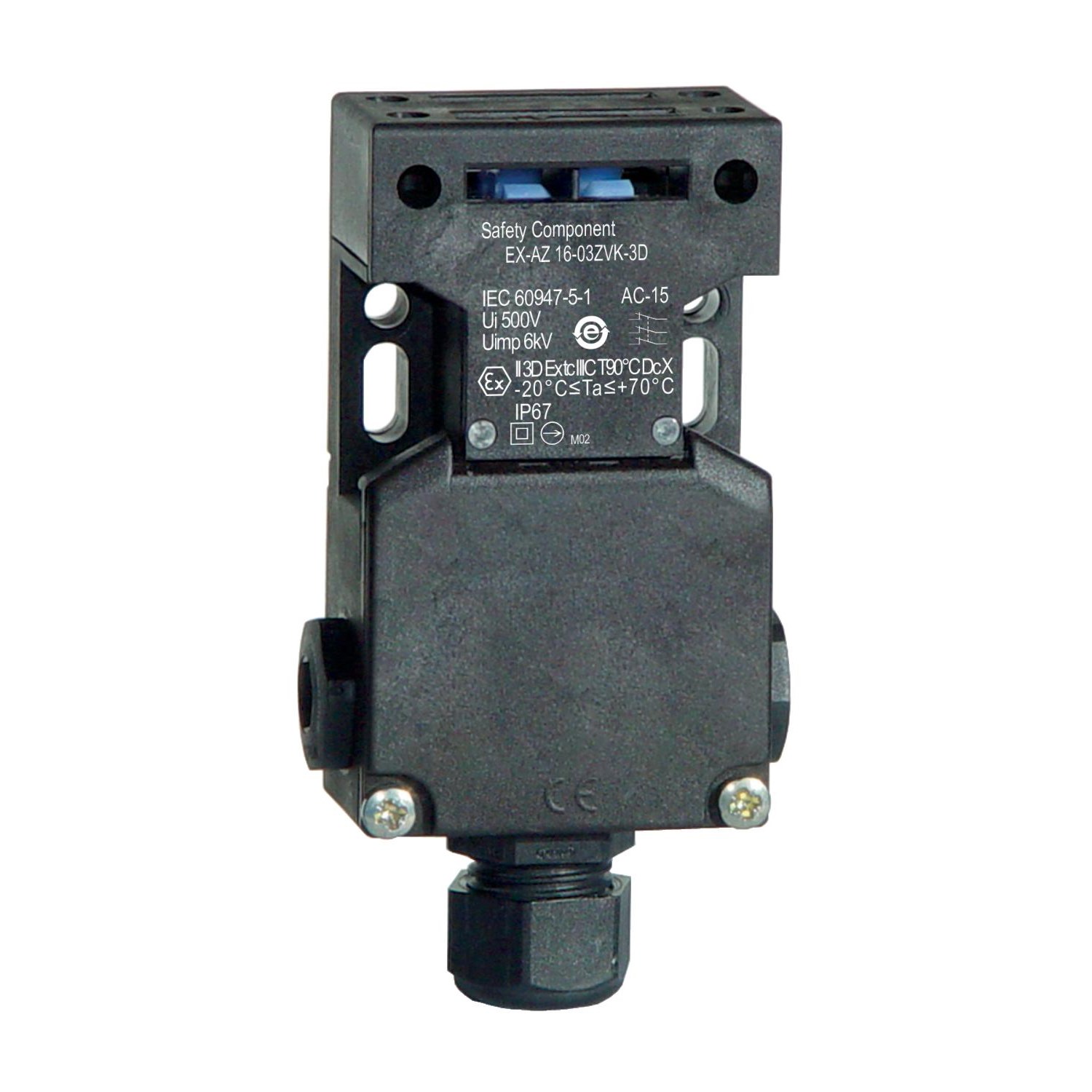

SCHMERSAL EX-SAFETY SWITCH WITH SEPARATE ACTUATOR 101195484
