Specifications

Minimum Ambient Temperature (°C)	-30
Standards	EN IEC 60947-5-1 / EN ISO 14119
Sensor Length (mm)	49
EAN	4030660000000
eCl@ss Number, Version 9.0	27-37-13-02
Sensor Height (mm)	90
ETIM 7.0	EC000204
ETIM 6.0	EC002593
eCl@ss Number, Version 11.0	27-27-26-03
Minimum Mechanical Life	1000000 Operations
Gross Weight (g)	37.75
Utilisation Category AC-15	240 VAC
Utilisation Category DC-13	24 VDC
Net Weight (g)	49.14
Enclosure Material	Glass-fibre, reinforced thermoplastic
Maximum Ambient Temperature (°C)	50

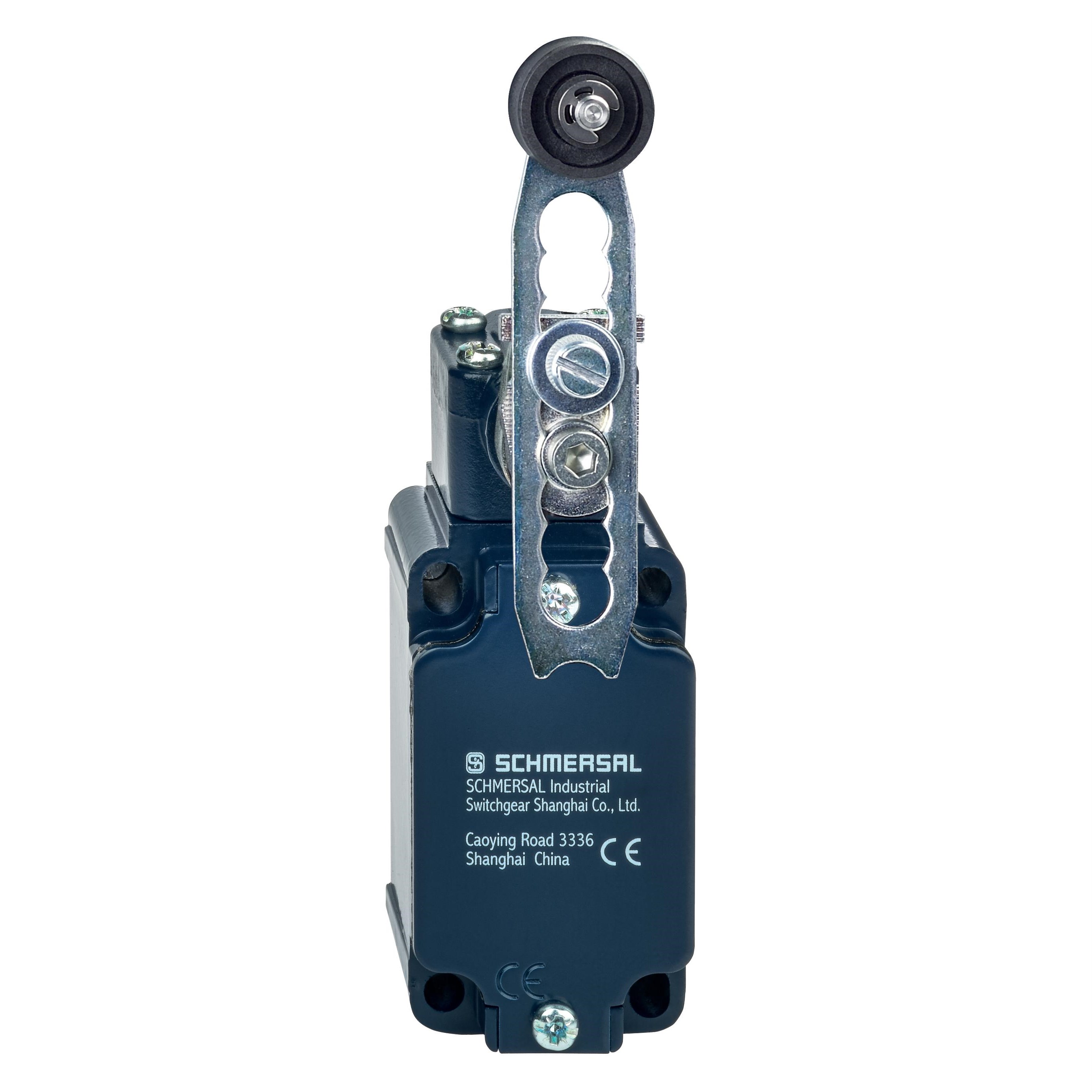

Product Type	EX Position Switch with Safety Function
Brand	SCHMERSAL
Action	Slow Action
Actuating Element	Roller Lever
Actuating Speed	1 m/s
Contact Material	Silver
Degree of Protection	IP65
Housing Material	Metal, Die Cast Zinc
Mechanical Life	1000000 Cycles
Operational Temperature	-30 to 50 deg C
Rated Current	4 A
Rated Frequency	1800/h
Rated Insulation Voltage	500 V
Rated Voltage	230 VAC
Sensor Size	57.3 mm L x 40.5 mm W x 173.5 mm H
Standards and Approvals	ATEx, CCC Ex, cULus, EN IEC 60947-5-1, EN ISO 14119, IECEx, INMETRO
Terminal Type	Screw terminals
Weight	400 g
Wire Size	13 AWG
