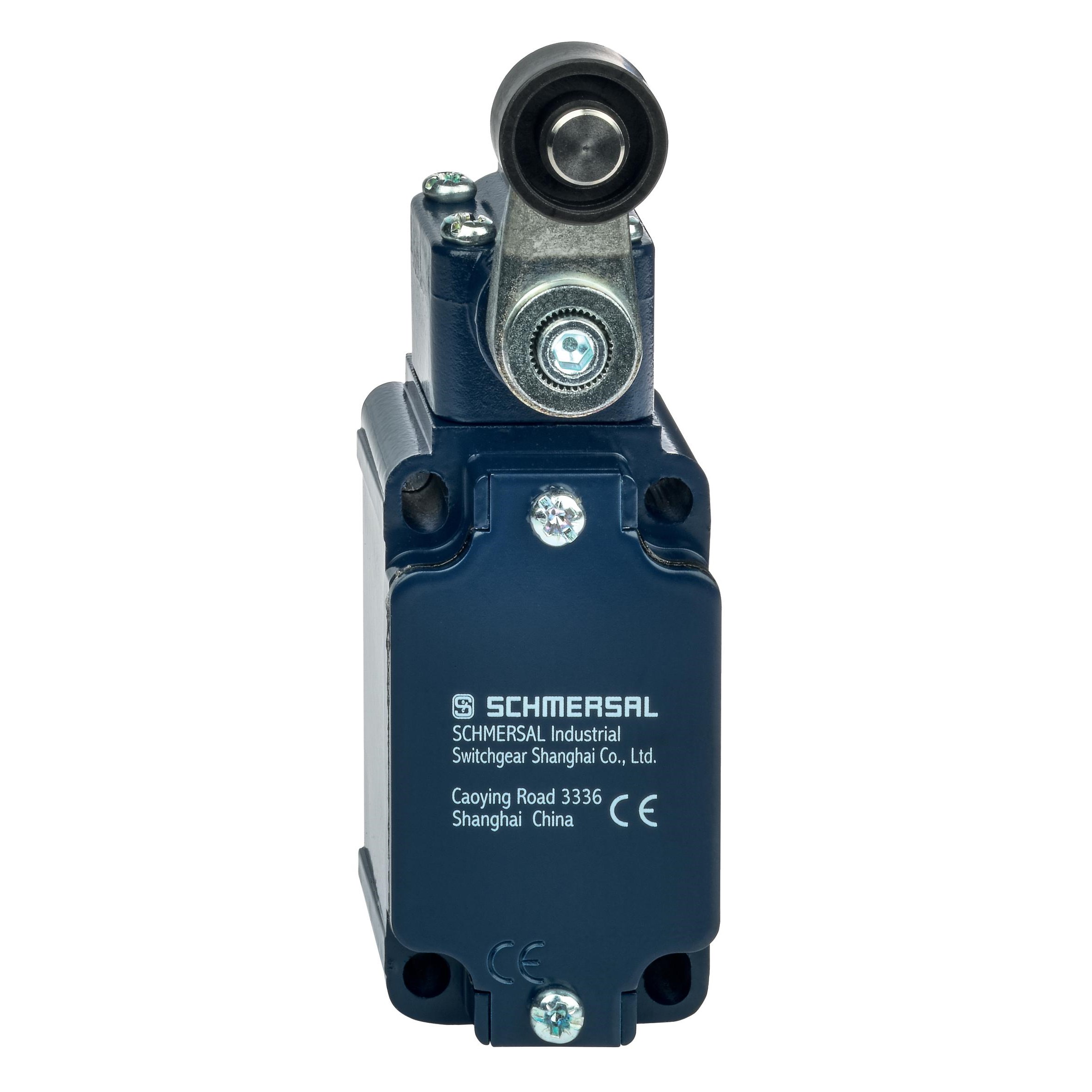

Schmersal 101212057 EX Position Switch with Safety Function 230VAC NC

Product Code: 101212057

  • Rated voltage of 230 VAC with 4 A current
  • Durable metal, die-cast zinc housing
  • IP67 protection for harsh environments
  • Certified to ATEx, IECEx, and more standards
  • Long mechanical life of 1 million cycles
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) -20
Product Type EX Position Switch with Safety Function
Brand SCHMERSAL
Series Ex-T335
Action Slow Action
Contact Configuration NC
Contact Material Silver
Degree of Protection IP67
Housing Material Metal, Die Cast Zinc
Mechanical Life 1000000 Cycles
Operational Temperature -20 to 60 deg C
Rated Current 4 A
Rated Frequency 1800/h
Rated Insulation Voltage 500 V
Rated Voltage 230 VAC
Sensor Size 60.6 mm L x 40.5 mm W x 134 mm H
Standards and Approvals ATEx, CCC-Ex, cULus, EC000030, EN 60079-1, EN 60079-31, EN 60079-7, EN IEC 60079-0, IECEx, INMETRO
Weight 400 g

Description

Enhance the safety of hazardous areas with the Schmersal EX-T335 position switch, featuring a robust metal enclosure and a roller lever actuating element. This switch is designed to deliver reliable performance with a thermal test current of 5 A and includes an opener (NC) switching element for secure operations. Part of the specialized category for hazardous environments, this position switch ensures compliance and safety in critical applications.
