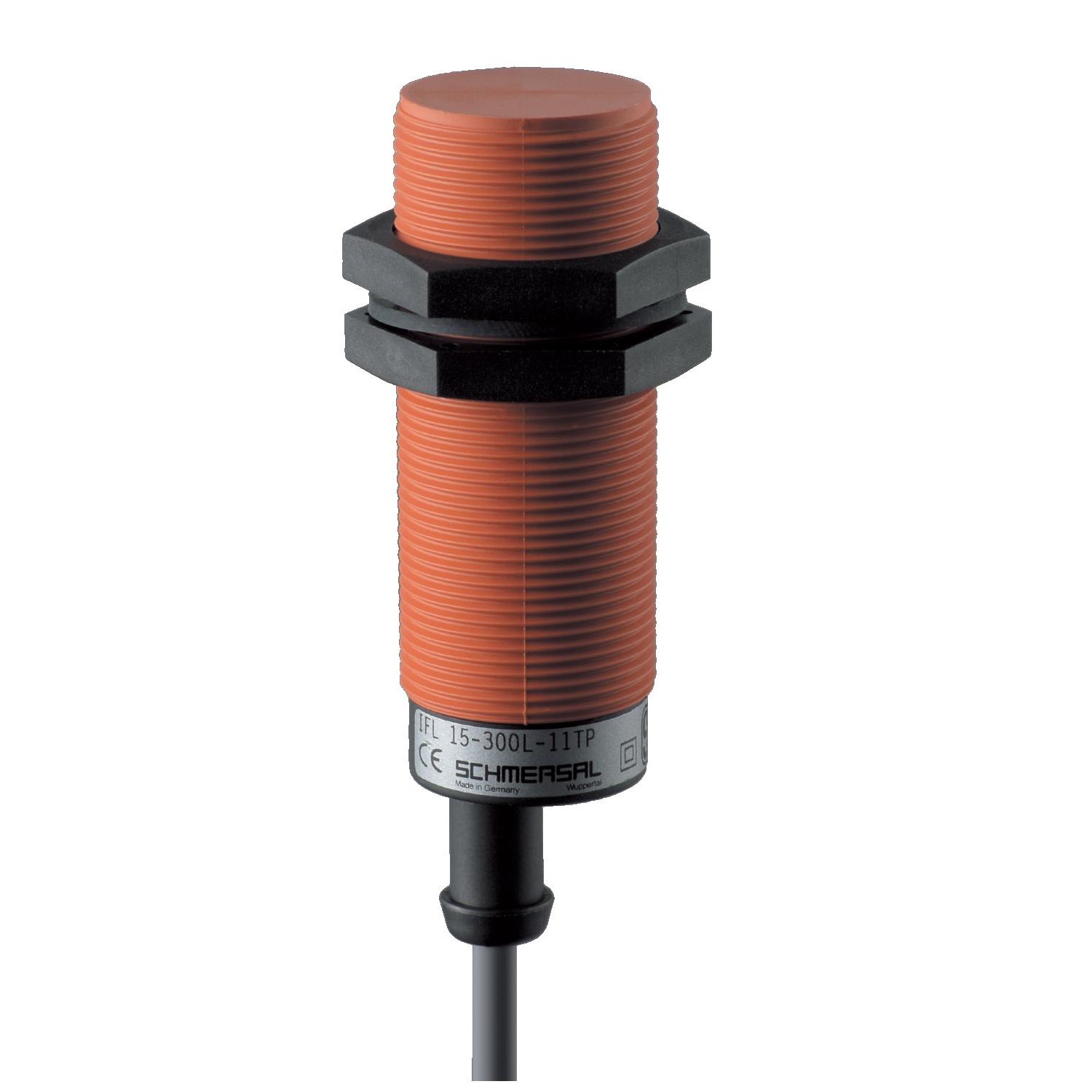

SCHMERSAL IFL15-300L-11TP INDUCTIVE PROXIMITY SWITCH 101126964

Product Code: 101126964

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust sensor designed for precision position sensing in industrial environments. This DC 4-wire, long-bodied switch features a cylindrical M30 ISO thread design for easy installation. It boasts an impressive 15 mm sensing distance and is equipped with both normally open (NO) and normally closed (NC) antivalent contacts to suit diverse application needs. Constructed with a durable thermoplastic enclosure, this switch ensures double insulation for enhanced safety. It operates effectively within a voltage range of 10 to 60 VDC at 400 mA, and its digital output is rated at 1.5 V and 0.4 A, p-type. The device's switching frequency reaches up to 100 Hz, allowing for rapid response times. Engineered with inductive interference protection and polarity reversal safeguards, the Schmersal proximity switch maintains performance integrity even in challenging conditions. Status indication provides real-time operational feedback, while its operating temperature range from -25°C to 70°C ensures reliability across various climates. This proximity switch meets IP67 standards according to IEC/EN 60532, signifying its resistance to dust ingress and water immersion. Ideal for engineers seeking a dependable positioning solution, the Schmersal IFL Series offers precision and durability in one package.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.5
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.4
Rated Maximum Operational Voltage DC (V) 60
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.4
Series IFL
