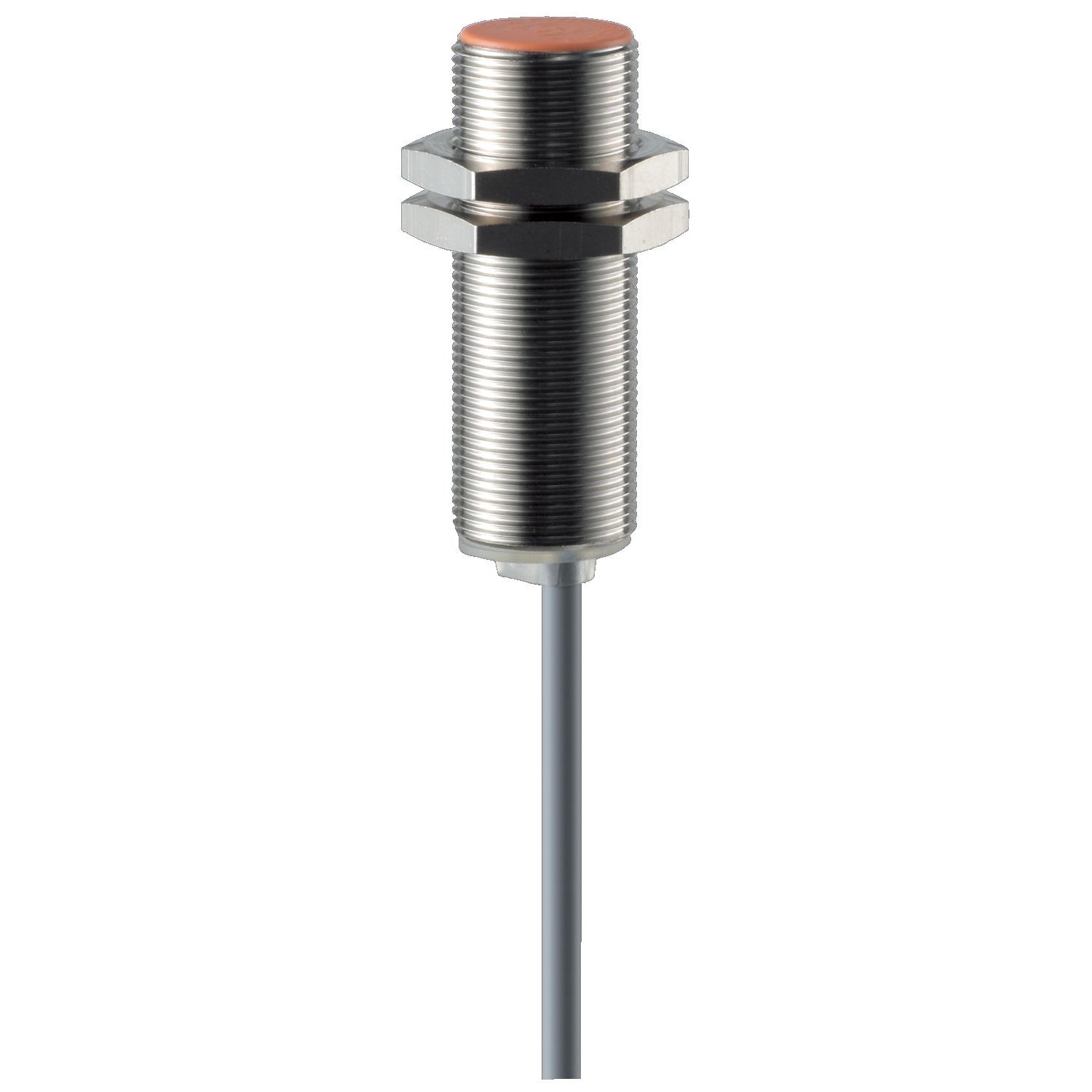

SCHMERSAL IFL5-18-01P INDUCTIVE PROXIMITY SWITCH 101097499

Product Code: 101097499

Explore the Schmersal IFL Series Inductive Proximity Switch, a robust metal-encased sensor designed for precise position sensing in demanding industrial environments. This DC 3-wire cylindrical switch features an M18 ISO thread and offers a reliable 5 mm sensing distance. Engineered with an NC (normally closed) switching element, it ensures operational safety with inductive interference protection, polarity reversal protection, and surge protection. The unit operates within a voltage range of 10 to 30VDC at 200 mA and boasts a high switching frequency of 400 Hz. Its digital output is rated at 1.2 V and 0.2 A, p-type, complemented by clear status indication for ease of monitoring. Durable across temperatures from -25°C to 70°C and IP67 certified for water and dust resistance according to IEC/EN 60532 standards, this proximity switch is an ideal choice for engineers seeking reliable performance in challenging conditions.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operational Current (A) 0.2
Series IFL
