Specifications

Thermal Test Current (A)	10
Minimum Ambient Temperature (°C)	-30
Sensor Length (mm)	43
Actuating Angle	30° - From Left of Switch Axis, 30° - From Right of Switch Axis
Sensor Width (mm)	67
Sensor Height (mm)	356
Rod Diameter (mm)	4
Minimum Actuating Speed (mm/min)	1
Maximum Fuse Rating	20 A gG D-fuse
Rod Material	Metal Film
Maximum Ambient Temperature (°C)	90
Maximum Actuating Speed (m/s)	3

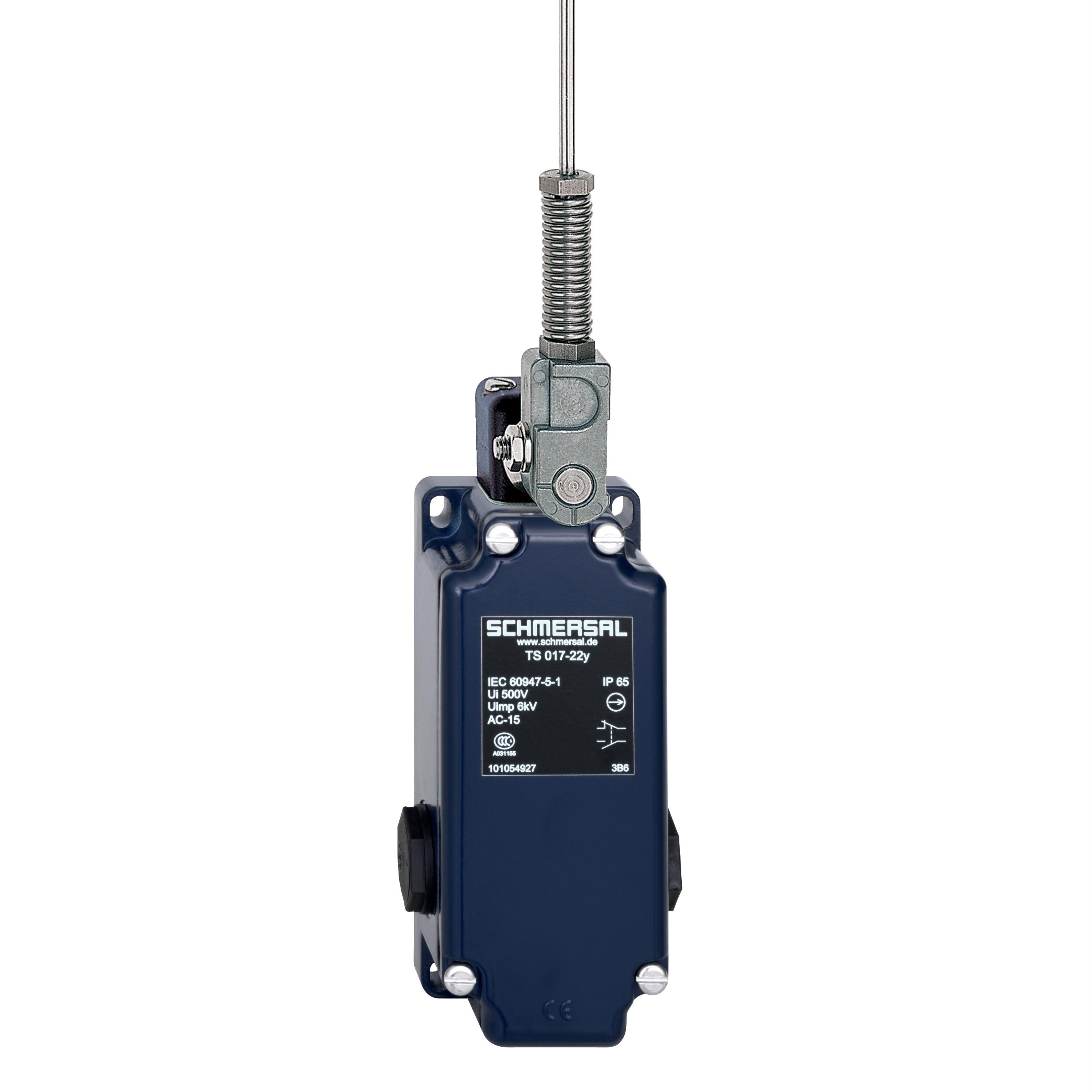

Product Type	Position Switch
Brand	SCHMERSAL
Actuating Element	Rod Lever
Actuating Speed	1 mm/min
Actuator Type	Rod Lever
Contact Material	Silver
Degree of Protection	IP65
Enclosure Coating Material	Painted
Fuse Rating	20 A gG D-Fuse
Housing Material	Die Cast Light Alloy, Painted
Rated Current	10 A
Standards and Approvals	ENIEC 60947-5-1
