Specifications

Ambient Temperature Range (°C)	-25 ... +80
Diameter (mm)	50
Dimensions (mm)	45H
Tightening Torque (Nm)	0.6
Type of Mounting	Mounting flange EFM
Gross Weight (g)	50
Actuating Stroke (mm)	5
Spacing (mm)	50 x 50
Maximum Electrical Switching Frequency	1,000 /h
Bellows Material	Silicone
No. of contact elements (Maximum)	3

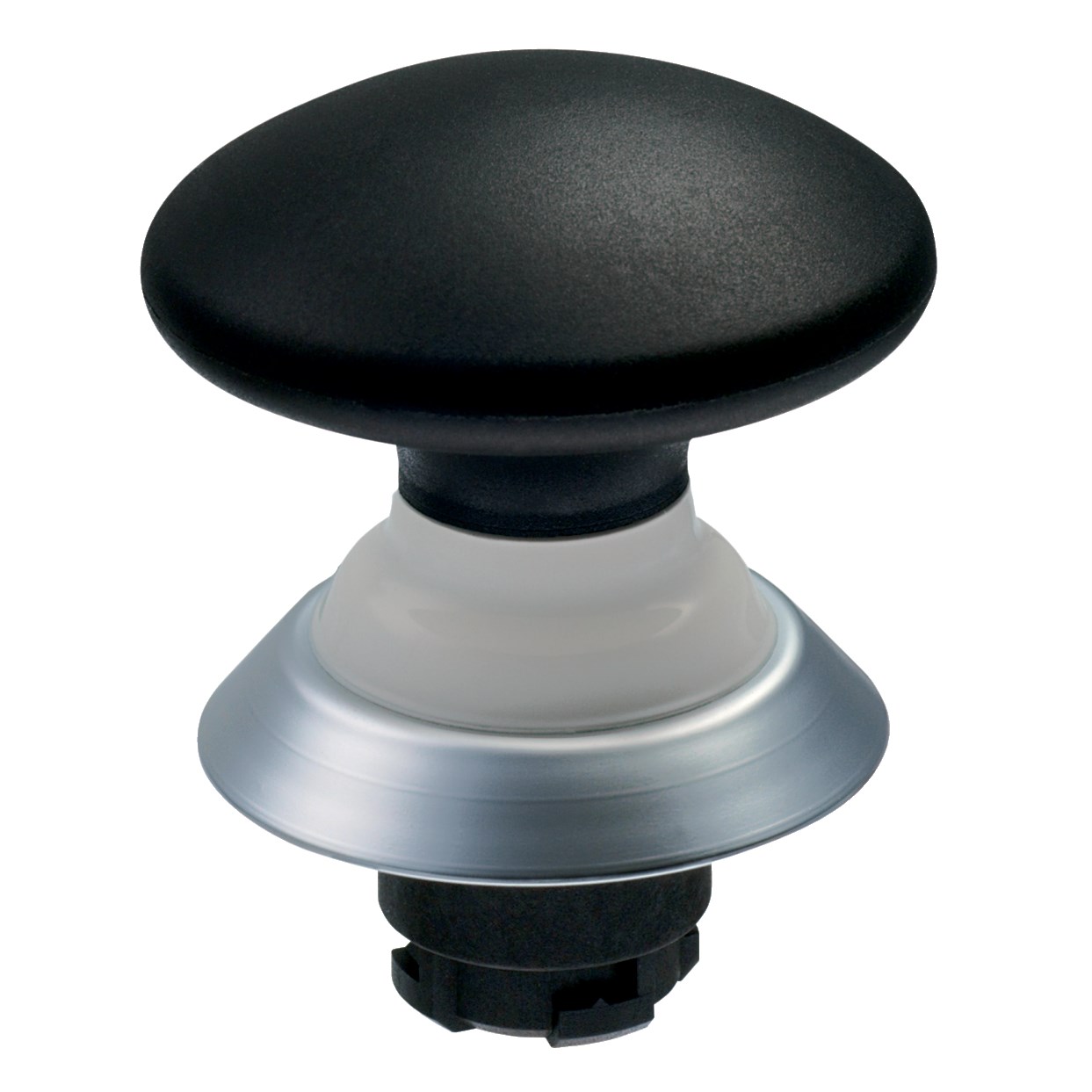

Product Type	Mushroom Pushbutton
Brand	SCHMERSAL
Actuating Torque	0.15 N-m
Actuator Type	Roller Lever
Ambient Temperature	-25 to 80 deg C
Bezel Colour	Black, Silver
Bezel Material	ABS
Degree of Protection	IP67, IP69K
Diameter	50 mm
Front Ring Material	ABS, chrome-plated
Fully Insulated	Yes
Mechanical Life	1 million Operations
Mounting Type	Flange
Operator Material	ABS
Shock Resistance	30 g/ms
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1
Tightening Torque	0.6 N-m
Vibration Resistance	20 g
