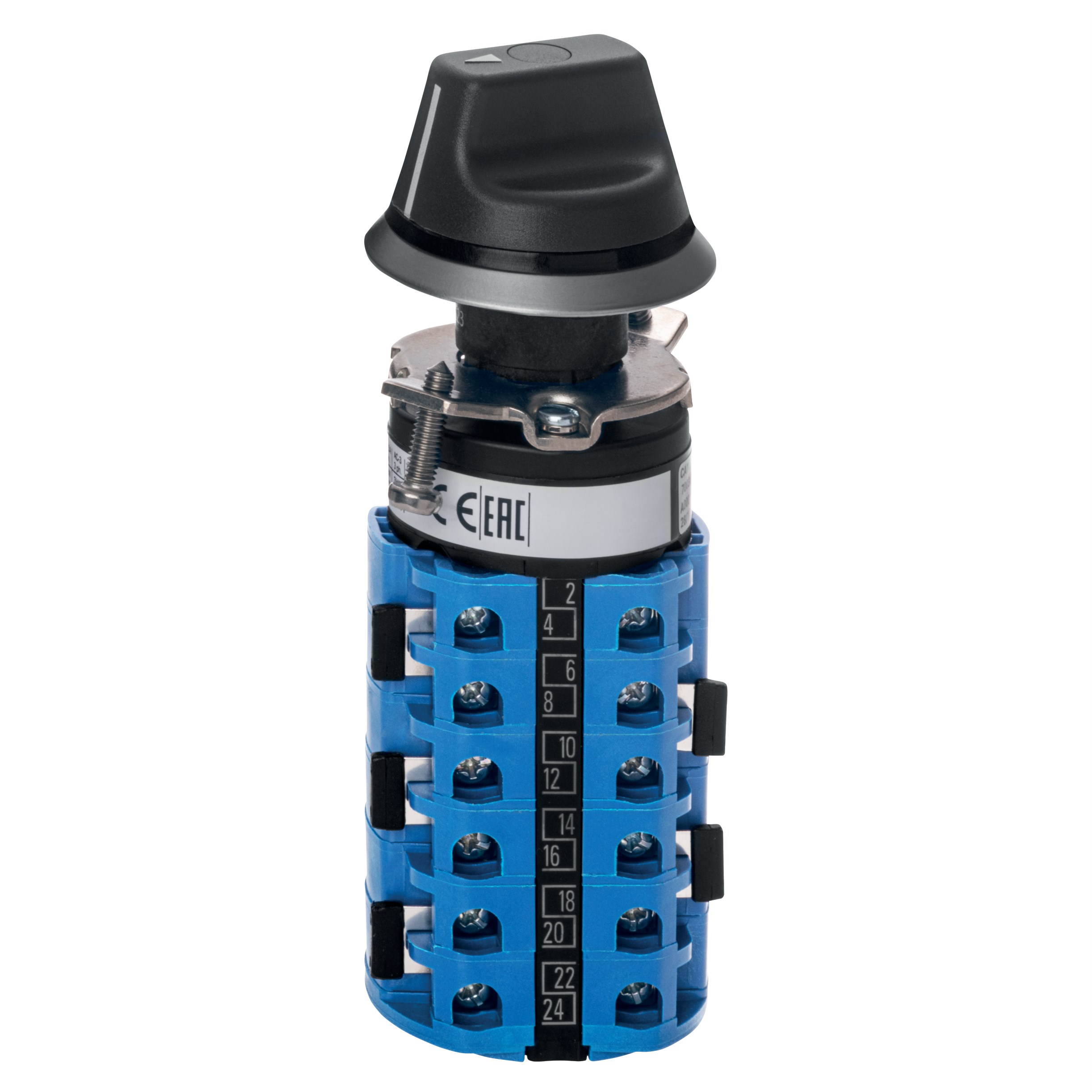

Schmersal 101174644 Selector Step Switch Black/Silver 12Position M20x1.5 Screw Terminal 26mm H

Product Code: 101174644

Black and silver finish for sleek appearance
High protection: IP67, IP69K rated
Durable with 1 million mechanical operations
Operates safely from 0 to 80°C ambient temp
Flange mount with 22.3 mm hole diameter

Specifications

Ambient Temperature Range (°C)	+0 ... +80
Diameter (mm)	44.5
Dimensions (mm)	26H
Rated Insulation Voltage (V)	690
Tightening Torque (Nm)	0.6
No. of Switching Positions	12
Thermal Test Current (A)	20
Switching capacity AC-23	7500
Type of Mounting	Mounting flange EFM
Gross Weight (g)	280
Spacing (mm)	50 x 50
Switching angle (°)	30
Product Type	Selector Step Switch
Brand	SCHMERSAL
Ambient Temperature	0 to 80 deg C
Cable Cross Section	0.75 sq-mm
Colour	Black, Silver
Degree of Protection	IP67, IP69K
Design	Short Toggle
Front Ring Colour	Silver
Front Ring Material	ABS, Chrome Plated
Fully Insulated	Yes
Gross Weight	280 g
Height	26 mm
Hole Diameter	44.5 mm
Installation Conditions	Arbitrarily
Mechanical Life	1 million Operations
Mounting Hole Diameter	22.3 mm
Mounting Type	Flange
Number of Positions	12
Operational Temperature	80 deg C
Operator Material	ABS
Rated Insulation Voltage	690 V
Sealing Type	Membrane, Lip Gaskets
Spacing	50 mm x 50 mm
Standards and Approvals	EN IEC 60204-1, EN IEC 60947-1, EN IEC 60947-5-1/-5-3/-5-5, EN IEC 62061
Switching Angle	30 deg
Terminal Type	M20 x 1.5 mm Screw
Tightening Torque	0.6 N-m
