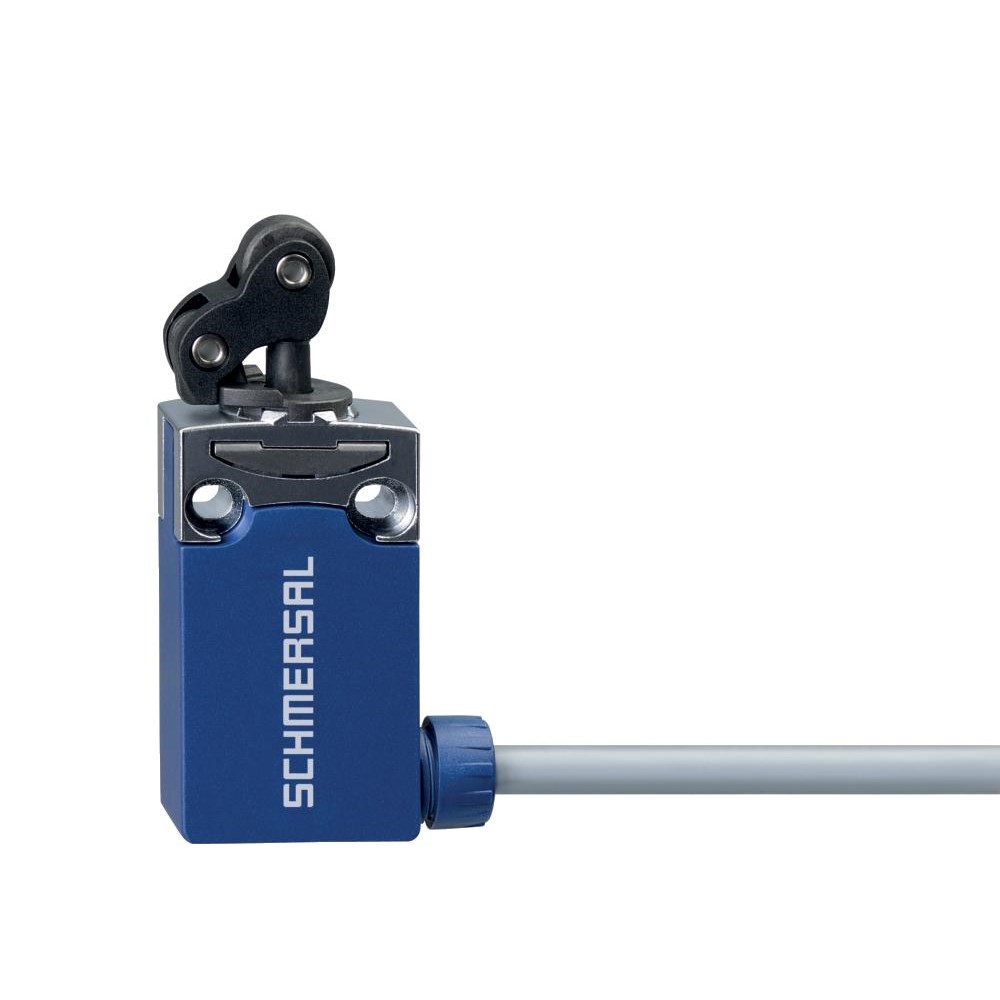

Schmersal 103006570 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006570

  • Durable IP66/IP67 rated protection
  • Long mechanical life of 10 million cycles
  • Operates in -30 to 80°C temperature range
  • Offset roller lever for precise actuation
  • Meets EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Series PS116
Action Slow Action
Actuating Element Offset Roller Lever
Actuating Speed 60 mm/min
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP66, IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 10000000 Cycles
Operational Temperature -30 to 80 deg C
Rated Current 1.5 A
Rated Frequency 5000/h
Rated Insulation Voltage 300 V
Rated Voltage 240 VAC
Sensor Size 16.6 mm L x 31 mm W x 79 mm H
Standards and Approvals CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Weight 175 g

Description

Explore the Schmersal PS116 Series Position Switch, a robust machine safety solution featuring a thermoplastic enclosure designed for durability. This switch includes an offset roller lever actuating element (K210) and provides reliable slow action switching with both NO and NC contacts. It is equipped with one auxiliary contact and one safety contact, ensuring secure operations. With a thermal test current of 5A, it meets utilisation categories AC-15 at 240 VAC with a rated operational current of 3A, and DC-13 at 24 VDC with a rated operational current of 1.5A. The PS116 series is engineered to enhance safety in industrial environments while maintaining high performance standards.
