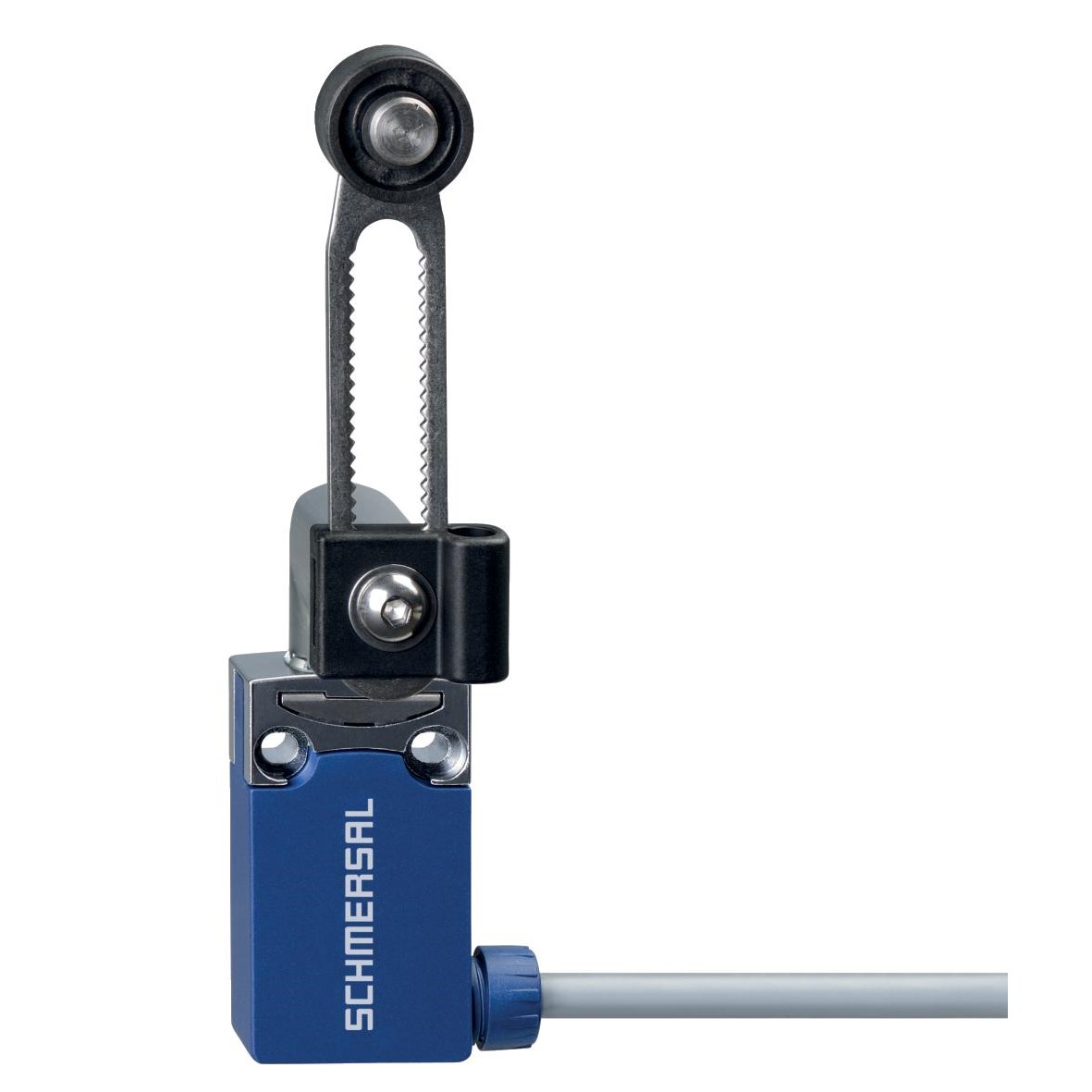

Schmersal 103006596 Position Switch with Safety Function 240VAC 1NO+2NC

Product Code: 103006596

  • Suitable for 240 VAC and 1.5 A applications
  • Durable with 10 million mechanical cycles
  • IP66/IP67 rated for robust protection
  • Operates in -30 to 80°C temperature range
  • Complies with EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Series PS116
Action Slow Action
Actuating Element Roller Lever
Actuating Speed 60 mm/min
Contact Configuration 1NO+2NC
Contact Material Silver
Degree of Protection IP66, IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 10000000 Cycles
Operational Temperature -30 to 80 deg C
Rated Current 1.5 A
Rated Frequency 5000/h
Rated Insulation Voltage 300 V
Rated Voltage 240 VAC
Sensor Size 16.6 mm L x 31 mm W x 139 mm H
Standards and Approvals CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Weight 257 g

Description

Explore the Schmersal PS116 Series Position Switch, designed for robust machine safety. This switch features a durable thermoplastic enclosure and is equipped with a roller lever actuating element N200 for precise operation. It includes both NO and NC contacts with slow action switching for reliable performance. The unit comes with one auxiliary contact and two safety contacts, ensuring comprehensive protection. Rated for a thermal test current of 5 A, it can handle up to 240 VAC at 3 A in AC-15 utilization category and up to 24 VDC at 1.5 A in DC-13 utilization category, making it versatile for various applications. Trust in the quality of Schmersal's engineering for your machine safety needs with this dependable position switch.
