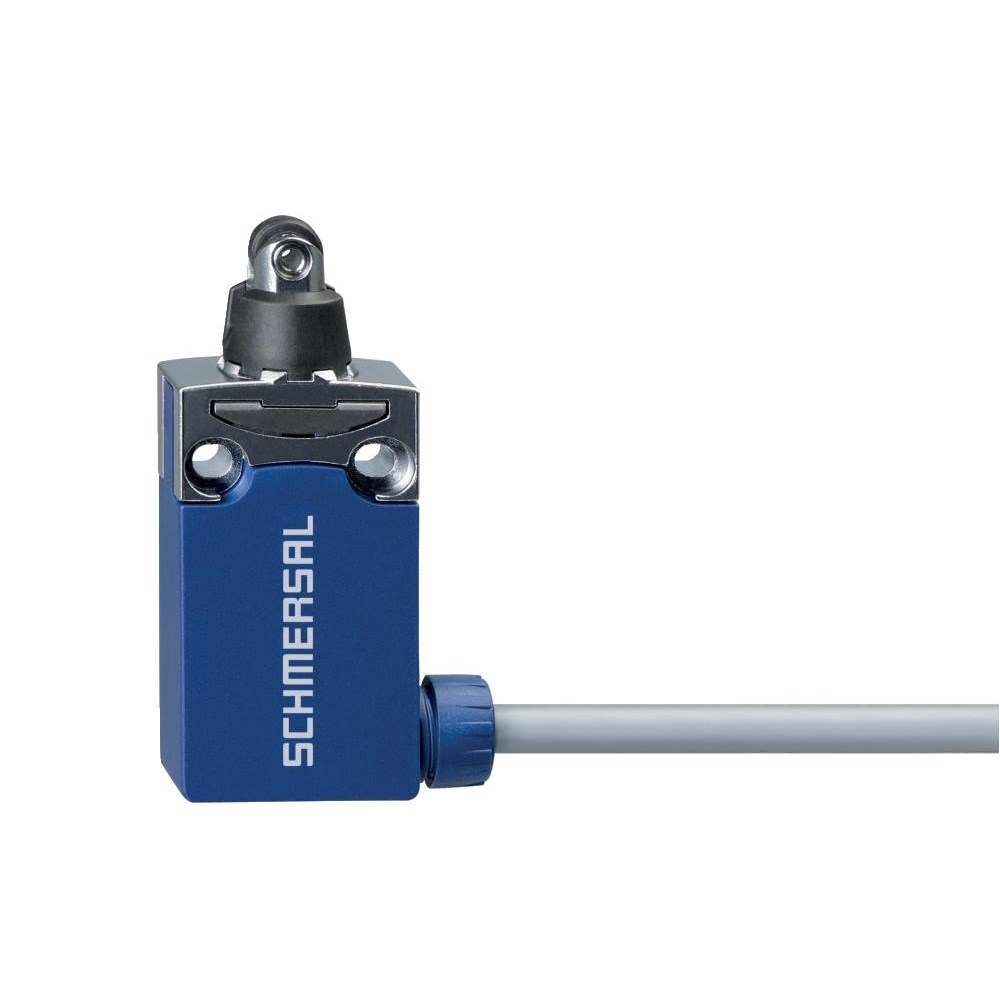

Schmersal 103006566 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006566

  • Durable glass fibre reinforced thermoplastic housing
  • High protection with IP66 and IP67 ratings
  • Operates in -30 to 80°C temperature range
  • Long mechanical life of 10 million cycles
  • Certified by CCC, cULus, EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Series PS116
Action Slow Action
Actuating Element Roller Plunger
Actuating Speed 60 mm/min
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP66, IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 10000000 Cycles
Operational Temperature -30 to 80 deg C
Rated Current 1.5 A
Rated Frequency 5000/h
Rated Insulation Voltage 300 V
Rated Voltage 240 VAC
Sensor Size 16.6 mm L x 31 mm W x 74.1 mm H
Standards and Approvals CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Weight 177 g

Description

The Schmersal PS116 series position switch is designed for machine safety with a robust thermoplastic enclosure and a roller plunger actuating element R200. This switch features both NO and NC contacts with slow action, one auxiliary contact, and one safety contact. It has a thermal test current of 5 A and meets utilisation categories AC-15 with a rating of 240 VAC at 3 A, as well as DC-13 with a rating of 24 VDC at 1.5 A. Ideal for engineers looking for reliable performance in safety-critical applications.
