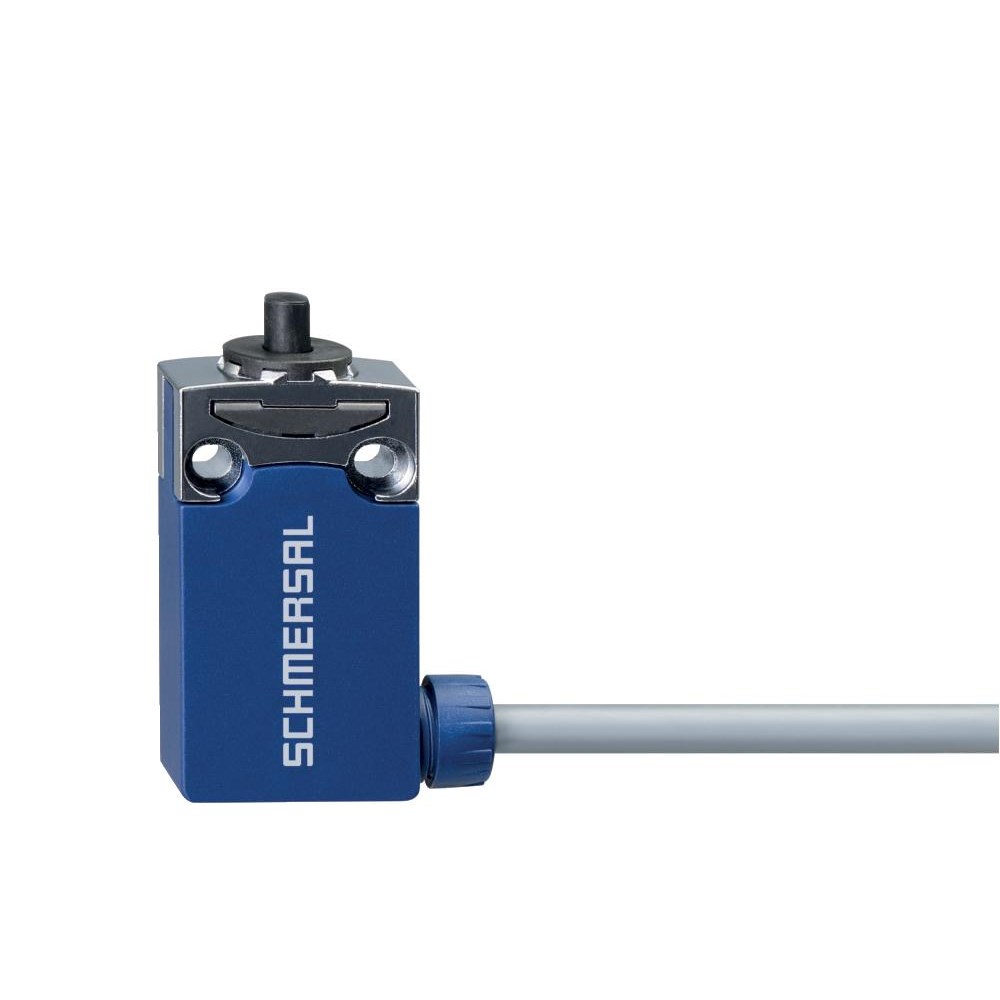

Schmersal 103006564 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006564

  • Rated for 240 VAC, 1.5 A
  • Durable with 10M mechanical cycles
  • IP66/IP67 protection against dust & water
  • Operates in -30 to 80°C range
  • Certified by BG-GS, CCC, cULus
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Series PS116
Action Slow Action
Actuating Element Plunger Shape S200
Actuating Speed 60 mm/min
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP66, IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 10000000 Cycles
Operational Temperature -30 to 80 deg C
Rated Current 1.5 A
Rated Frequency 5000/h
Rated Insulation Voltage 300 V
Rated Voltage 240 VAC
Sensor Size 16.6 mm L x 31 mm W x 64 mm H
Standards and Approvals BG-GS-ET-15, CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Weight 171 g

Description

Explore the Schmersal PS116 Series Position Switch, a robust machine safety solution featuring a thermoplastic enclosure designed for durability. This switch includes a plunger S200 actuating element and offers both NO and NC contacts with slow action for precise operation. It is equipped with one auxiliary contact and one safety contact, ensuring reliable performance in critical applications. With a thermal test current of 5 A, it can handle utilisation categories AC-15 at 240 VAC up to 3 A and DC-13 at 24 VDC up to 1.5 A. Ideal for engineers seeking dependable safety switches that meet stringent requirements without compromising on quality or performance.
