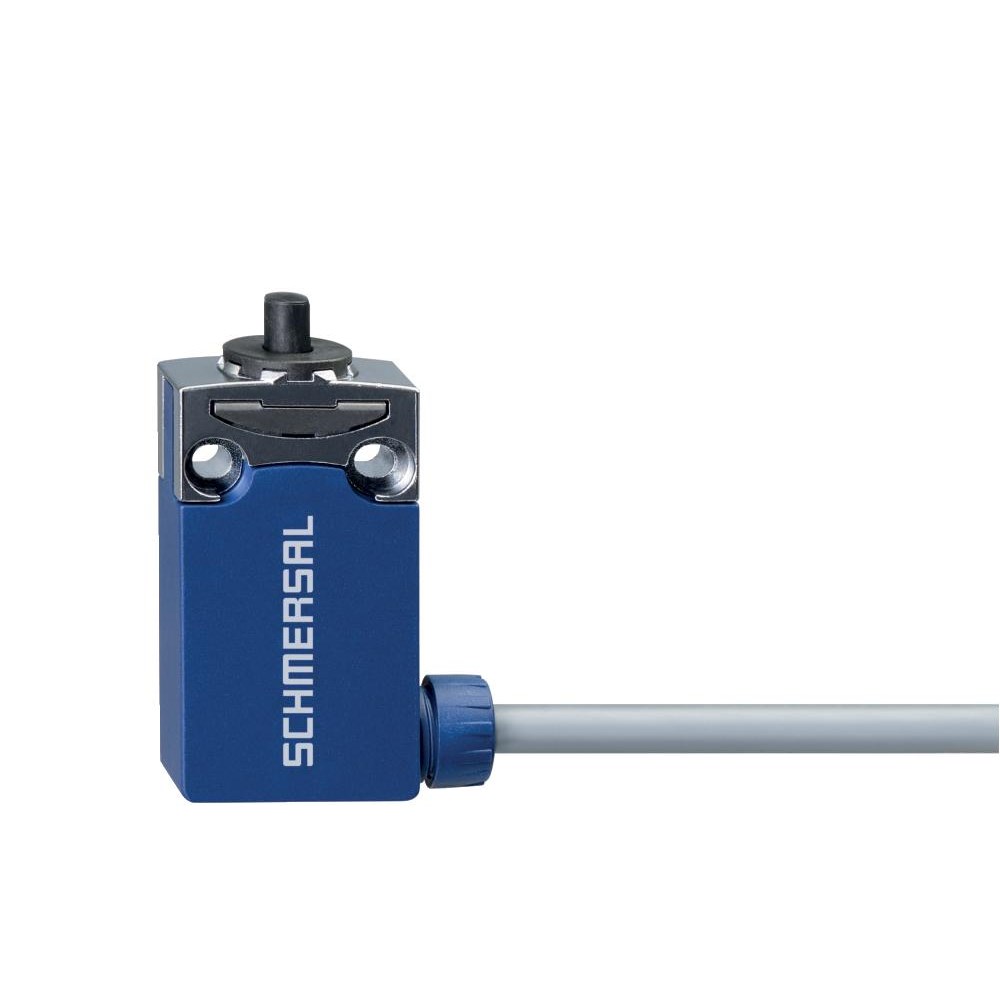

Schmersal 103006583 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006583

  • 240 VAC, 1.5 A rated for reliable performance
  • Durable with 10 million mechanical cycles
  • IP66/IP67 protection against dust and water
  • Operates in -30 to 80°C temperature range
  • Compliant with CCC, cULus, EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Series PS116
Action Slow Action
Actuating Element Plunger Shape S200
Actuating Speed 60 mm/min
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP66, IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 10000000 Cycles
Operational Temperature -30 to 80 deg C
Rated Current 1.5 A
Rated Frequency 5000/h
Rated Insulation Voltage 300 V
Rated Voltage 240 VAC
Sensor Size 16.6 mm L x 31 mm W x 64 mm H
Standards and Approvals CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Weight 130 g

Description

Explore the Schmersal PS116 Series Position Switch, designed for robust machine safety. This switch features a durable thermoplastic enclosure with a precise plunger S200 actuating element. It includes both NO and NC contacts with slow action for reliable operation. Equipped with one auxiliary and one safety contact, it ensures secure integration into your system. The switch is rated for a thermal test current of 5 A and meets utilisation categories AC-15 at 240 VAC, 3 A, as well as DC-13 at 24 VDC, 1.5 A. Ideal for various industrial applications, the PS116 series enhances safety without compromising on performance.
