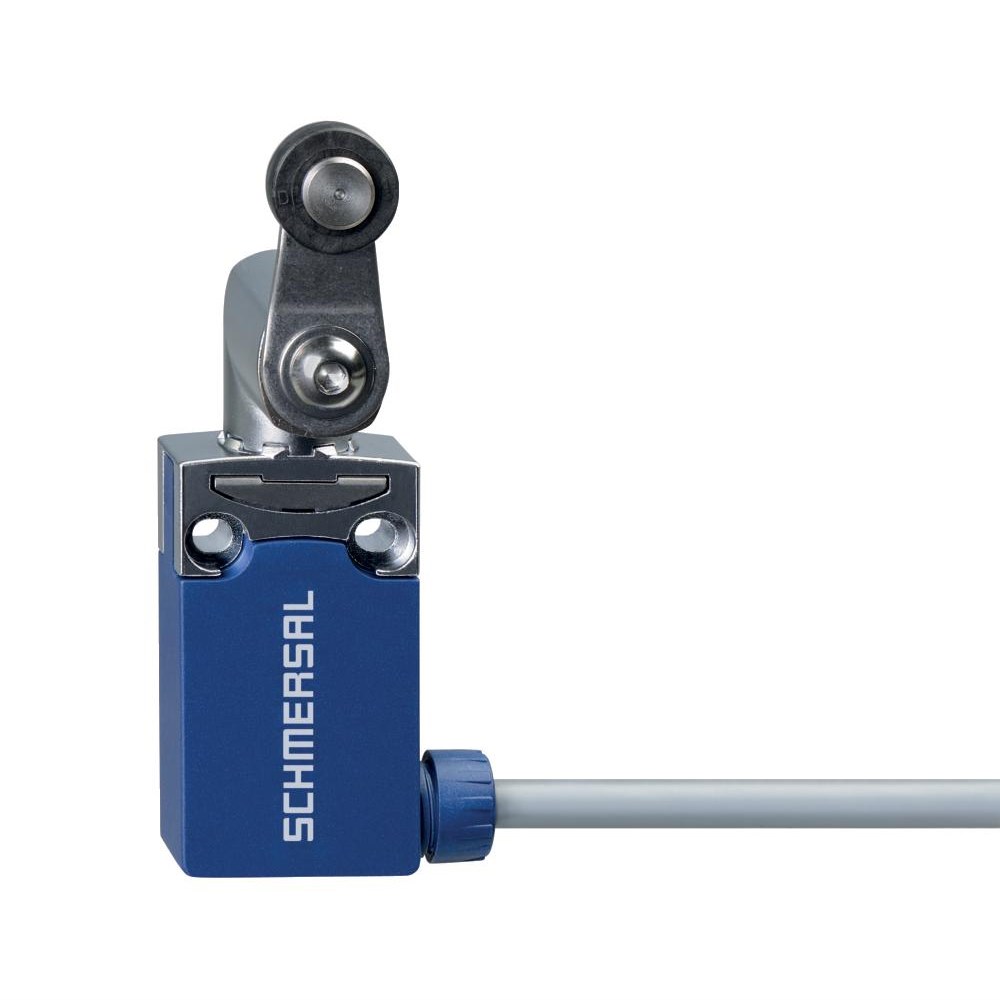

Schmersal 103006594 Position Switch with Safety Function 240VAC 1NO+2NC

Product Code: 103006594

  • Durable plastic, glass fibre reinforced housing
  • High protection with IP66/IP67 rating
  • Operates in -30 to 80°C temperature range
  • Long mechanical life of 10 million cycles
  • Certified to CCC, cULus, EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Series PS116
Action Slow Action
Actuating Element Roller Lever
Actuating Speed 60 mm/min
Contact Configuration 1NO+2NC
Contact Material Silver
Degree of Protection IP66, IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 10000000 Cycles
Operational Temperature -30 to 80 deg C
Rated Current 1.5 A
Rated Frequency 5000/h
Rated Insulation Voltage 300 V
Rated Voltage 240 VAC
Sensor Size 16.6 mm L x 31 mm W x 101 mm H
Standards and Approvals CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Weight 190 g

Description

The Schmersal PS116 series position switch is designed for machine safety applications, featuring a durable thermoplastic enclosure and an H200 roller lever actuating element. This switch offers reliable operation with slow action switching elements, including both NO and NC contacts. It includes one auxiliary contact and two safety contacts, ensuring versatile integration into various control systems. With a thermal test current of 5 A, it can handle utilisation categories AC-15 at 240 VAC up to 3 A and DC-13 at 24 VDC up to 1.5 A. The PS116 is an essential component for engineers looking for a robust safety solution in industrial environments.
