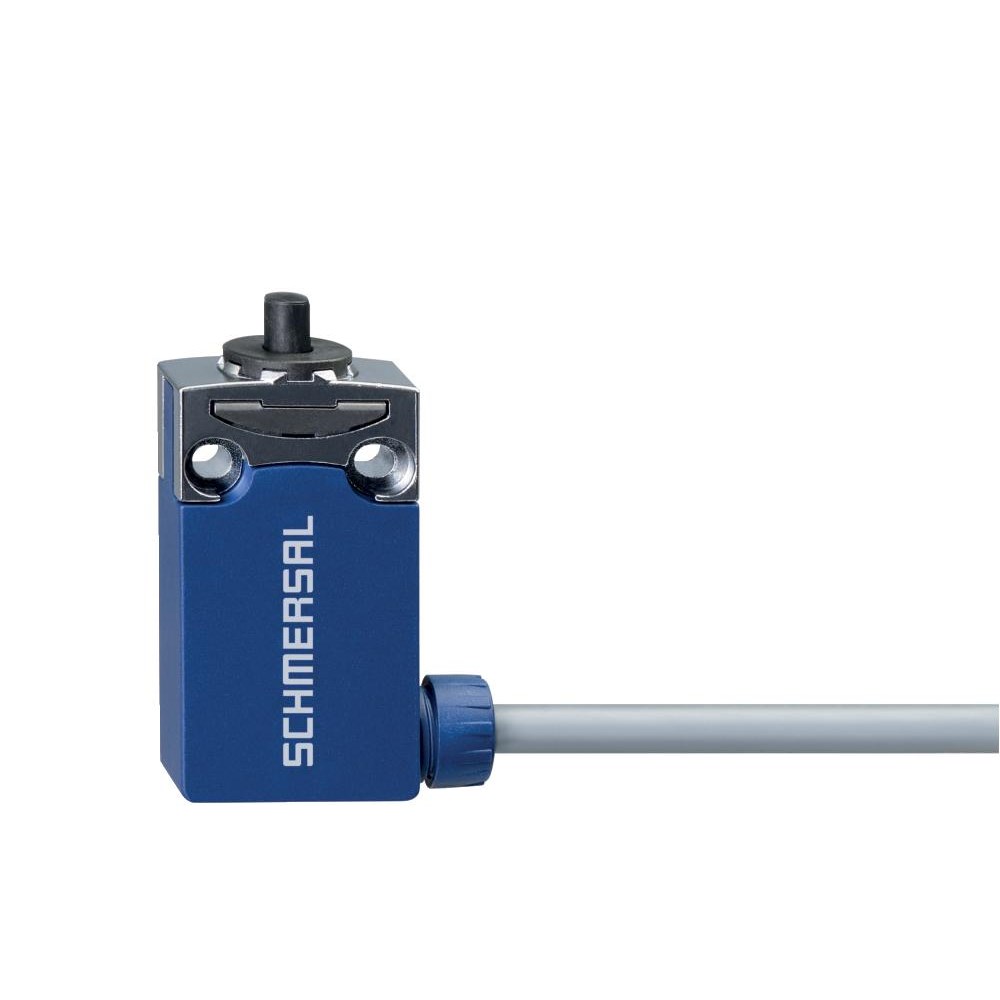

Schmersal 103006585 Position Switch with Safety Function 240VAC 2NO+1NC

Product Code: 103006585

  • Durable thermoplastic housing, IP66/IP67 rated
  • Supports up to 10 million mechanical cycles
  • Operates in -30 to 80°C temperature range
  • Certified by CCC, cULus, EN IEC standards
  • Slow action with a plunger-shaped actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Series PS116
Action Slow Action
Actuating Element Plunger Shape S200
Actuating Speed 60 mm/min
Contact Configuration 2NO+1NC
Contact Material Silver
Degree of Protection IP66, IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 10000000 Cycles
Operational Temperature -30 to 80 deg C
Rated Current 1.5 A
Rated Frequency 5000/h
Rated Insulation Voltage 300 V
Rated Voltage 240 VAC
Sensor Size 16.6 mm L x 31 mm W x 64 mm H
Standards and Approvals CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Weight 186 g

Description

Explore the Schmersal PS116 Series Position Switch, designed for robust machine safety applications. This switch features a durable thermoplastic enclosure with a plunger S200 actuating element. It includes both NO and NC contacts with slow action switching for precise operation. Equipped with two auxiliary contacts and one safety contact, it ensures reliable connectivity. The switch is rated for a thermal test current of 5 A and meets utilisation categories AC-15 at 240 VAC, 3 A, and DC-13 at 24 VDC, 1.5 A, making it versatile for various electrical requirements. Trust in the quality of Schmersal for your machine safety needs.
