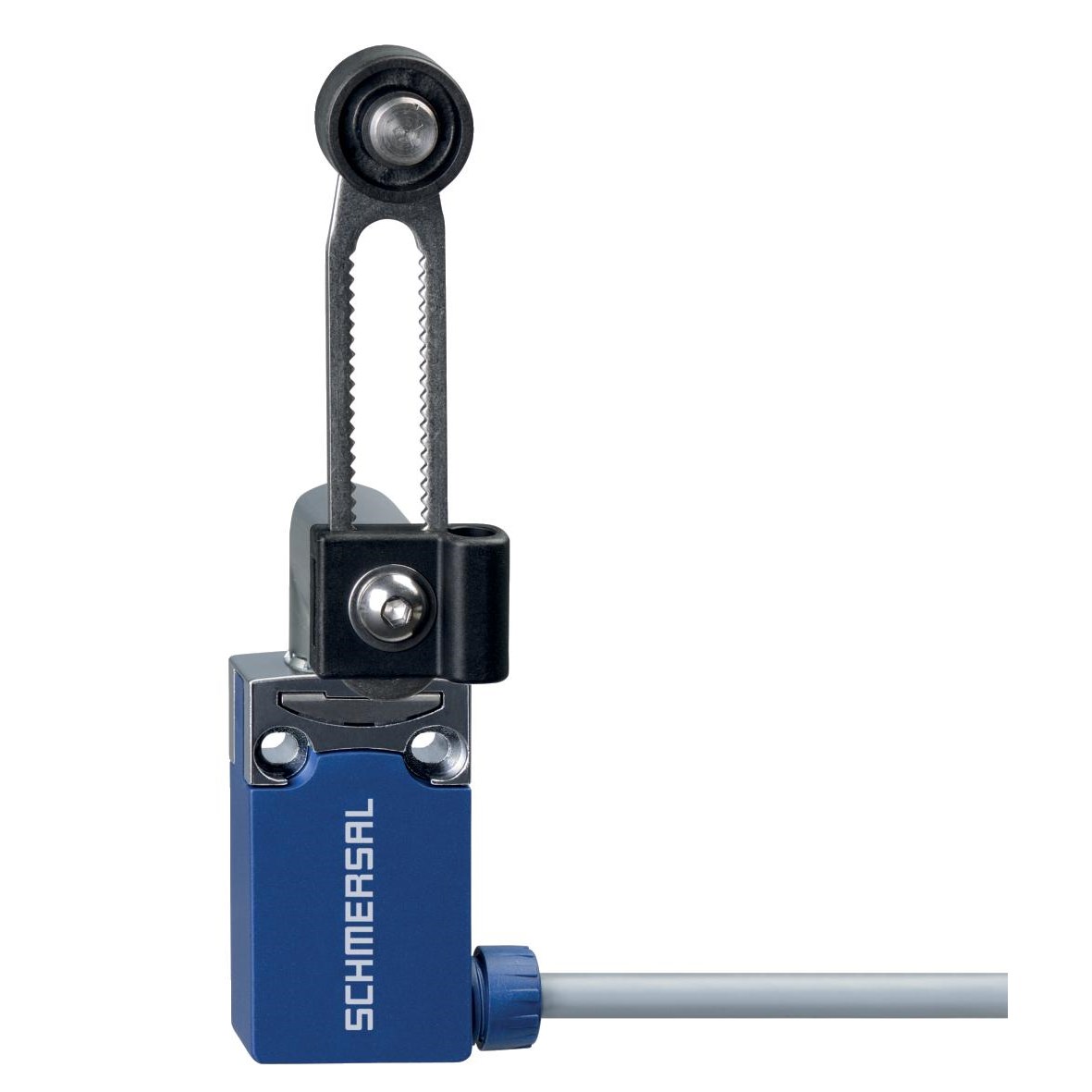

Schmersal 103006595 Position Switch with Safety Function 240VAC 1NO+2NC

Product Code: 103006595

  • Durable plastic housing with glass fibre reinforcement
  • High protection level: IP66/IP67 rated
  • Wide operating temp range: -30 to 80°C
  • Long mechanical life: 10 million cycles
  • Complies with CCC, cULus, EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Series PS116
Action Snap Action
Actuating Element Roller Lever
Actuating Speed 10 mm/min
Contact Configuration 1NO+2NC
Contact Material Silver
Degree of Protection IP66, IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 10000000 Cycles
Operational Temperature -30 to 80 deg C
Rated Current 1.5 A
Rated Frequency 5000/h
Rated Insulation Voltage 300 V
Rated Voltage 240 VAC
Sensor Size 16.6 mm L x 31 mm W x 139 mm H
Standards and Approvals CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Weight 257 g

Description

The Schmersal PS116 series position switch is designed for machine safety with a robust thermoplastic enclosure and a roller lever actuating element N200. This switch features both NO and NC contacts with snap action, one auxiliary contact, and two safety contacts. It has a thermal test current of 5 A and can operate in various utilisation categories: AC-15 at 240 VAC with 1.5 A, and DC-13 at 24 VDC with 1.5 A. Ideal for engineers looking for reliable switching solutions in industrial environments.
