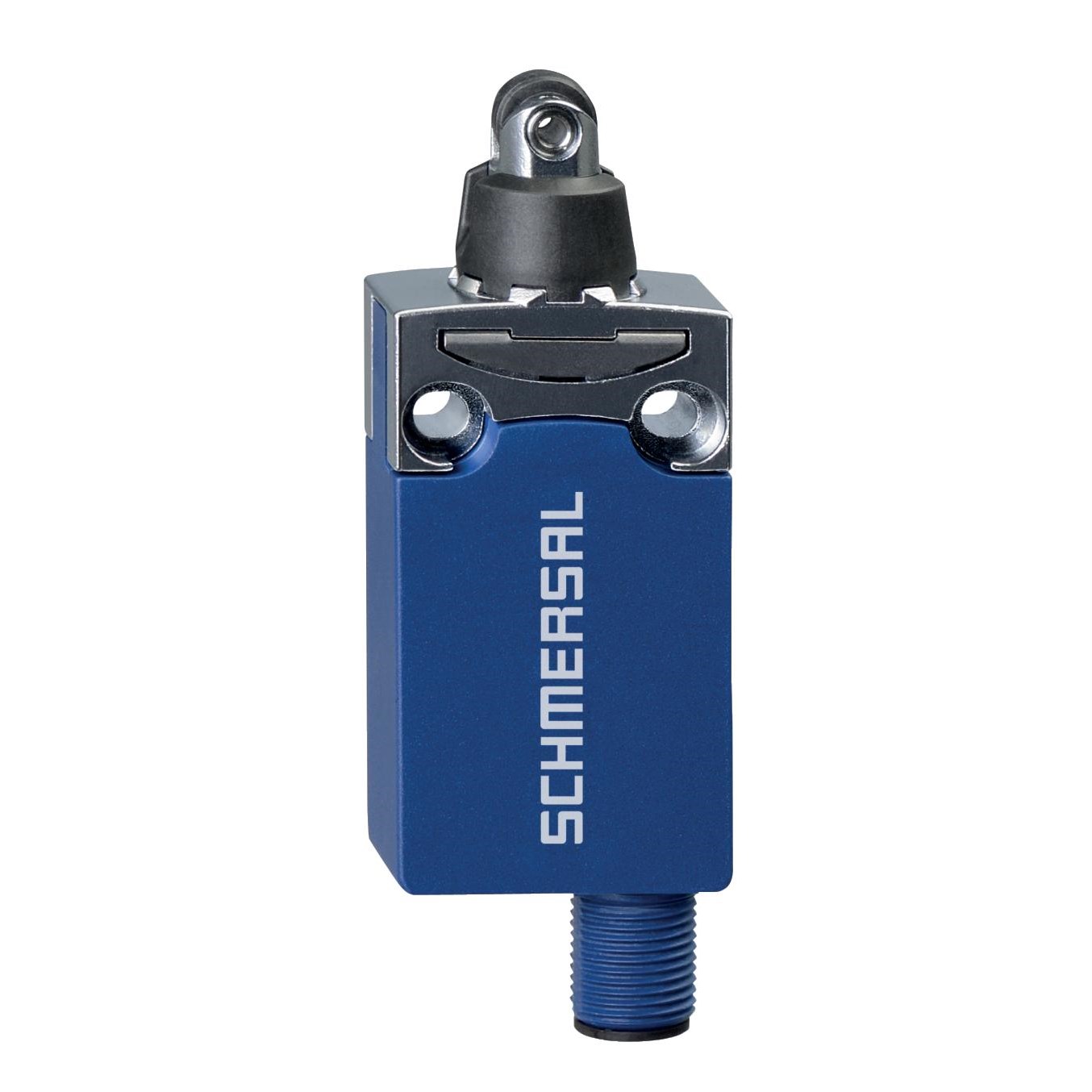

Schmersal 103006653 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006653

  • Rated for 240 VAC and 1.5 A.
  • Durable with 10 million cycles.
  • IP66/IP67 protection for harsh environments.
  • Operates in -30 to 80°C temperature range.
  • Snap action with roller plunger actuator.
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Series PS116
Action Snap Action
Actuating Element Roller Plunger
Actuating Speed 10 mm/min
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP66, IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 10000000 Cycles
Operational Temperature -30 to 80 deg C
Rated Current 1.5 A
Rated Frequency 5000/h
Rated Insulation Voltage 300 V
Rated Voltage 240 VAC
Sensor Size 16.6 mm L x 31 mm W x 74.1 mm H
Standards and Approvals CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Weight 140 g

Description

Explore the Schmersal PS116 Series Position Switch, a robust machine safety solution featuring a thermoplastic enclosure designed for durability. This switch includes a roller plunger actuating element R200 and offers reliable snap action switching with both NO and NC contacts. It is equipped with one auxiliary contact and one safety contact, ensuring secure operations. With a thermal test current of 2.5 A, it can handle utilisation categories AC-15 at 240 VAC and 1.5 A, as well as DC-13 at 24 VDC and 1.5 A, making it versatile for various applications. Trust in the Schmersal brand for your machine safety needs with this precision-engineered position switch.
