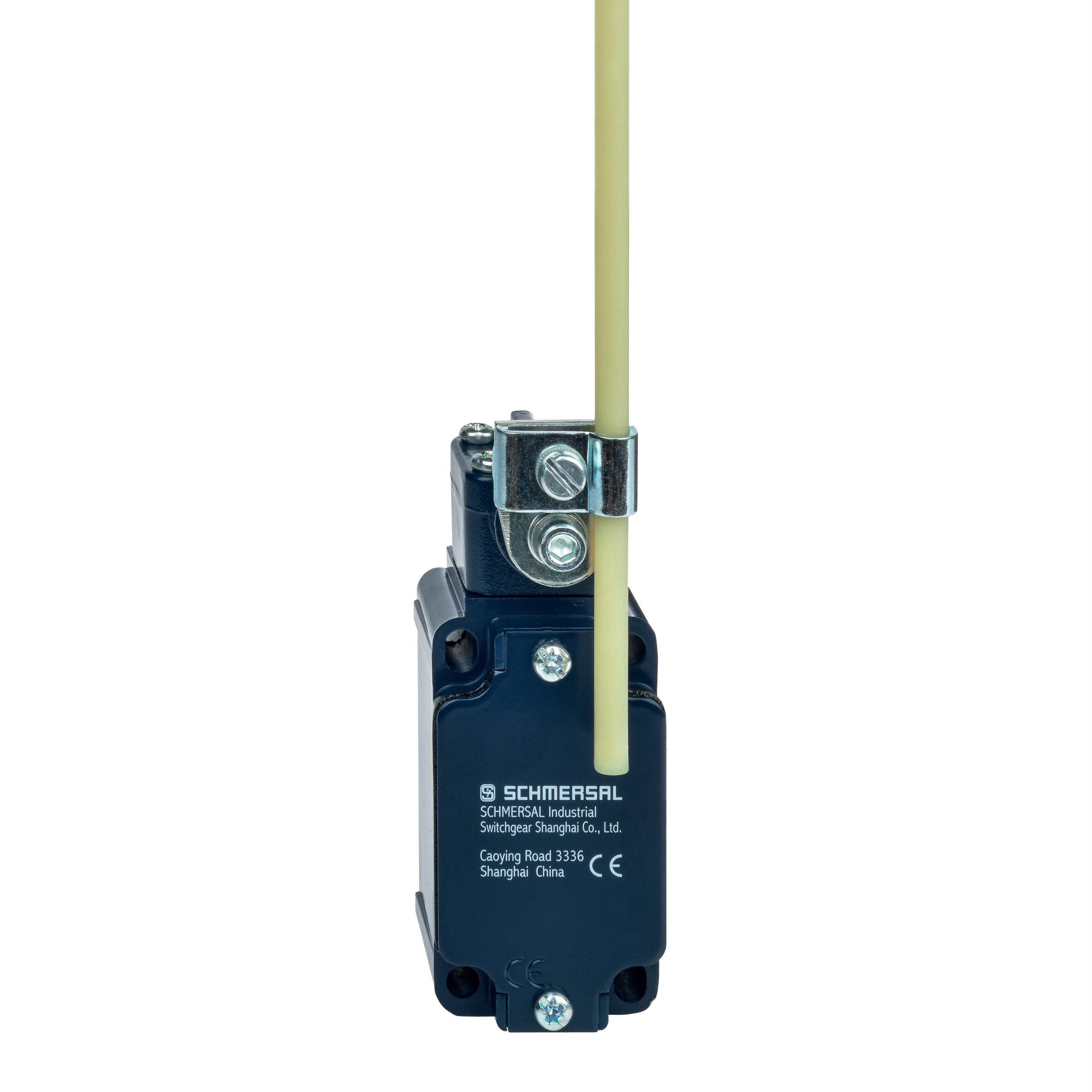

SCHMERSAL T4V10H 335-20Z POSITION SWITCH WITH SAFETY FUNCTION 101082578

Product Code: 101082578

Technical Specifications

Brand SCHMERSAL
Actuating Element Rod Lever
Contact Material Silver
Degree of Protection IP67
Enclosure Coating Material Painted
Housing Material Light Alloy Die-casting
Lever Material Metal Film
Maximum Actuating Speed (m/s) 2.5
Maximum Ambient Temperature (°C) 80
Maximum Bounce Duration (ms) 2
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 6 A gG D-fuse
Minimum Ambient Temperature (°C) -30
Minimum Cable Cross Section (mm²) 0.75
Minimum Mechanical Life 30000000 Operations
No. of Auxiliary Contacts 2
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Operational Current AC-15 (A) 4
Rated Operational Current DC-13 (A) 4
Rated Operational Voltage AC-15 (V) 230V AC
Rated Operational Voltage DC-13 (V) 24V DC
Rated Short-circuit Current (A) 1000
Rod Material Plastic
Sensor Length (mm) 38
Sensor Width (mm) 40.5
Standards and Approvals EN ISO 13849-1
Switching Element NO Contact
Switching Frequency 5000/h
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 10
Utilisation Category DC-13
