Specifications

Maximum Cable Cross Section (mm²)	2.5
Rated Insulation Voltage (V)	500
Rated Impulse Withstand Voltage (kV)	6
Utilisation Category	DC-13
Maximum Ambient Temperature (°C)	80
Minimum Cable Cross Section (mm²)	0.75
Maximum Actuating Speed (m/s)	2.5
Rated Operational Current AC-15 (A)	4
Rated Operational Current DC-13 (A)	4
No. of Safety Contacts	1
Thermal Test Current (A)	10
Minimum Ambient Temperature (°C)	-30
Termination	Screw Terminals M20 x 1.5
Standards	EN ISO 13849-1
Sensor Length (mm)	52
No. of Auxiliary Contacts	1
Switching Principle	Slow Action
Switching Frequency	5000/h
Sensor Width (mm)	40.5
Rated Short-circuit Current (A)	1000
Minimum Mechanical Life	30000000 Operations
Maximum Fuse Rating	6 A gG D-fuse
Switching Element	NO Contact, NC Contact
Lever Material	Metal Film
Maximum Bounce Duration (ms)	2
Rod Material	Plastic
Rated Operational Voltage AC-15 (V)	230V AC
Rated Operational Voltage DC-13 (V)	24V DC

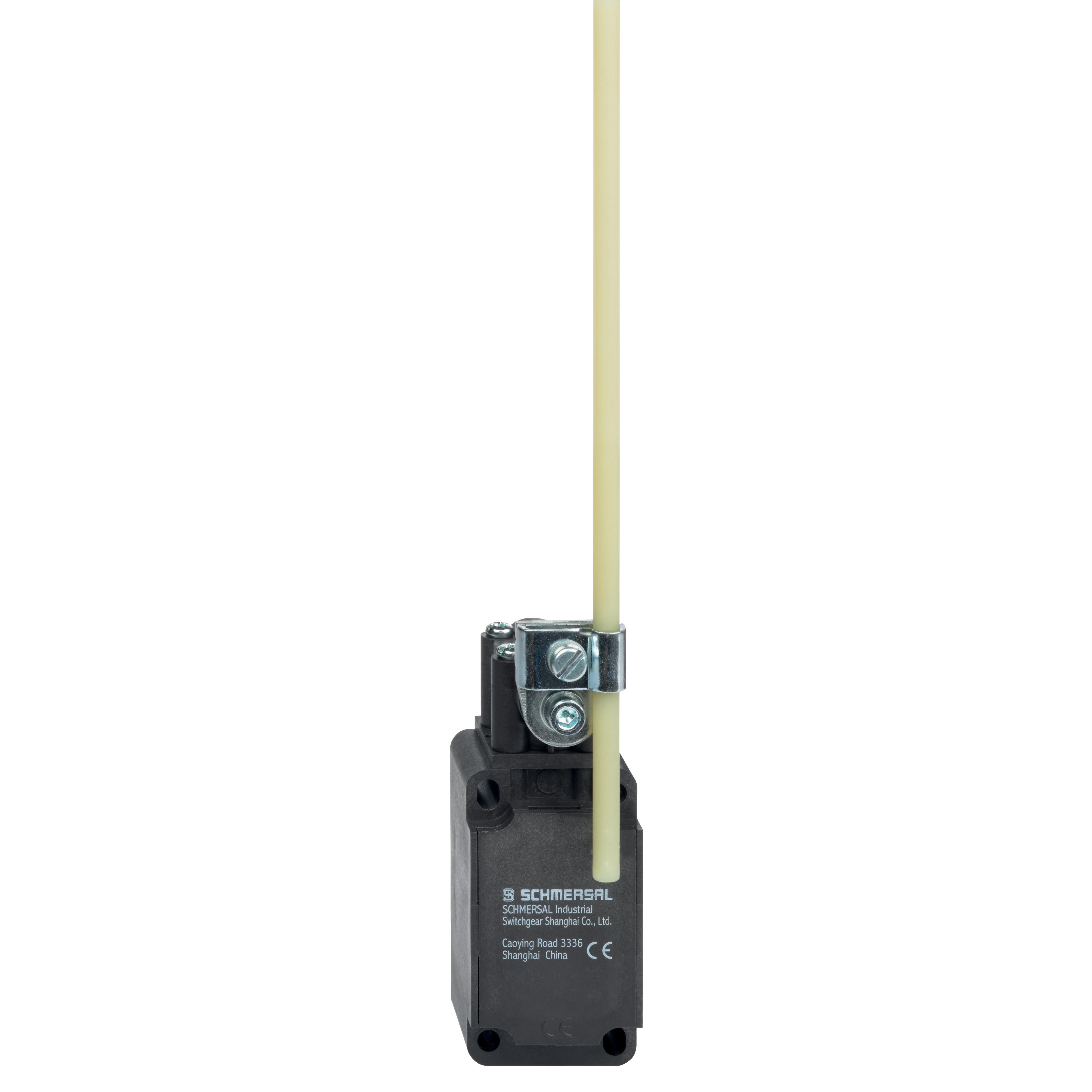

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Action	Slow Action
Actuating Element	Rod Lever
Actuating Speed	2.5 m/s
Actuator Type	D - According to EN 50041
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	30000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	4 A
Rated Frequency	5000/h
Rated Insulation Voltage	500 V
Rated Voltage	230 VAC, 24 VDC
Sensor Size	52 mm L x 40 mm W
Standards and Approvals	EN ISO 13849-1
