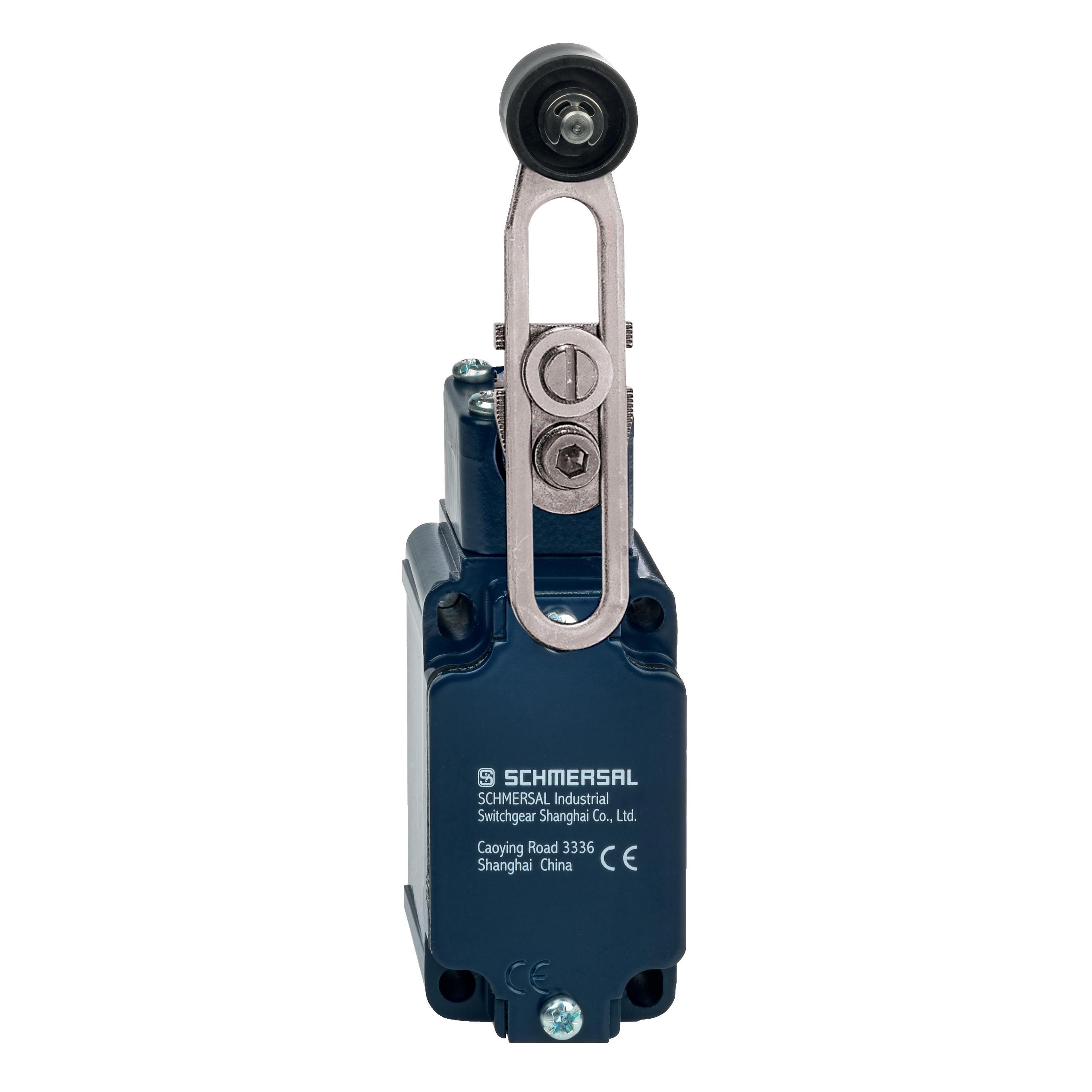

Schmersal 101172022 Position Switch with Safety Function Roller Lever 1NO-1NC Die Cast Light Alloy Silver Contact

Product Code: 101172022

  • Rated for 230 VAC, 4 A
  • Durable die-cast light alloy housing
  • IP65/IP67 protection against dust and water
  • Complies with multiple international standards
  • Roller lever actuator with slow action switching
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Series 335
Actuating Speed 2.5 m/s
Actuator Type Roller Lever
Cable Cross Section 0.75 sq-mm
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP65, IP67
Housing Material Die Cast Light Alloy
Mechanical Life 30000000 Operations
Number of Auxiliary Contacts 1
Rated Current 4 A
Rated Voltage 230 VAC
Standards and Approvals BG-GS-ET-15, CCC, cULus, EC000030, ENIEC 60947-5-1, ENISO 13849-1
Switching Type Slow Action
Weight 270 g

Description

Discover the Schmersal Series 335 Position Switch, a robust machine safety solution designed with a durable metal enclosure. This switch features a roller lever actuating element and offers both NO and NC contact switching elements. It is rated for a thermal test current of 10 A and meets utilisation categories AC-15 at 230 VAC, 4 A, as well as DC-13 at 24 VDC, 4 A. Engineered for reliability in safeguarding machinery operations, the Series 335 is an essential component for any safety-conscious engineering project.
