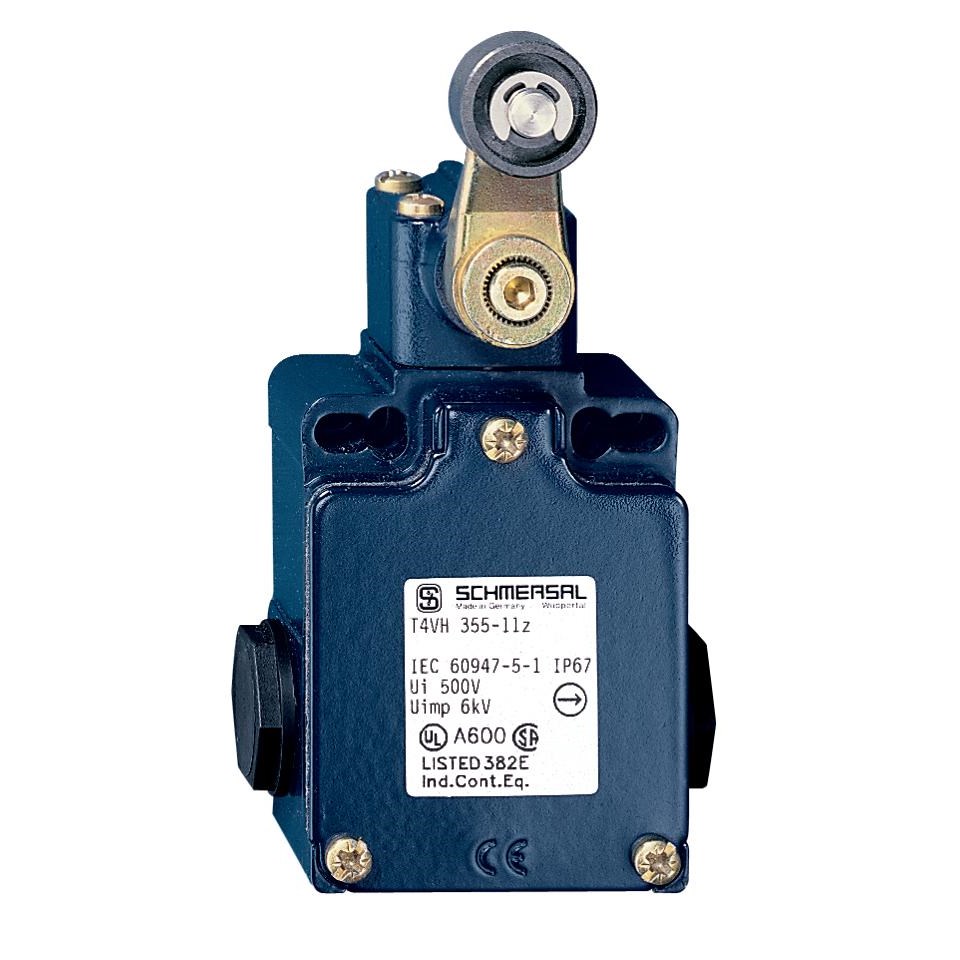

Schmersal 101174059 Position Switch with Safety Function 230VAC 1NO+1NC

Product Code: 101174059

  • Rated for 230 VAC and 4 A
  • Durable die-cast light alloy housing
  • High protection: IP65 & IP67 rated
  • Long lifespan: 30 million cycles
  • Operates in -30 to 80°C range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Product Type Position Switch with Safety Function
Brand SCHMERSAL
Series 355
Action Slow Action
Actuating Element Roller Lever
Actuating Speed 2.5 m/s
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP65, IP67
Housing Material Die Cast Light Alloy
Mechanical Life 30000000 Cycles
Operational Temperature -30 to 80 deg C
Rated Current 4 A
Rated Frequency 5000/h
Rated Insulation Voltage 500 V
Rated Voltage 230 VAC
Sensor Size 60.6 mm L x 66.7 mm W x 129.5 mm H
Standards and Approvals BG-GS-ET-15, CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Weight 310 g

Description

The Schmersal Series 355 position switch is a robust machine safety component housed in a metal enclosure, designed to ensure reliable operation in various industrial settings. This switch features a roller lever actuating element and offers both normally open (NO) and normally closed (NC) contacts to accommodate diverse application needs. It has a thermal test current of 10 A and meets utilisation category AC-15 with a rating of 230 VAC at 4 A, as well as DC-13 with a rating of 24 VDC at 4 A. Engineered for precision and durability, the Series 355 position switch is an essential device for machinery where safety and performance are paramount.
