Specifications

Maximum Cable Cross Section (mm²)	4
Rated Insulation Voltage (V)	500
Rated Impulse Withstand Voltage (kV)	6
Utilisation Category	AC-15
Maximum Ambient Temperature (°C)	90
Minimum Cable Cross Section (mm²)	1.5
Maximum Actuating Speed (m/s)	3
Rated Operational Current AC-15 (A)	10
Thermal Test Current (A)	25
Minimum Ambient Temperature (°C)	-30
Termination	Screw Terminals M20 x 1.5
Sensor Length (mm)	190
Actuating Angle	30° - From Left of Switch Axis, 30° - From Right of Switch Axis
Switching Principle	Slow Action
Switching Frequency	1000/h
No. of Normally-open Contacts	1 (Right), 2 (Left)
No. of Normally-closed Contacts	2 (Right)
Sensor Width (mm)	194
Sensor Height (mm)	143
Minimum Mechanical Life	1000000 Operations
Castor Diameter (mm)	36
Minimum Actuating Speed (mm/min)	0.05
Maximum Fuse Rating	16 A gG D-fuse
Castor Width (mm)	9
Switching Element	NO Contact / NC Contact
Contact Opening (mm)	2 x 4
Rated Operational Voltage AC-15 (V)	230V AC
Castor Material	Plastic

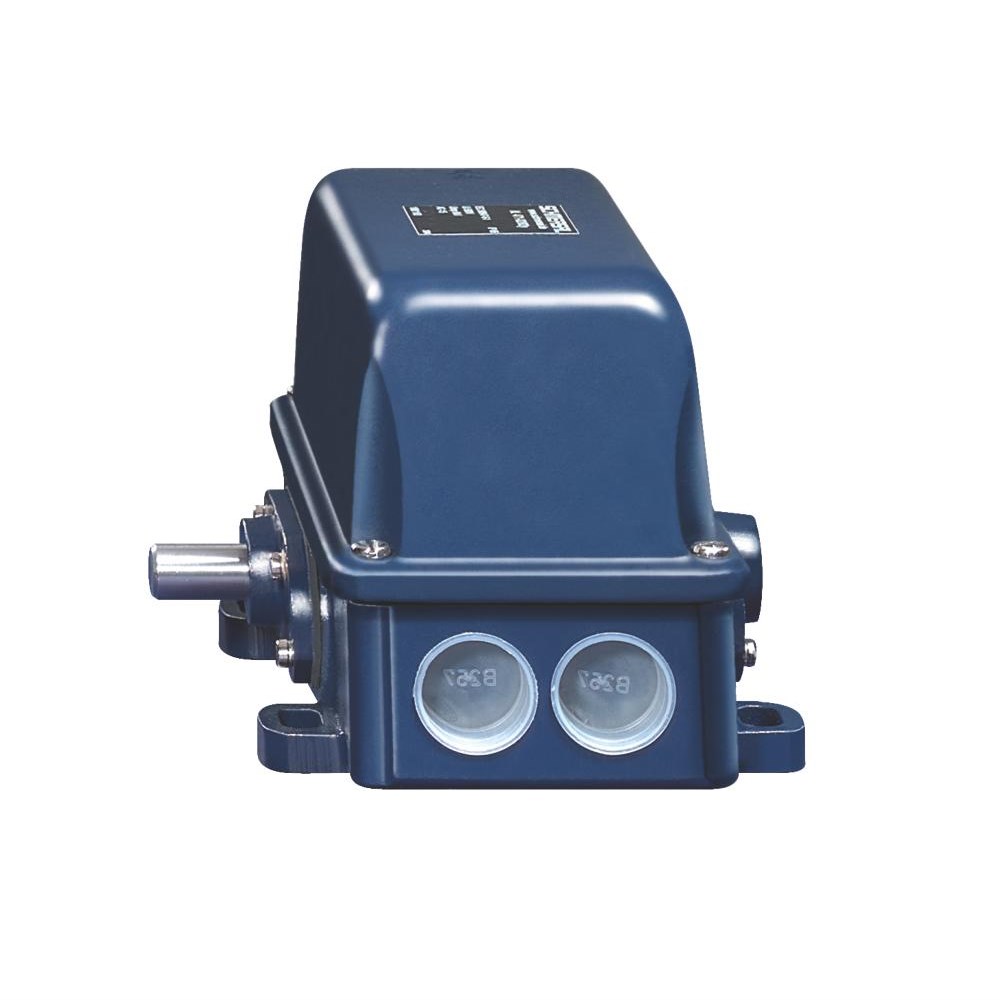

Product Type	Position Switch
Brand	SCHMERSAL
Actuating Element	Roller Lever
Actuating Speed	3 m/s
Actuator Type	Roller Lever
Cable Cross Section	1.5 sq-mm
Contact Configuration	1NO+1NC
Contact Material	Silver
Contact Opening	(2) 4 mm
Degree of Protection	IP65
Enclosure Coating Material	Painted
Fuse Rating	16 A gG D-Fuse
Housing Material	Grey Cast Iron, Galvanized
Mechanical Life	1000000 Operations
Rated Current	10 A
Rated Voltage	230 VAC
Standards and Approvals	ENIEC 60947-5-1
Switching Type	Slow Action
