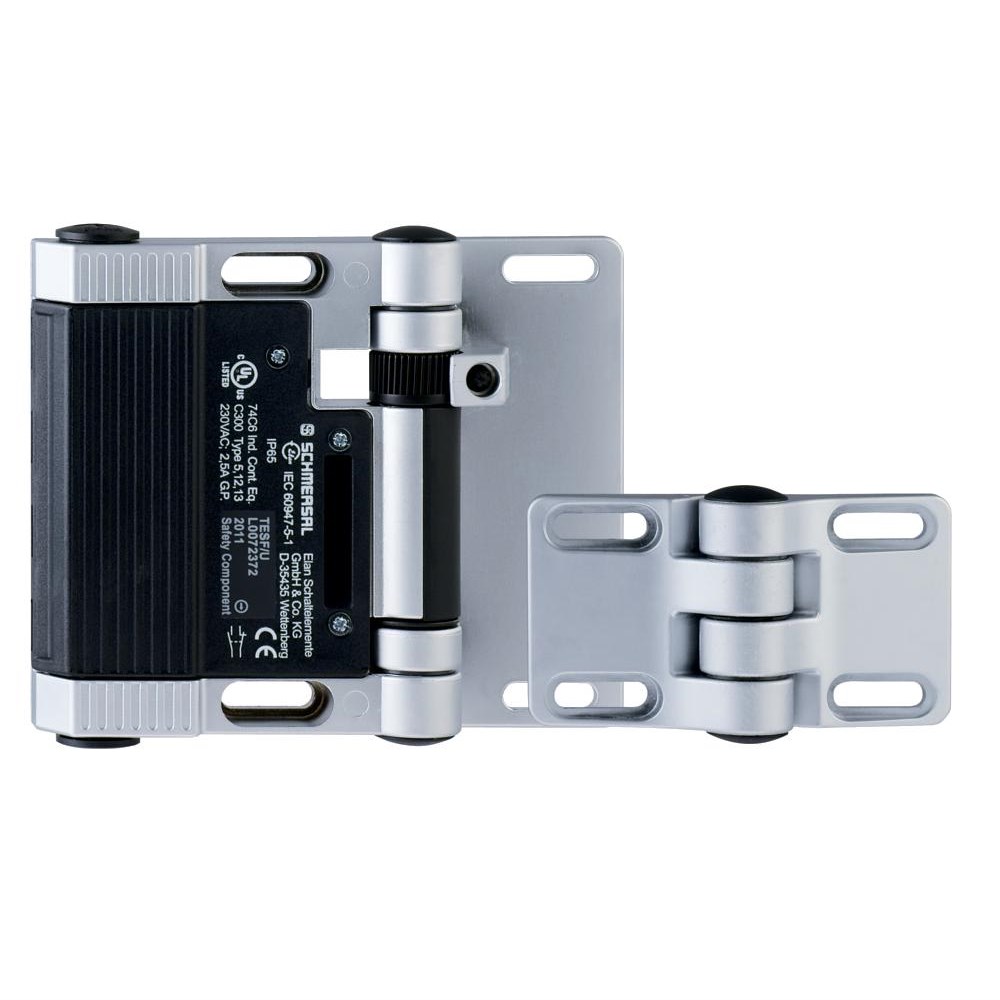

Schmersal 101182694 Safety Hinge Switch 230VAC 1NO+1NC

Product Code: 101182694

  • Rated 4A, 230VAC for reliable performance
  • Durable die-cast zinc metal housing
  • IP65 protection against dust and water
  • Long lifespan with 1 million mechanical cycles
  • Operates in -25 to 65°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 65
Minimum Temperature (°C) -25
Product Type Safety Hinge Switch
Brand SCHMERSAL
Series TESF
Action Slow Action
Contact Configuration 1NO+1NC
Contact Material Silver Nickel Alloy
Degree of Protection IP65
Housing Material Metal, Die Cast Zinc
Mechanical Life 1000000 Cycles
Operational Temperature -25 to 65 deg C
Rated Current 4 A
Rated Frequency 1200/h
Rated Insulation Voltage 250 V
Rated Voltage 230 VAC
Sensor Size 21.5 mm L x 141 mm W x 115 mm H
Standards and Approvals CCC, cULus, EC002591
Weight 840 g

Description

Enhance your machine safety with the Schmersal TESF Series Safety Switch. This robust metal-enclosed hinge safety switch features an adjustable switching angle for precise operation and includes an additional hinge for versatile installation. Equipped with two auxiliary contacts and two safety contacts, it ensures reliable connectivity through its screw connection terminal. The switch's NO and NC contact elements are designed to handle a thermal test current of 2.5 A. Optimized for performance, it operates efficiently with a utilization category AC-15 rating at 230 VAC, 2 A, and a DC-13 rating at 24 VDC, 1 A. Trust in Schmersal's commitment to machine safety with this dependable safety switch solution.
